DISH 1000.4
• Views 61.5°, 72.7°, and 77°.
• Uses DP Plus 1000.4 LNBF with three receiver output ports.
• A fourth orbital location can be added using the DPP EA LNBF’s LNB I
N port.
The LNB I
N port is disabled when the LNBF is connected to a switch.
• The default output of the receiver ports is 77° on Port 1, 72.7° on Port 2, and
61.5° on Port 3. Peak the dish antenna on 72.7°, connecting the peaking
meter to Port 2.
• Run two Check Switch tests for the receivers to properly recognize the DP
Plus LNBF. One is run when the receiver is initially connected; the second
Check Switch test is run after the initial software download.
• LNBF and Bracket include a “keying” feature to help ensure only 1000.4 parts are
used together.

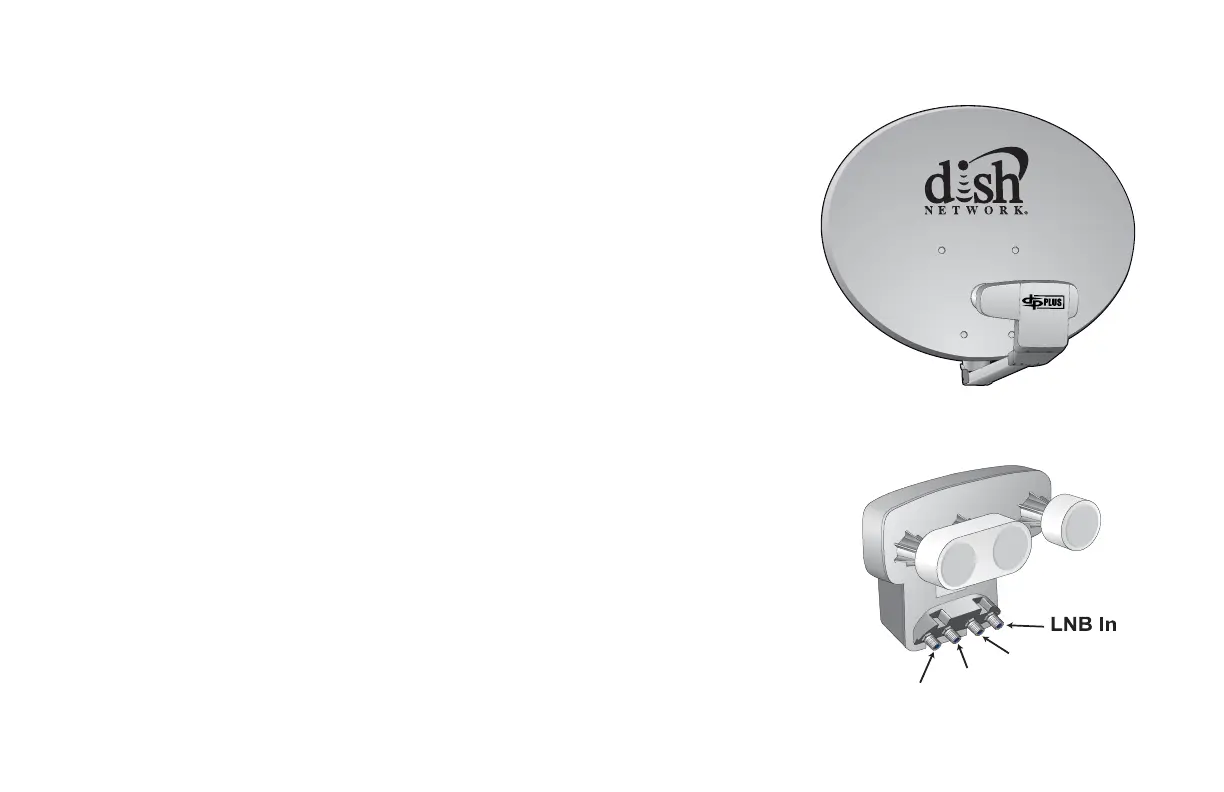

1000.4 Dish Antenna
77°
72.7°
61.5°
77°
72.7°
61.5°
1000.4 LNBF
