Control Output Type ECY IO mod-
ules’ Output
Designation

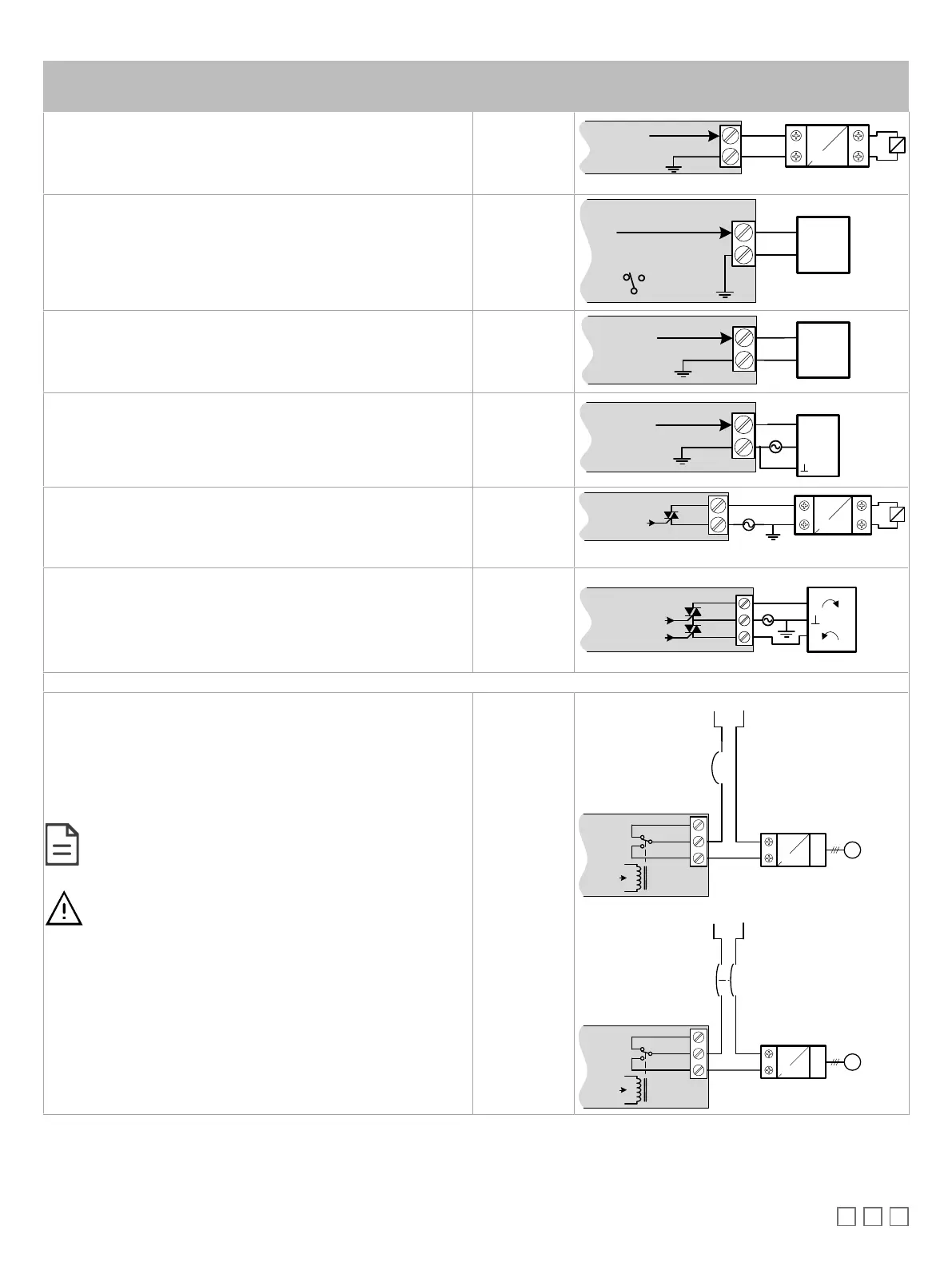

Output Connection Diagram
£ Discrete 0 or 12VDC digital, Pulse, or PWM output controlling a
12VDC relay. Maximum 60 mA (minimum load resistance 200Ω).
£ UOx
From
Digital
Output
12VDC Relay
A1
A2
UOx
COM
£ 0 to 20mA current output – set the DIP switch to 0-20mA.
£ See DIP Switch and Jumper Identification and Configuration on page
5 for more information about how to set the DIP Switch.
£ UOx
0-20mA
Common
From Digital-To-
Analog Output
UOx
COM
Current Output
Option Enabled
£ 0 to 10VDC voltage output. £ UOx
0-10V
Common
From Digital-
To-Analog
Output
UOx
COM
£ 0 to 10VDC voltage output controlling an analog actuator that is pow-
ered by an external 24VAC power source.
£ UOx
0-10V
~ or +
From Digital-
To-Analog
Output
UOx
COM
Actuator
or -
24VAC
£ 24VAC externally-powered triac output controlling a relay
1
. £ DOx
(DOT
model)
From
Control
Logic
24VAC Relay
A1
A2
DOx
Cx-x
AC
£ 24VAC externally-powered triac output controlling a floating actuator
1
. £ DOx
(DOT
model)
DOx
Cx-x
Actuator
~
DOx
~
24VAC
From
Control
Logic
1. Maximum output current for all digital triac outputs is 0.5A continuous or 1A @ 15% duty cycle for a 10-minute period.
£ Line voltage powered form-C relay output, 0-277VAC / 0-30 VDC, 10A
maximum. For example, 120/240VAC controlling a 3 phase motor
contactor.
£ The line voltage must to be protected by a 10A Circuit breaker to pro-
tect the relay contact output against short circuit/overload conditions.
£ A single 10 amp circuit breaker can be used to protect two or more re-
lay outputs if all connected loads are on the same phase and the total
maximum current to all loads is less than 10A.
SELV circuit cannot be used on a relay output next to another relay
output used with Hazardous voltages (120-240VAC for example).
A Line-to-Line power source can be used only if the maximum Line-
to-Neutral Voltage is less than 120VAC.
£ DOx
(DOR
model)
3 Ø Contactor
A1
A2
NCx
Cx
NOx
From
Control
Logic
M
Line-to-Neutral AC Power Source
Circuit
Breaker, 10 A
Maximum
NeutralLine
3 Ø Contactor
A1
A2
NCx
Cx
NOx
From
Control
Logic
M
Line-to-Line AC Power Source
Neutral
LineLine
Double Circuit
Breaker, 10 A
Maximum
Table2: ECY IO Module Output Wiring
