Unit Components
CMW
Unit Components
Operator Orientation
Right and left sides of machine are determined by
facing front (toward lift arms) of unit while seated in the
operator’s station.

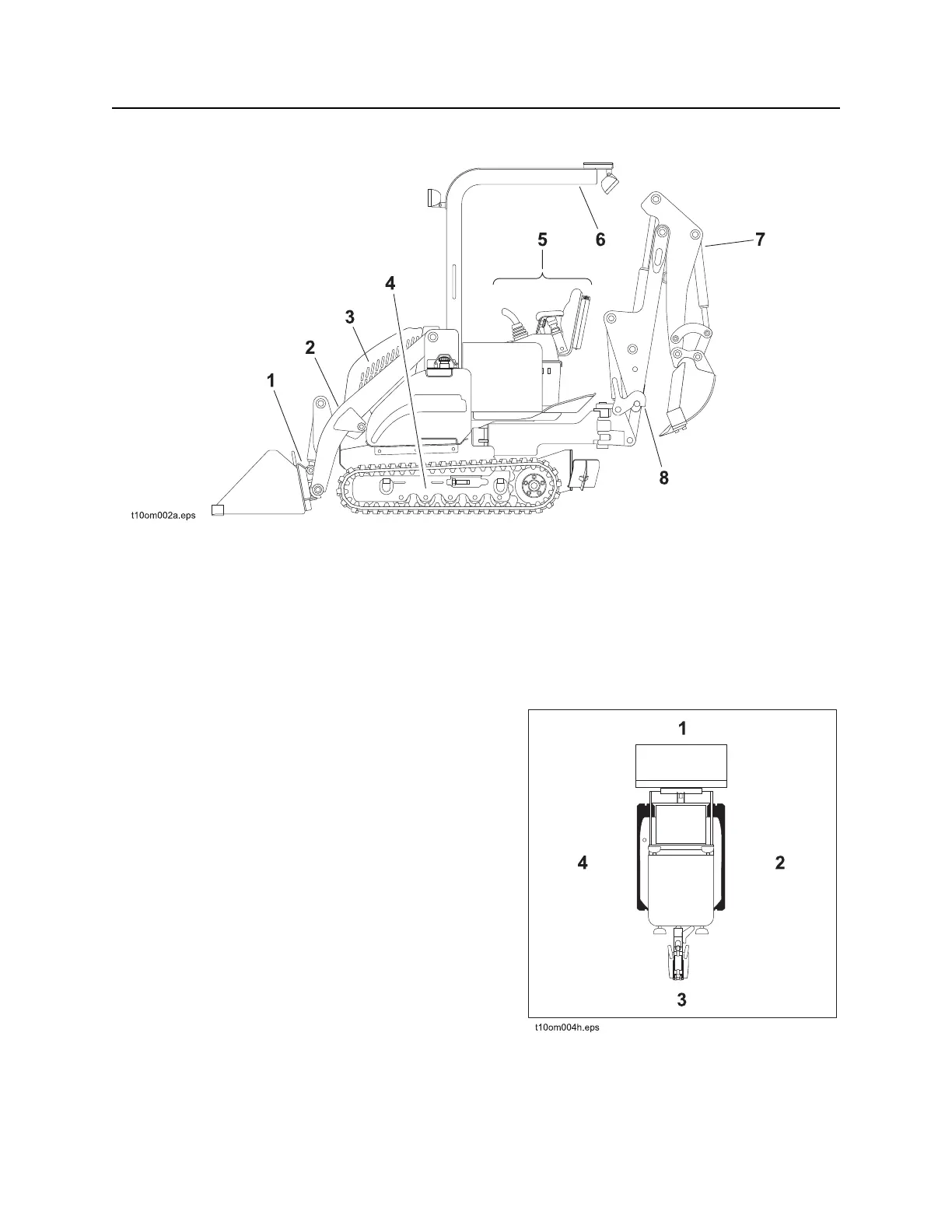

1. attachment receiver plate
2. lift arms
3. engine compartment
4. tracks
5. operator’s station
6. ROPS/FOPS
7. excavator
8. excavator stow lock
1. Front of unit
2. Right of unit
3. Rear of unit
4. Left of unit
