XT855 Operator’s Manual Dig - 63
Setup
CMW

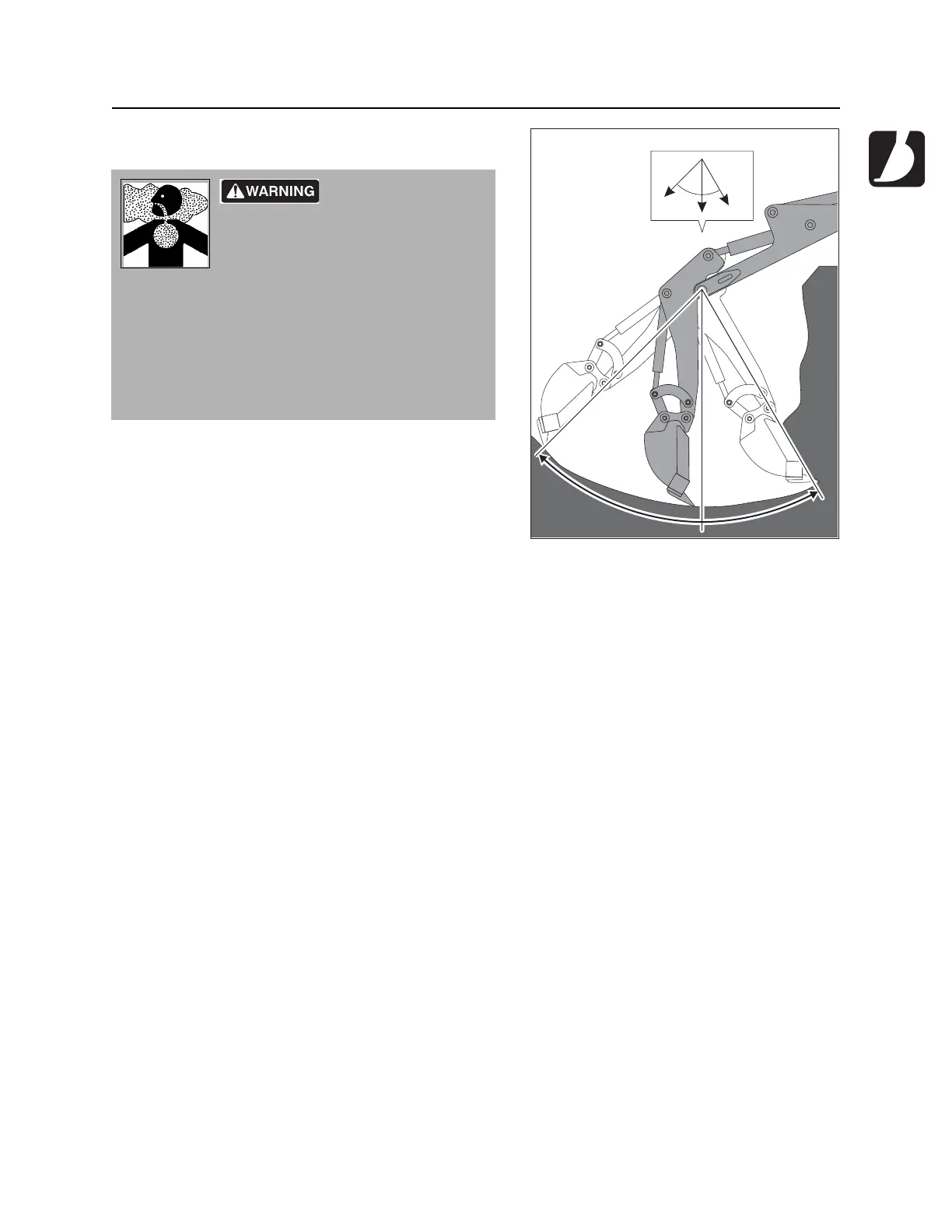

Filling Bucket
Use right and left joysticks to control excavator dipper,
boom, and bucket.
1. Keep dipper and boom at right angles as much as
possible for maximum power.
2. Keep bucket in line with dipper as much as
possible.
3. Position bucket so teeth cut soil. As soil is cut, curl bucket under dipper.
4. Move dipper and bucket together. Increasing engine speed will increase excavator speed but not
excavator force.
5. When job is finished, stow excavator, pivot seat to face tool carrier end, switch unit into tool carrier
mode and drive away from area.
Jobsite hazards could
cause death or serious injury. Use
correct equipment and work methods.
Use and maintain proper safety
equipment.
NOTICE: Cutting or drilling concrete containing sand
or rock containing quartz may result in exposure to
silica dust. Use respirator, water spray or other
means to control dust. Silica dust can cause lung
disease and is known to the State of California to
cause cancer.
t10om058h.eps
45°
30°
