XT855 Operator’s Manual Systems and Equipment - 69
Excavator Control Pattern
Operate Controls
IMPORTANT: ISO excavator control pattern is shown. For information about SAE control pattern, see
“Joysticks” on page 28.

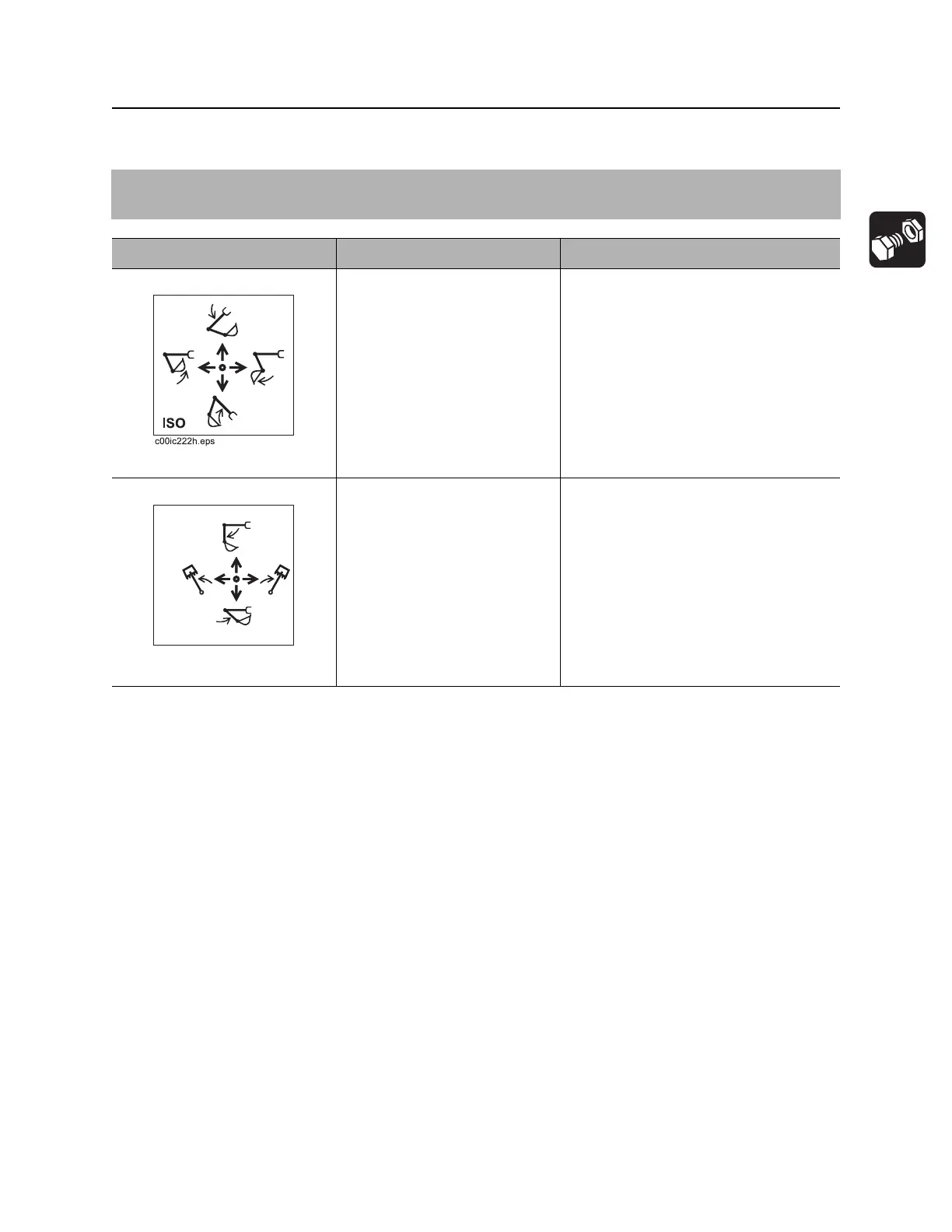

Item Description Notes
Right joystick With work mode switch in
excavator mode:
• To open bucket, move
right.
• To close bucket, move
left.
• To raise boom, pull.
• To lower boom, push.
Left joystick With work mode switch in
excavator mode:
• To swing excavator to
right, move right.
• To swing excavator to left,
move left.
• To move dipper in, pull.
• To move dipper out, push.
ISO
c00ic220h.eps
