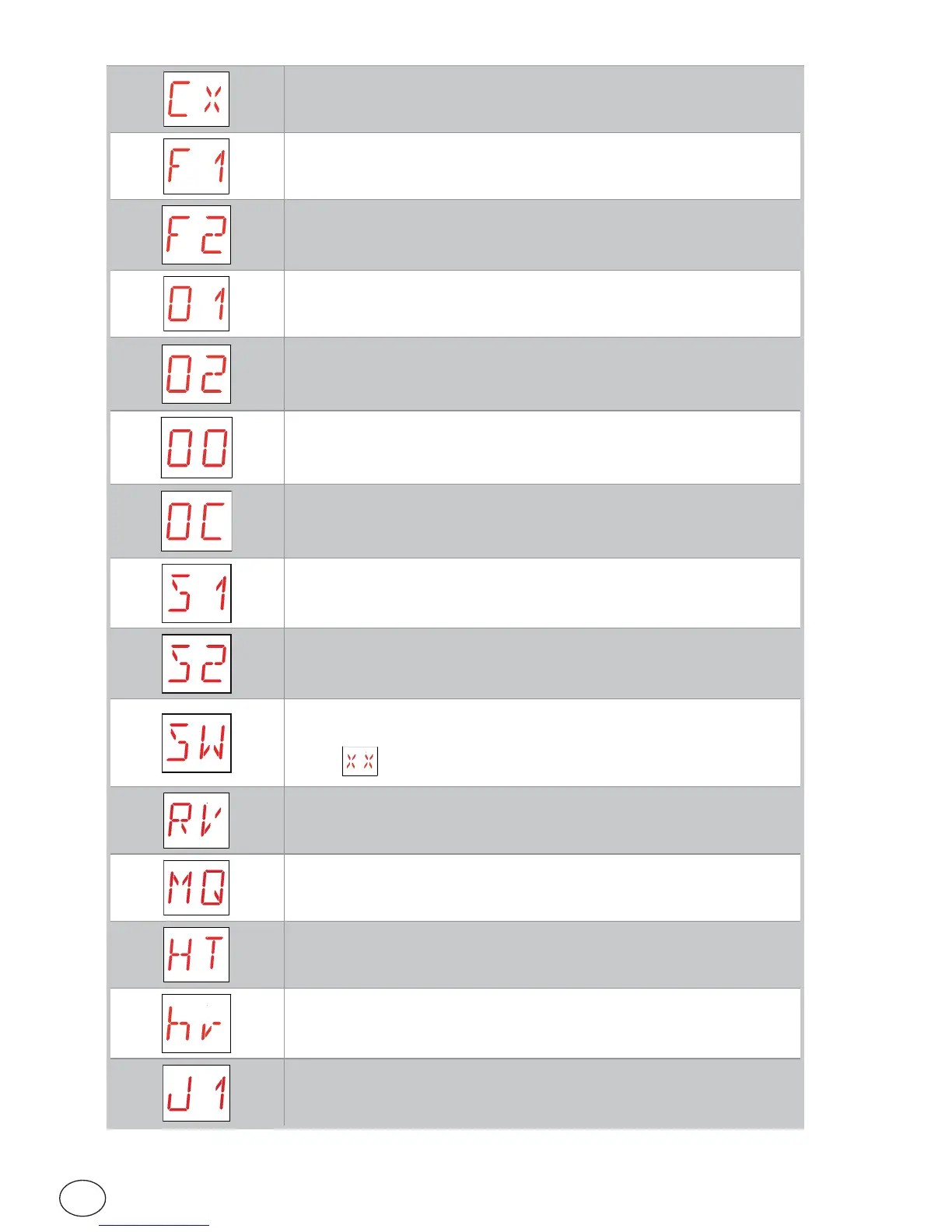

CX - Receipt of command from AUX card.
F1 - Closing limit switch
F2 - Opening limit switch
O1 - Detection of an obstacle during closing
O2 - Detection of an obstacle during opening
OO - Reaching of obstacle detection limit during opening
OC - Reaching of obstacle detection limit during closing
S1 - Detection of stop during closing
S2 - Detection of stop during opening
SW - Release door open.
When the release door is closed, the control panel performs a RESET
(alarm )
RV - Enabling/disabling of built-in radio receiver via JR3.
MQ - Learning operation of mechanical end stops in progress.
HT - Heating of the motors (NIO function) in progress.
hr - Indicates OPERATOR PRESENT mode (hold to run).
J1 - Variation of the JR1 jumper status.
