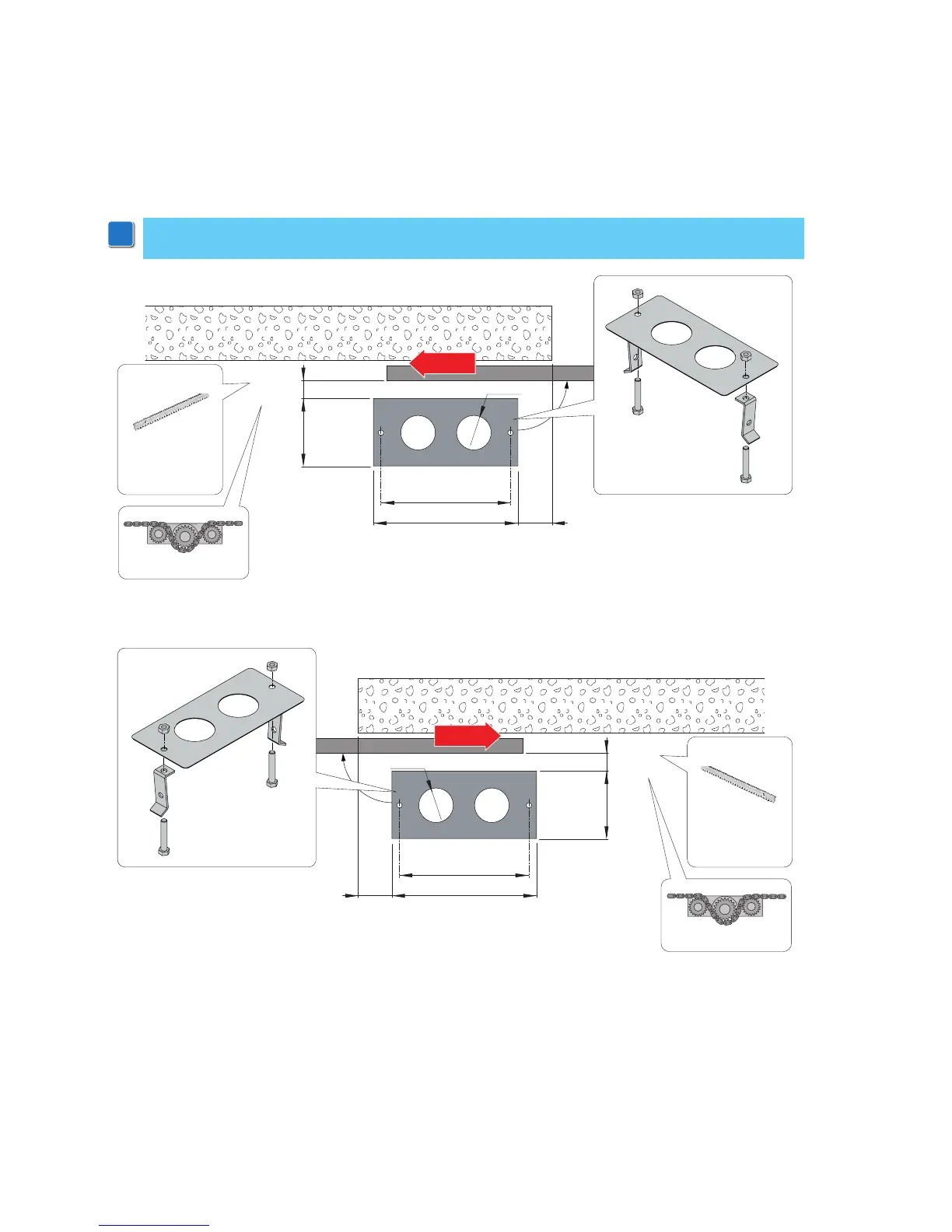

7.2 Base plate position
- Insert the anchor ties onto the base plate and fix them with the supplied nuts.
- Make a concrete base with the anchor ties and base plate embedded, which must be level and
clean, following the measurements indicated in the diagram.
i
NOTE: If the concrete base is already present, fix the base plate with expansion bolts M8 (not supplied)
to allow height adjustment.
OPENING
130
X+20 [*]
70[**]
min
150
Ø50x2
90°
240
270
[*] CROSSCRI
X=40
[**]
OPENING
130
X+20 [*]
70[**]
min
60
Ø50x2
90°
240
270
[*] CROSSCRI
X=40
[**]
