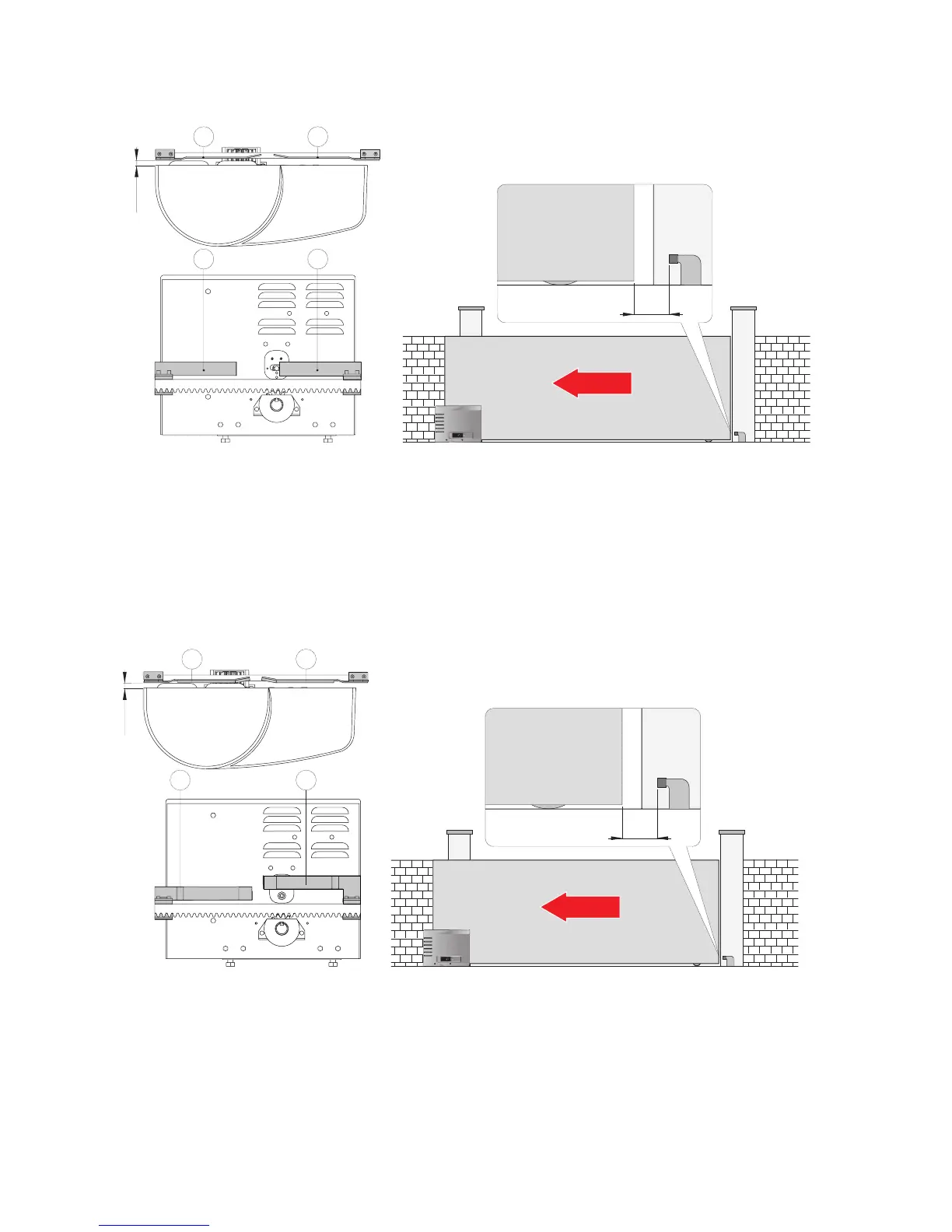

7.5 Lever stop installation and adjustment
7.6 Magnetic limit switches installation and adjustment
- Manually place the wing in the completely open position and fix the limit switch bracket [B] onto
the rack so that the upper lever stop exceed for 2/3 times the length of the bracket. Repeat the
operation with the wing fully closed.
- After having carried out a few manoeuvres, adjust the position of the limit switch bracket [B] so
that the gate stops about 20 mm before the opening and closing stop
- Manually place the wing in the completely open position and fix the stop bracket [A] onto the rack
so that the upper lever stop exceed for 2/3 times the length of the bracket. Repeat the operation
with the wing fully closed.
- After having carried out a few manoeuvres, adjust the position of the limit switch bracket [A] so
that the gate stops about 20 mm before the opening and closing stop.
