7.7 Rotary stop adjustment

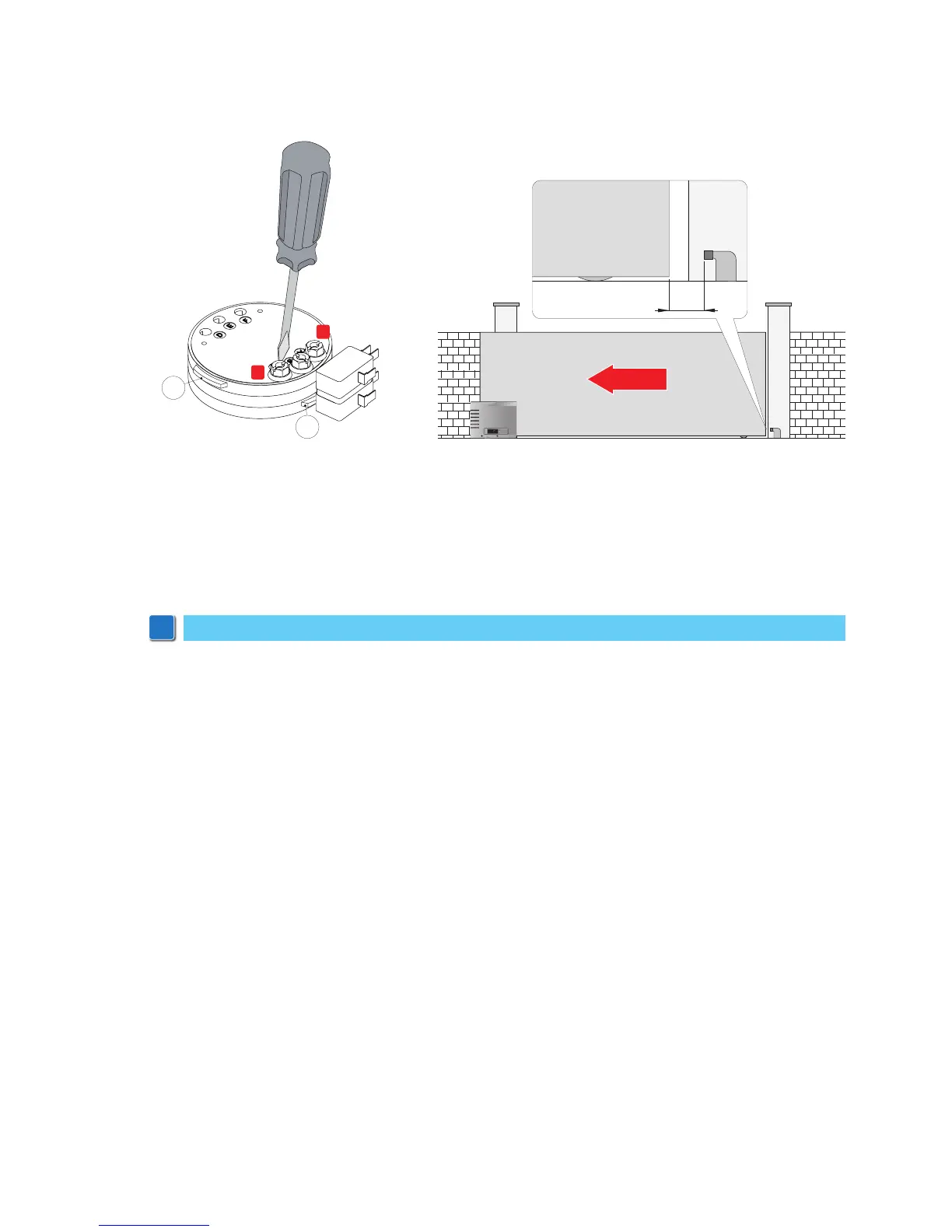

- With the gate open, turn the screw [A] so that cam [MA] activates the opening microswitch.
- With the gate closed, turn the screw [C] so that cam [MC] activates the closing microswitch.
NOTE: with the gate opened to the left (gearmotor side view) the microswitches are inverted [A]
for closing [C] and opening.
- Adjust [A] and [C] so that the activation of the limit switch stops the gate approximately 20 mm
before the stop.
OPENING
~20
MC
MA
A
C
i
NOTE: make sure this occurs after having performed several operations.
