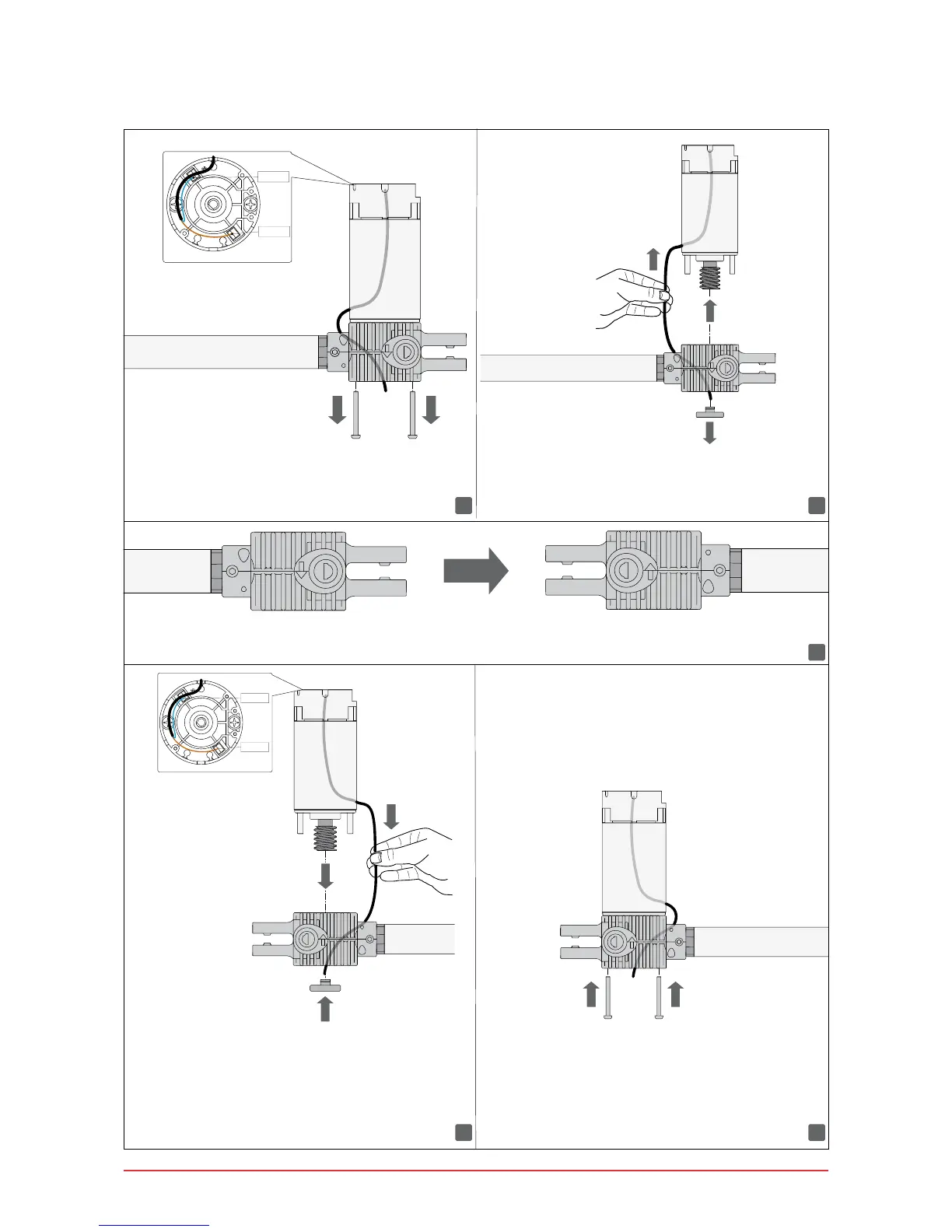

- If the gearmotor opening direction needs to be modied, proceed as shown in the gure (example of motor
transformation with opening direction from right to left).
blue
brown
180°
blue
brown
Fig. 5
1
2
3
4
5
• Loosen the motor fastening screws.
• With the reduction gear rotated, insert the
motor and cap, and insert the cable.
WARNING: the motor must be assembled so
that the cable remains on the side opposite
the release
• Extract the motor and the reducer cap and
unthread the motor cable.
• Insert and x the motor fastening screws.
• Rotate the reduction gear by 180°.
