1592022550 Quick reference guide IC100CX GB rel.1.0 03/03/2008 Page 10 di 39
16.2 Remote keyboard
Remote terminal “Vertical” shape

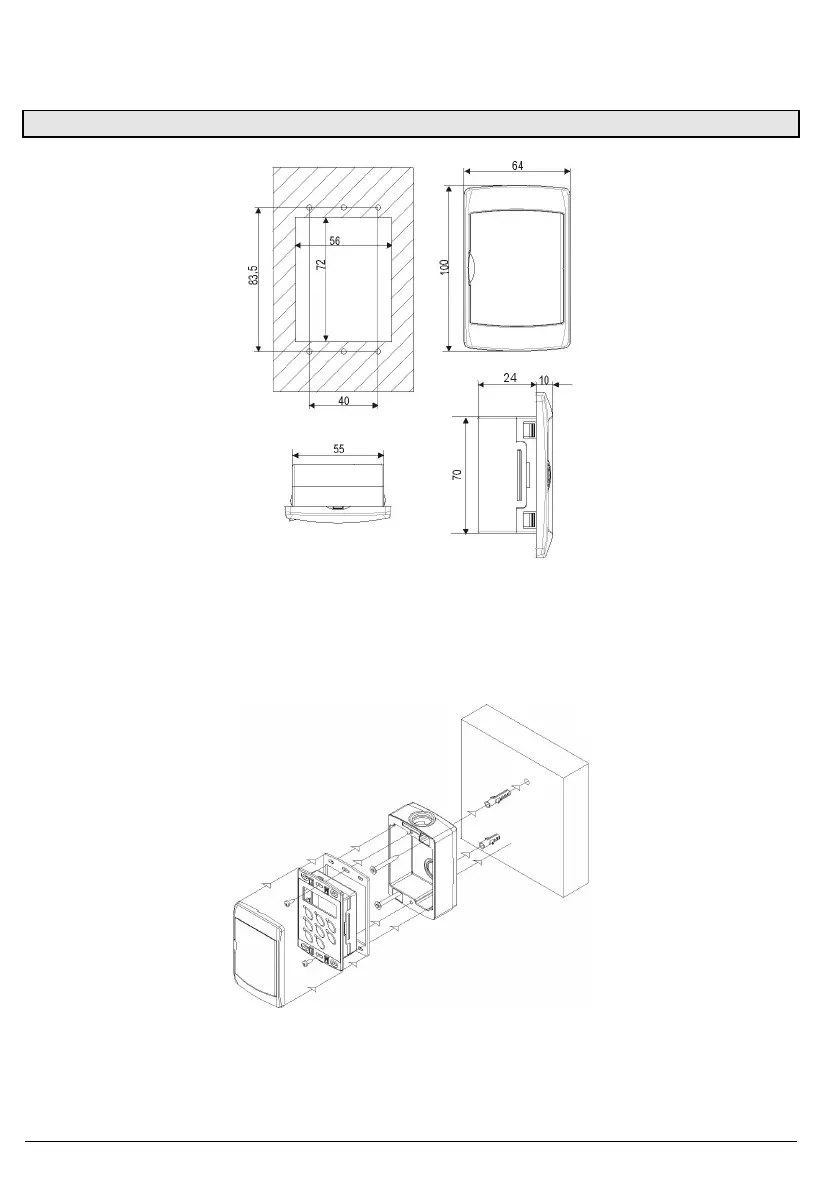

Mounted on a panel with 72x56 mm cut-out, fixed with screw.
To obtain the IP65 protection, even for the panel, use the rubber gasket RGW-V (optional). For wall mounting use the V-KIT plastic
adapter as illustrated in figure 2.
Fig. 2
The temperature range allowed for correct operation is --10÷60°C. Avoid places subject to strong vibrations, corrosive gases,
excessive dirt or humidity. The same recommendations apply to probes. Let air circulate by the cooling holes.
