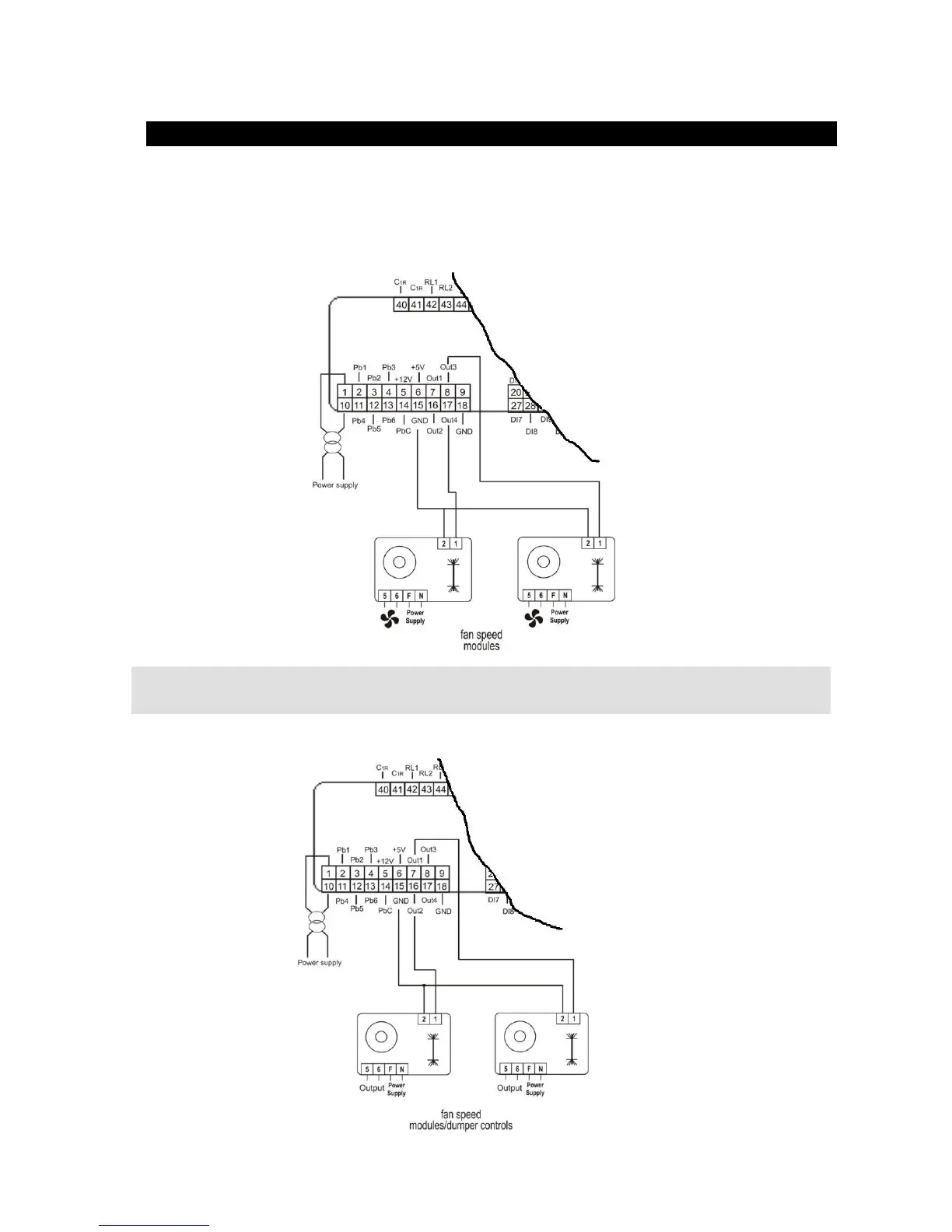

45 PWM OUTPUT FOR CONDENSING FAN SPEED CONTROL
OUT3 and OUT4 = cut of phase signals for the modulation of the condenser fan
GND = ground for pressure transducers
The compatible modules are the following:
XV05PK mono-phase , cut phase control 500 Watt (2A)
XV10PK mono-phase , cut phase control 1000 Watt (4A)
XV22PK mono-phase , cut phase control 2200 Watt (9A)
45.1 PROPORTIONAL OUTPUT FOR FAN CONDENSING CONTROL OR FOR COMPRESSOR
INVERTER CONTROLLED OR FOR AUXILIARY OUTPUTS
OUT3 and OUT4 = signals for the modulation of the condenser fan
GND = ground for pressure transducers
