1592010401 v2.7 17/10/2008
PROG TOOL KIT
12

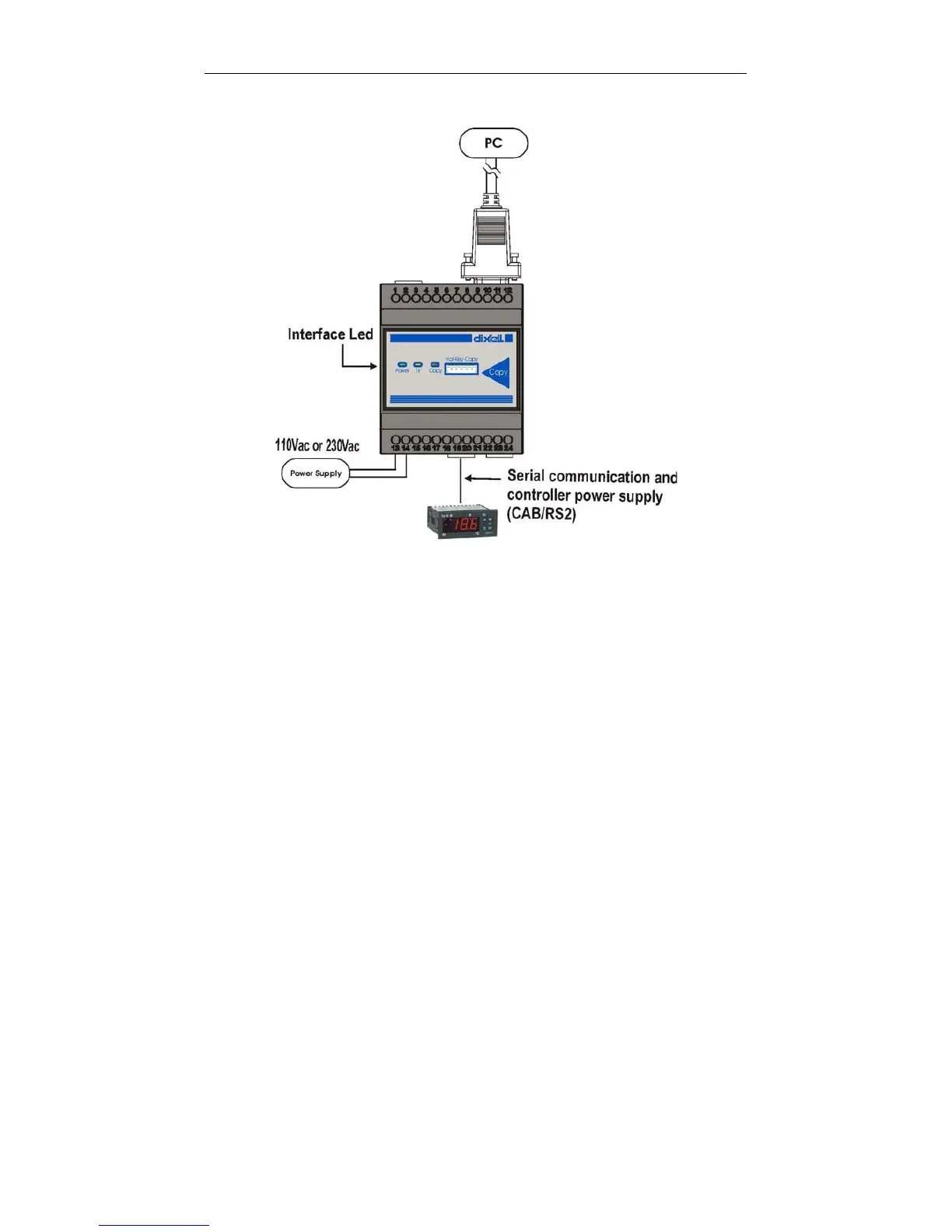

2.5.2 WIRING OF A CONTROLLER WITHOUT BUILT- IN RS485
1. With one of the 2 CAB/RS2 supplied with PROG TOOL KIT
connect the “TTL” terminal located on one side of PROG TOOL
to TTL (Hot Key) port of the controller. This grant to the controller
both power supply and serial communication without any other
wiring being necessary.
2. Connect the PROG TOOL to the PC using an RS232 cable
(such as Dixell CAB/SW 9-9)
3. Check that the serial address of the controller (parameter “Adr”)
is set to 1. If it doesn’t modify parameter setting
4. Now, by means of EASY PROG software is possible to check
and modify the parameter map of the device (see paragraph
"HOW TO MODIFY A PARAMETER MAP" at page 21).
