dji L1 - IMU Calibration in Mapping;Oblique;Linear Flight Missions

http://www.dji.com/zenmuse-l1
Copyright © 2022 DJI All Rights Reserved.
14

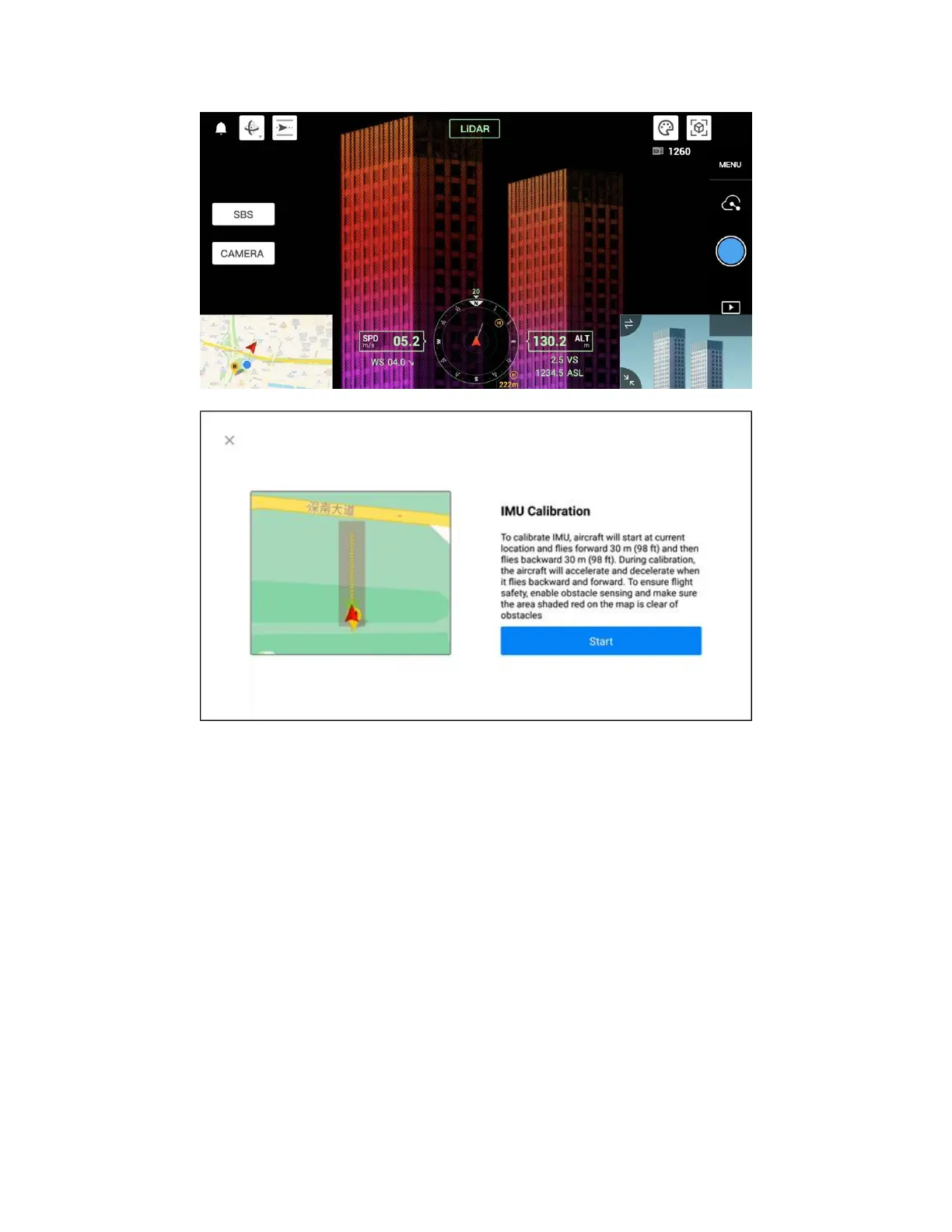

Figure: Manual IMU Calibration Option
3.2.2 IMU Calibration in Mapping/Oblique/Linear Flight Missions
In mapping/oblique flight missions, you can find the toggle “IMU Calibration”. When turned on,
acceleration and deceleration calibration flights will be inserted to the flight route at the starting
point, the ending point, turning points, and along the route (every 100s). The calibration routes are
shown in yellow in the figure below.
