MATRICE 30 SERIES User Manual
Mission Flight - Setting Waypoints

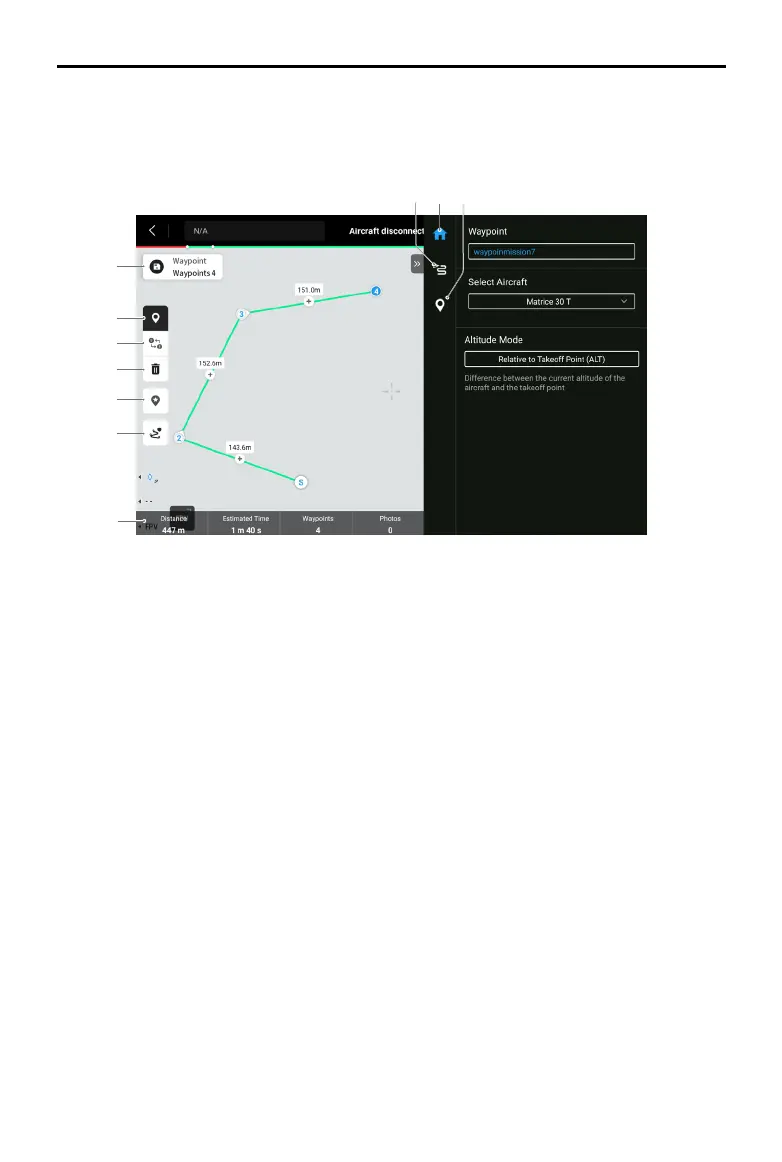

Tap Create a Route, Waypoint Route ight, and then Set Waypoints to create a new ight route. Tap on
the map to add waypoints, then congure route and waypoint settings.
1. Enable or disable waypoint settings.
2. Reverse Path: tap to swap the start and end points to reverse the ight path. S refers to the start
point.
3. Delete Selected Waypoint: tap to delete the selected waypoint.
4. Point of Interest (POI): tap to enable the POI function and a POI will be displayed on the map. Drag
to adjust its position. After a POI is added, the aircraft yaw can be set as facing the POI so that
the aircraft nose points at the POI point during the mission. Tap this icon again to disable the POI
function.
5. Flight Route Information: displays the ight length, estimated ight time, waypoint quantity, photo
quantity.
6. Set Individual Waypoints: select a waypoint and set its parameters. Tap < or > to switch to the
previous or next waypoint. The settings are applied to the selected waypoint, including aircraft
speed, aircraft altitude, aircraft yaw mode, waypoint type, aircraft rotation, gimbal tilt, waypoint
actions, longitude and latitude.
7. Parameters List: edit the route name, advance ight route settings and altitude mode, and set the
aircraft type.
8. Route Settings: the settings are applied to the entire route, including safe takeo altitude, ascend
to start point, aircraft speed, aircraft altitude, aircraft yaw, gimbal control, waypoint type, and
completion action. These parameters will take eect for all waypoints in the route.
9. Save: tap to save the ight route. After the ight route is saved, the icon becomes the perform task
button, tap the button and then check the settings and status of the aircraft in the pop-up checklist.
Tap to upload the ight route. Once the upload is complete, tap the Start button to perform the
current task.
