dji Phantom 2 Vision + User Manual

Assembly and Use
12
©
2014 DJI. All Rights Reserved.

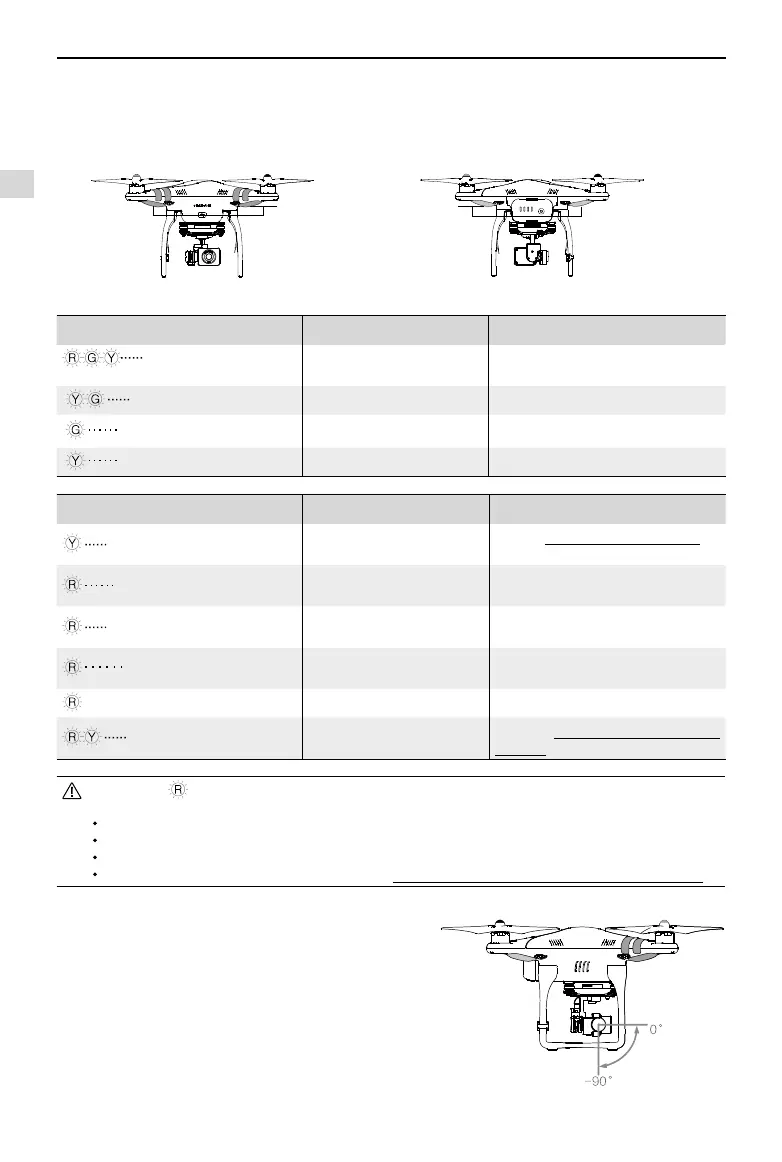

Figure 11 Figure 12
Rear LED Flight Indicators Normal Notes
Red, Green, Yellow
ashing in turn
Power On Self-Test
Yellow,Green ashing in turn Warming Up Aircraft cannot take off.
Slow Green ashing Ready to Fly More than 6 GPS satellites are found.
Slow Yellow ashing Ready to Fly (non-GPS) Less than 6 GPS satellites are found.
Rear LED Flight Indicators Abnormal Notes
Quick Yellow ashing Remote Control Signal Lost
Refer to Failsafe Function (Page27) for
details.
Slow Red ashing Low Battery Level Warning
DJI VISION App will also show warning
message.
Quick Red ashing
Critical Low Battery Level
Warning
DJI VISION App will show warning
message.
Three Red ashing off and on
Not Stationary or Sensor Bias is
too big
Keep aircraft stationary or perform IMU
calibration.
— Solid red Error Cannot y.
Red, Yellow ashing in turn Compass Needs Calibration
Refer to Calibrating the Compass
(Page25) to get details.
If a solid red LED indicator appears, connect to the Phantom 2 Vision+ Assistant for details and resolution.
This may be caused by:
IMU calibration required: Recalibrate IMU using Assistant.
IMU is abnormal: Repair required.
Compass is abnormal: Repair required.
Remote Control mid-point is set abnormally: Refer to How to solve large margin(s) mid-point error? (Page 49)
3.4 3-axial Stabilized Gimbal
The 3-axial stabilized gimbal of the Phantom 2 Vision+
will power on and self-check each time the ight battery
is installed and powered on. Its pitch can be controlled
using the DJI VISION App. This gimbal has two working
modes, Non-FPV mode and FPV mode, with the Non-FPV
mode set as default. This can be congured in Phantom 2
Vision+ Assistant or the DJI VISION App.
3.3 LED Flight Indicator Descriptions
LED ight indicators are found at the front and the rear of the Phantom. Front LEDs are for indicating where the nose of
the aircraft is. They light up solid red after motors have started spinning. Rear LED Flight Indicators light up to show the
aircraft’s current ight status once the ight battery is powered on. For details, please see the below table.
Front LEDs
Rear LED
Flight Indicators
Preparing the Phantom 2 Vision+
Figure 13

dji Phantom 2 Vision + Specifications

General

Camera Resolution	14 MP
Flight Time	25 minutes
Max Speed	15 m/s
Max Ascent Speed	6 m/s
Max Descent Speed	2 m/s
GPS	Yes
Gimbal	3-axis
Battery Capacity	5200 mAh
Diagonal Motor-to-Motor Distance	350 mm
Transmitter Frequency	2.4 GHz
Battery Voltage	11.1 V
Video Resolution	1080p at 30fps, 720p at 60fps
Control Range	700 meters
Battery	3S LiPo
Operating Temperature	-10°C to 50°C
Video Recording Modes	1080p30 / 720p60
Transmitter Range	700 meters
Max Flight Distance	700 meters
Weight	1242 g
Charging Time	90 minutes
