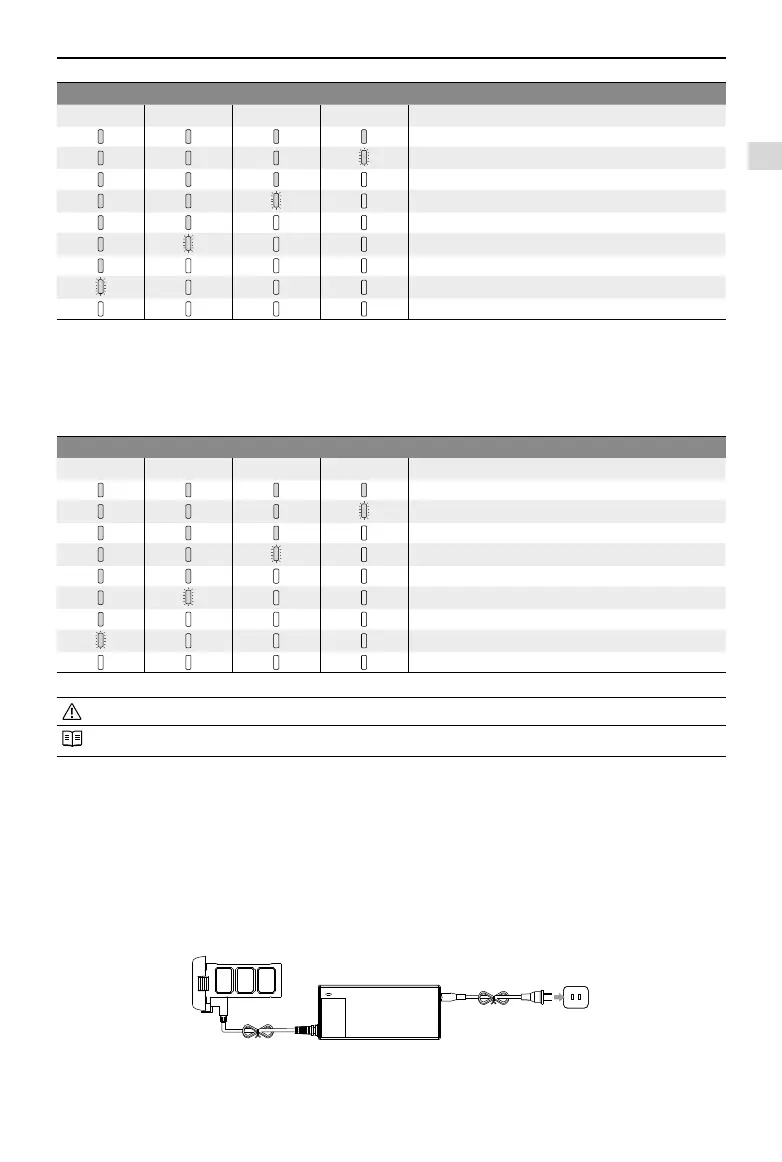

Discharging process
LED1 LED2 LED3 LED4 Current battery level
87.5%~100%
75%~87.5%
62.5%~75%
50%~62.5%
37.5%~50%
25%~37.5%
12.5%~25%
0%~12.5%
<0%
Battery life
When the battery is powered off, press and hold the Circular Power Button for 5 seconds to check battery life. Battery
Level Indicators will show light up and the Battery Power Indicators will blink for 10 seconds. All lights will then turn off.
For details, please see below.
Battery life
LED1 LED2 LED3 LED4 Current battery life
90%~100%
80%~90%
70%~80%
60%~70%
50%~60%
40%~50%
30%~40%
20%~30%
Less than 20%
When batter life reaches 0, it is no longer operational.
More battery information is available in the battery tab of the Phantom 2 Vision+ Assistant.
2.3 Charging the Flight Battery
(1) Connect charger to wall socket (100-240V, 50/60Hz, using the Plug Adaptors if necessary).
(2) Connect battery to charger. If the current capacity of the battery is over 75%, you should turn it on before beginning
to charge.
(3) Battery Level Indicators will display current capacity level as the battery charges.
(4) Battery is fully charged when Battery Level indicator lights are off. Disconnect the charger and battery when charging
is complete.
Preparing the Battery
Figure 6

dji Phantom 2 Vision + Specifications

General

Camera Resolution	14 MP
Flight Time	25 minutes
Max Speed	15 m/s
Max Ascent Speed	6 m/s
Max Descent Speed	2 m/s
GPS	Yes
Gimbal	3-axis
Battery Capacity	5200 mAh
Diagonal Motor-to-Motor Distance	350 mm
Transmitter Frequency	2.4 GHz
Battery Voltage	11.1 V
Video Resolution	1080p at 30fps, 720p at 60fps
Control Range	700 meters
Battery	3S LiPo
Operating Temperature	-10°C to 50°C
Video Recording Modes	1080p30 / 720p60
Transmitter Range	700 meters
Max Flight Distance	700 meters
Weight	1242 g
Charging Time	90 minutes
