7.3 Install the Battery

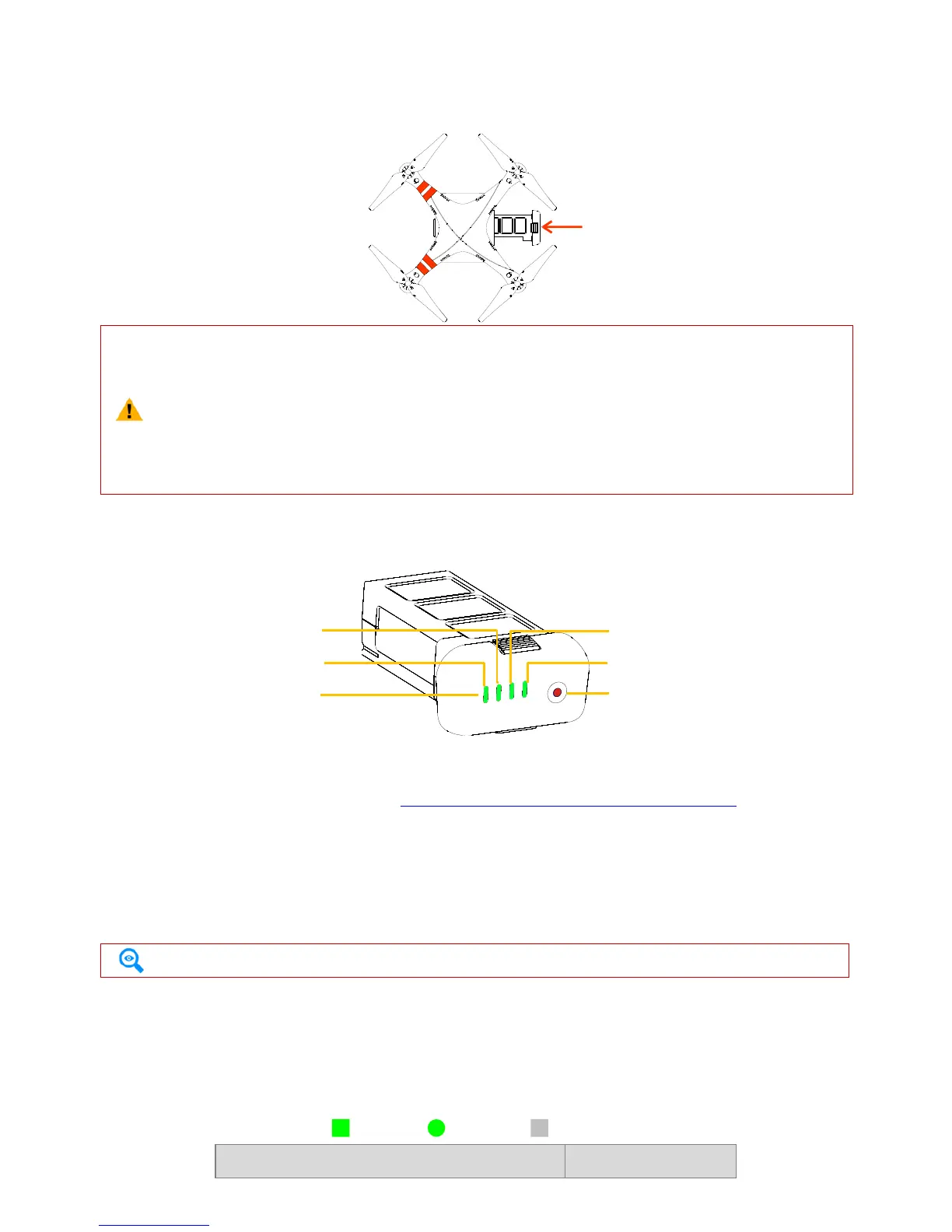

Push the battery into the battery compartment correctly as the following diagram shows. Make sure to push the
battery into the compartment until you hear a ‘click’ sound.
An incorrectly inserted battery may cause one of the following to occur:
(1)
(2)
(3)
(4)
Bad contact.
Unavailable battery information.
Unsafe for flight.
Unable to take off.
7.4 Battery Usage
(1) Checking the battery level: When the battery is powered off; pressing the battery power button once will
indicate the current battery level. Refer to Description of the Battery Level Indicator (Page 24) for details.
(2) Powering on: When the battery is powered off; press the battery power button once and then press and hold for
2 seconds to turn on the intelligent battery.
(3) Powering off: When the battery is powered on; press the battery power button once and then press and hold for
2 seconds to turn off the intelligent battery.
More battery information is available in the battery tab of the PHANTOM 2 VISION Assistant.
Description of the Battery Level Indicator
The current battery level is shown during both the charging and discharging process. Refer to the following table
for details:
The indicators are defined below
：
LED is on. LED blinks. LED is off.
Battery level indicator
Current battery level
LED3
LED4
Battery Power Button
(Built-in Battery Power Indicator)
LED2
LED1
Battery Level Indicator
