Phantom 4 Pro / Pro+ User Manual

Flight Status Indicator

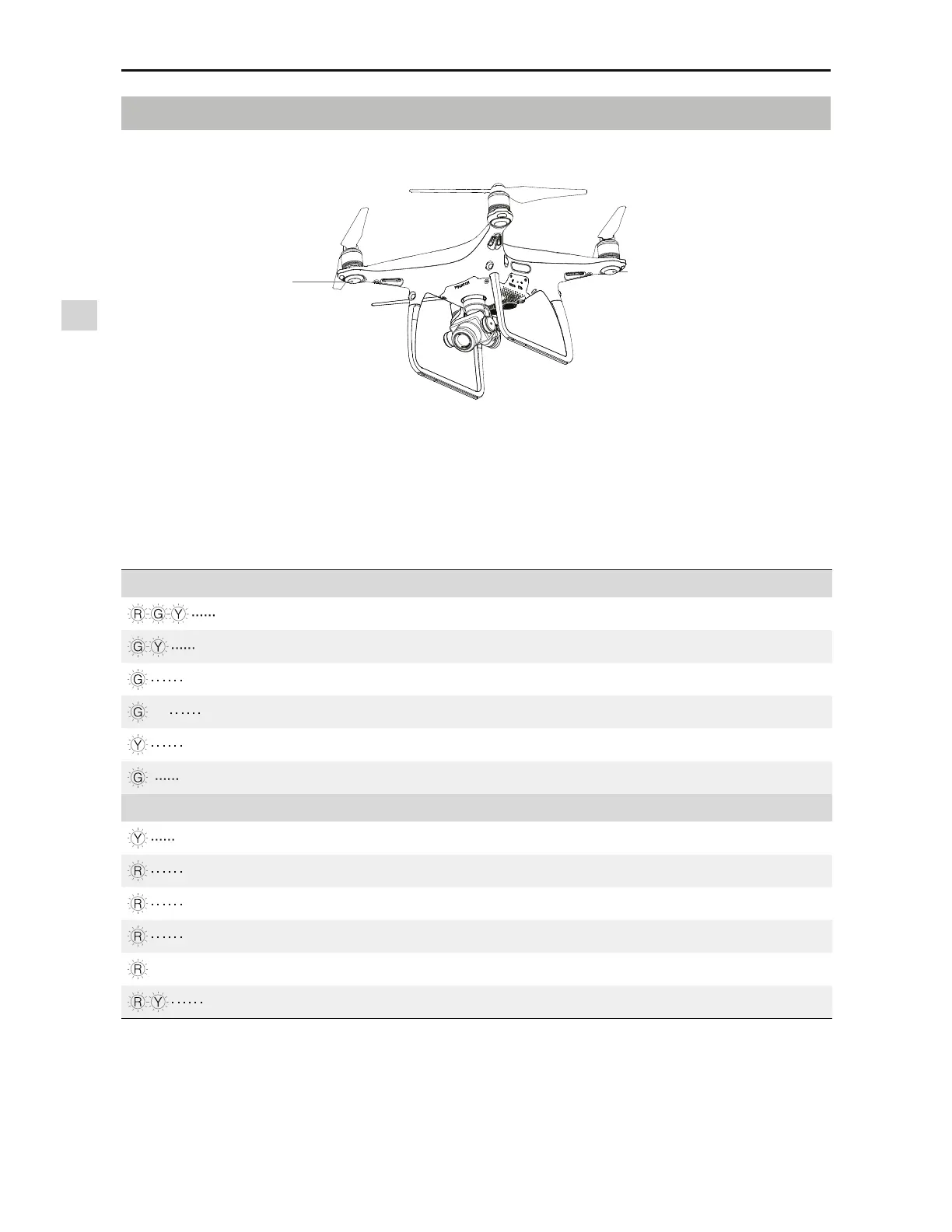

The Phantom 4 Pro / Pro+ has Front LEDs and Aircraft Status Indicators. The positions of these LEDs are

TIPXOJOUIFmHVSFCFMPX

The Front LEDs show the orientation of the aircraft. The Front LEDs glow solid red when the aircraft is

turned on to indicate the front (or nose) of the aircraft. The Aircraft Status Indicators communicate the

TZTUFNTUBUVTPGUIFnJHIUDPOUSPMMFS3FGFSUPUIFUBCMFCFMPXGPSNPSFJOGPSNBUJPOBCPVUUIF"JSDSBGU4UBUVT

Indicators.

Front LED

Aircraft Status Indicator

Aircraft Status Indicator Description

Normal

"MUFSOBUFSFEHSFFOBOEZFMMPXnBTIJOH Turning On and Self Diagnostic Testing

"MUFSOBUFHSFFOBOEZFMMPXnBTIJOH Warming Up

4MPXHSFFOnBTIJOH P-mode with GPS

×2 5XPHSFFOnBTIFT P-mode with Vision System

4MPXZFMMPXnBTIJOH A-mode but No GPS or Vision System

'BTUHSFFOnBTIJOH Braking

Warning

'BTUZFMMPXnBTIJOH Remote Controller Signal Lost

4MPXSFEnBTIJOH Low Battery Warning

'BTUSFEnBTIJOH Critical Battery Warning

3FEnBTIJOH IMU Error

—

Solid Red Critical Error

"MUFSOBUFSFEBOEZFMMPXnBTIJOH Compass Calibration Required

Other manuals for dji PHANTOM 4 PRO

Questions and Answers:

Need help?

Do you have a question about the dji PHANTOM 4 PRO and is the answer not in the manual?

General

Type	Quadcopter
Product color	Grey, White
Maximum speed	6 m/s
Frequency band	2.400 - 2.483 GHz, 5.725 - 5.825 GHz GHz
Number of axis	3
GPS (satellite)	Yes
Number of rotors	4 rotors
Maximum tilt angle	42 °
Maximum flight time	30 min
Maximum descent speed	4 m/s
Maximum weight capacity	- kg
Maximum wind resistance	10 m/s
Vertical hover accuracy	0.1 m
Horizontal hover accuracy	0.3 m
Maximum operating distance	6000 m
Maximum pitch angular velocity	250 °/sec
Battery voltage	15.2 V
Battery capacity	5870 mAh
Transmitter battery capacity	6000 mAh
Megapixel	20 MP
Sensor type	CMOS
Video resolutions	1280 x 720, 1920 x 1080, 2720 x 1530, 3840 x 2160 pixels
Maximum frame rate	30 fps
Optical sensor size	1 \
Camera shutter speed	8 - 1/2000, 8 - 1/8000 s
Image formats supported	DNG, JPG, RAW
Video formats supported	AVC, H.264, H.265, HEVC, MOV, MP4
Maximum video resolution	4096 x 2160 pixels
Field of view (FOV) angle	70 °
Bitrate at maximum video resolution	100 Mbit/s
Operating temperature (T-T)	0 - 40 °C
Built-in processor	-
Operating frequency	2.4 - 2.483 MHz
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	128 GB
Moving control functions	Backward, Downward, Forward
