dji PHANTOM 4 PRO User Manual

Remote Controller
Phantom 4 Pro / Pro+ User Manual
©
2017 DJI All Rights Reserved.
41
Remote Controller Status LED
5IF4UBUVT-&%SFnFDUTUIFTUSFOHUIPGUIFDPOOFDUJPOCFUXFFOUIFSFNPUFDPOUSPMMFSBOEUIFBJSDSBGU5IF
RTH LED indicates the Return-to-Home status of the aircraft. The table below contains more information
about these indicators.

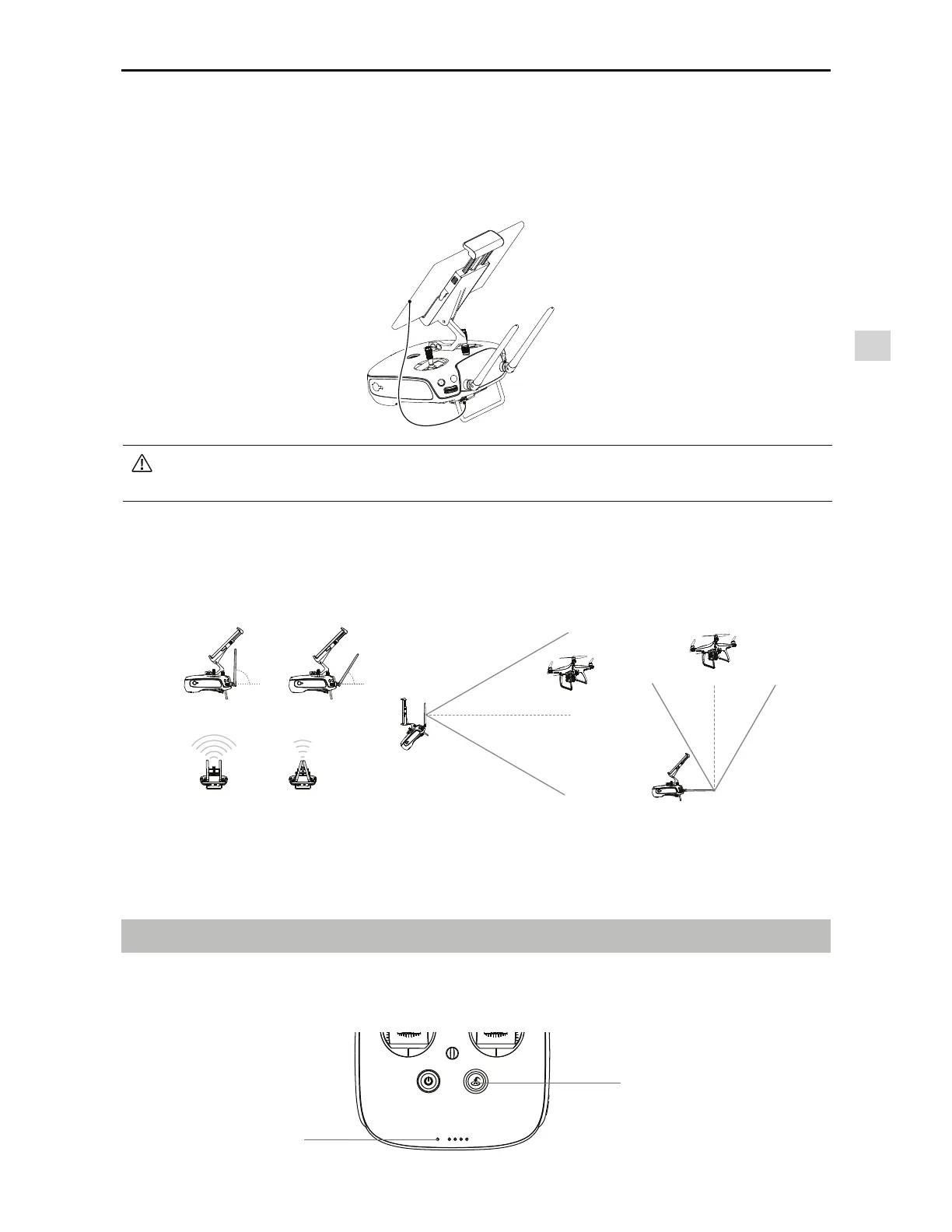

Connecting Your Mobile Device
Tilt the mobile device holder to the desired position. Press the button on the side of the mobile device holder
to release the clamp, and then place your mobile device into the cradle. Adjust the clamp down to secure the
mobile device. To connect your mobile device to the remote controller using a USB cable, plug one end of
the cable into your mobile device and the other end into the USB port on the back of the remote controller.
Optimal Transmission Range
The transmission signal between the aircraft and the remote controller is most reliable within the
area that depicted below:
Optimal Transmission Range
&OTVSFUIBUUIFBJSDSBGUJTnZJOHXJUIJOUIFPQUJNBMUSBOTNJTTJPO[POF5PBDIJFWFUIFCFTUUSBOTNJTTJPO
performance, maintain the appropriate relationship between the operator and the aircraft.
RTH LED
Status LED
The Remote Controller of the Phantom 4 Pro+ includes a display device optimized for the DJI GO 4
app. No other mobile devices are required.
5.8G
90° 60°
2.4G
strong weak

dji PHANTOM 4 PRO Specifications

General

Type	Quadcopter
Product color	Grey, White
Maximum speed	6 m/s
Frequency band	2.400 - 2.483 GHz, 5.725 - 5.825 GHz GHz
Number of axis	3
GPS (satellite)	Yes
Number of rotors	4 rotors
Maximum tilt angle	42 °
Maximum flight time	30 min
Maximum descent speed	4 m/s
Maximum weight capacity	- kg
Maximum wind resistance	10 m/s
Vertical hover accuracy	0.1 m
Horizontal hover accuracy	0.3 m
Maximum operating distance	6000 m
Maximum pitch angular velocity	250 °/sec
Battery voltage	15.2 V
Battery capacity	5870 mAh
Transmitter battery capacity	6000 mAh
Megapixel	20 MP
Sensor type	CMOS
Video resolutions	1280 x 720, 1920 x 1080, 2720 x 1530, 3840 x 2160 pixels
Maximum frame rate	30 fps
Optical sensor size	1 \
Camera shutter speed	8 - 1/2000, 8 - 1/8000 s
Image formats supported	DNG, JPG, RAW
Video formats supported	AVC, H.264, H.265, HEVC, MOV, MP4
Maximum video resolution	4096 x 2160 pixels
Field of view (FOV) angle	70 °
Bitrate at maximum video resolution	100 Mbit/s
Operating temperature (T-T)	0 - 40 °C
Built-in processor	-
Operating frequency	2.4 - 2.483 MHz
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	128 GB
Moving control functions	Backward, Downward, Forward

Weight and Dimensions

Battery weight	468 g
