Product Profile
Phantom 4 Pro / Pro+ User Manual
8
©
2017 DJI All Rights Reserved.

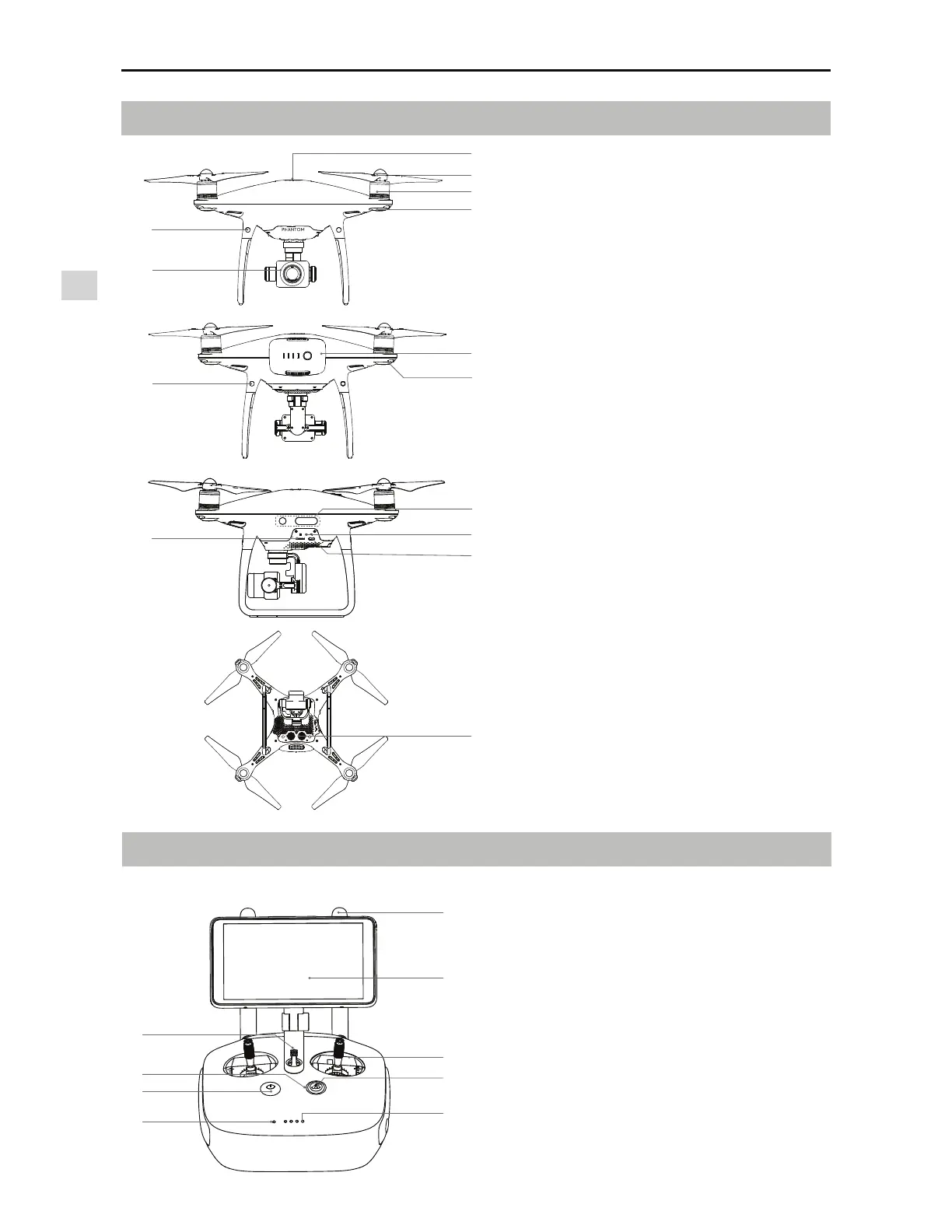

Aircraft Diagram
Remote Controller Diagram
[1] GPS
[2] Propellers
[3] Motors
[4] Front LEDs
[5] Gimbal and Camera
[6] Forward Vision System
[7] Intelligent Flight Battery
[8] Aircraft Status Indicator
[9] Rear Vision System
[10] Infrared Sensing System
[11] Camera / Linking Status Indicator
and Link Button
[12] Micro USB Port
[13] Camera Micro SD Card Slot
[14] Downward Vision System
[
1
]
[
2
]
[
3
]
[
4
]
[
7
]
[
8
]
[
11
]
[
10
]
[
14
]
[
12
]
[
13
]
[
5
]
[
9
]
[
6
]
[1]
Antennas
Relays aircraft control and video
signal.
[2]
Display Screen
Display device with Android system to
run DJI GO 4 app.
[3]
Control Stick
Controls the orientation and movement
of the aircraft.
[4]
Return Home (RTH) Button
Press and hold the button to initiate
Return to Home (RTH).
[1]
<
2
>
<
4
>
<
5
>
<
7
>
<
6
>
<
8
>
<
9
>
<
3
>
Phantom 4 Pro+ (Model: GL300E)
