Product Profile
Phantom 4 Pro / Pro+ User Manual
©
2017 DJI All Rights Reserved.
9

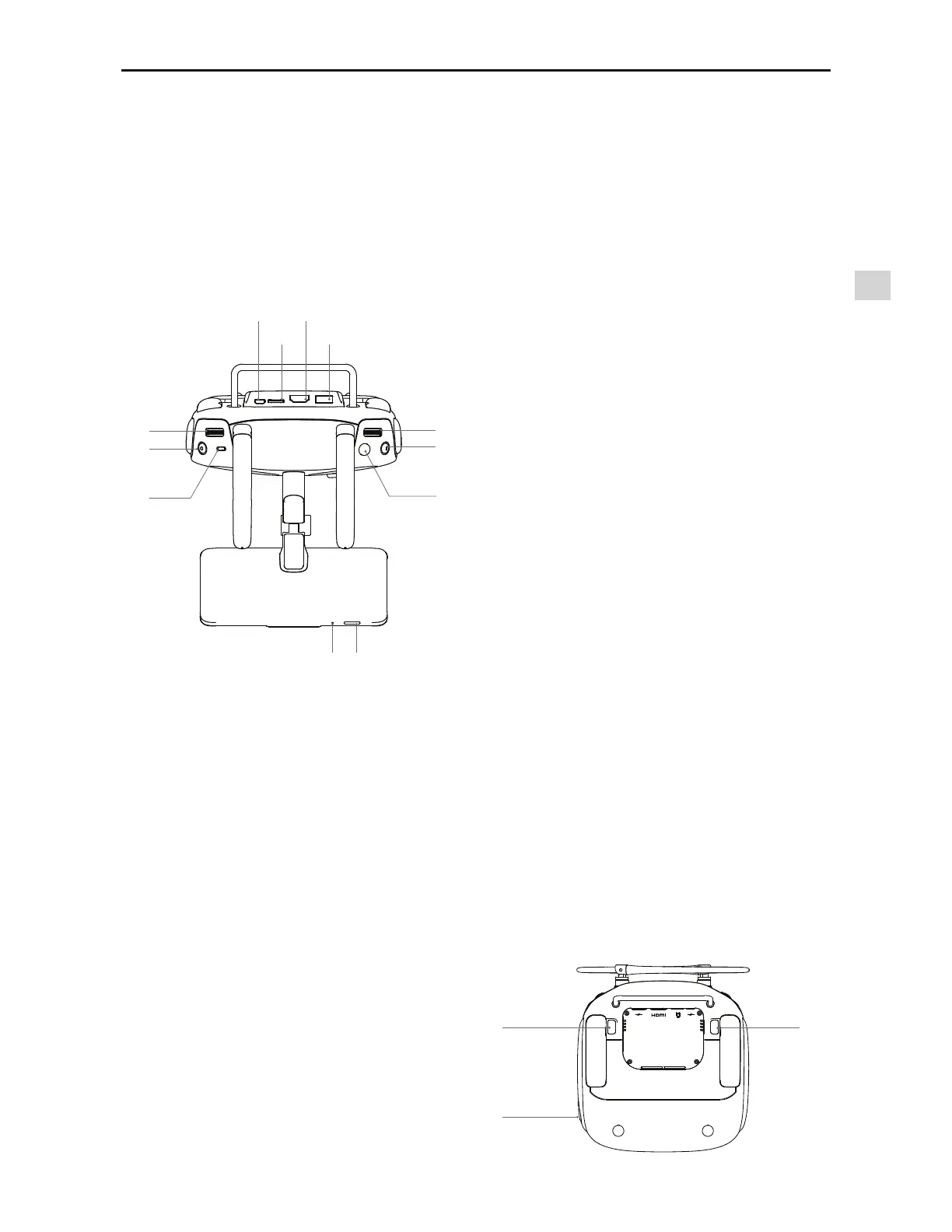

[10]
Camera Settings Dial
Turn the dial to adjust camera settings.
(Only functions when the Remote Controller
is connected to a mobile device running
the DJI GO 4 app.)
[11]
Intelligent Flight Pause Button
Press once to allow the aircraft to exit from
TapFly, ActiveTrack and other intelligent
nJHIUNPEFT
[5]
Battery Level LEDs
Displays the battery level of the Remote
Controller.
[6]
Status LED
Displays the Remote Controller's system status.
[7]
Power Button
Used to turn the Remote Controller on and off.
[8]
RTH LED
Circular LED around the RTH button displays
RTH status.
[9]
Speaker
Audio output.
[14] [13]
<
11
>
<
12
>
<
19
>
<
18
>
<
21
>
<
20
>
<
10
>
<
15
>
<
16
>
<
17
>
[12]
Shutter Button
Two-stage button, press to take a photo.
[13]
Sleep/Wake Button
Press to sleep/wake the screen, press and
hold to restart.
[14]
Microphone
[15]
Flight Mode Switch
Switch between P-mode, S-mode, and
A-mode.
[16]
Video Recording Button
Press to start recording video. Press again
to stop recording.
[17]
Gimbal Dial
Use this dial to control the tilt of the gimbal.
[18]
Micro USB Port
Upgrading the aircraft by connecting to
the remote controller using the USB OTG
cable.
[19]
Micro SD Card Slot
Provide extra storage space for the display
device, maximum supporting 128 GB.
[20]
HDMI Port
Output HDMI video signal.
[21]
USB Port
USB device support.
<
22
>
<
24
>
<
23
>
[22]
C1 Button
Customizable through the DJI GO 4 app.
[23]
C2 Button
Customizable through the DJI GO 4 app.
[24]
Power Port
Connect to the Charger to charge the
battery of the Remote Controller.
