Product Profile
Phantom 4 Pro / Pro+ User Manual
10
©
2017 DJI All Rights Reserved.

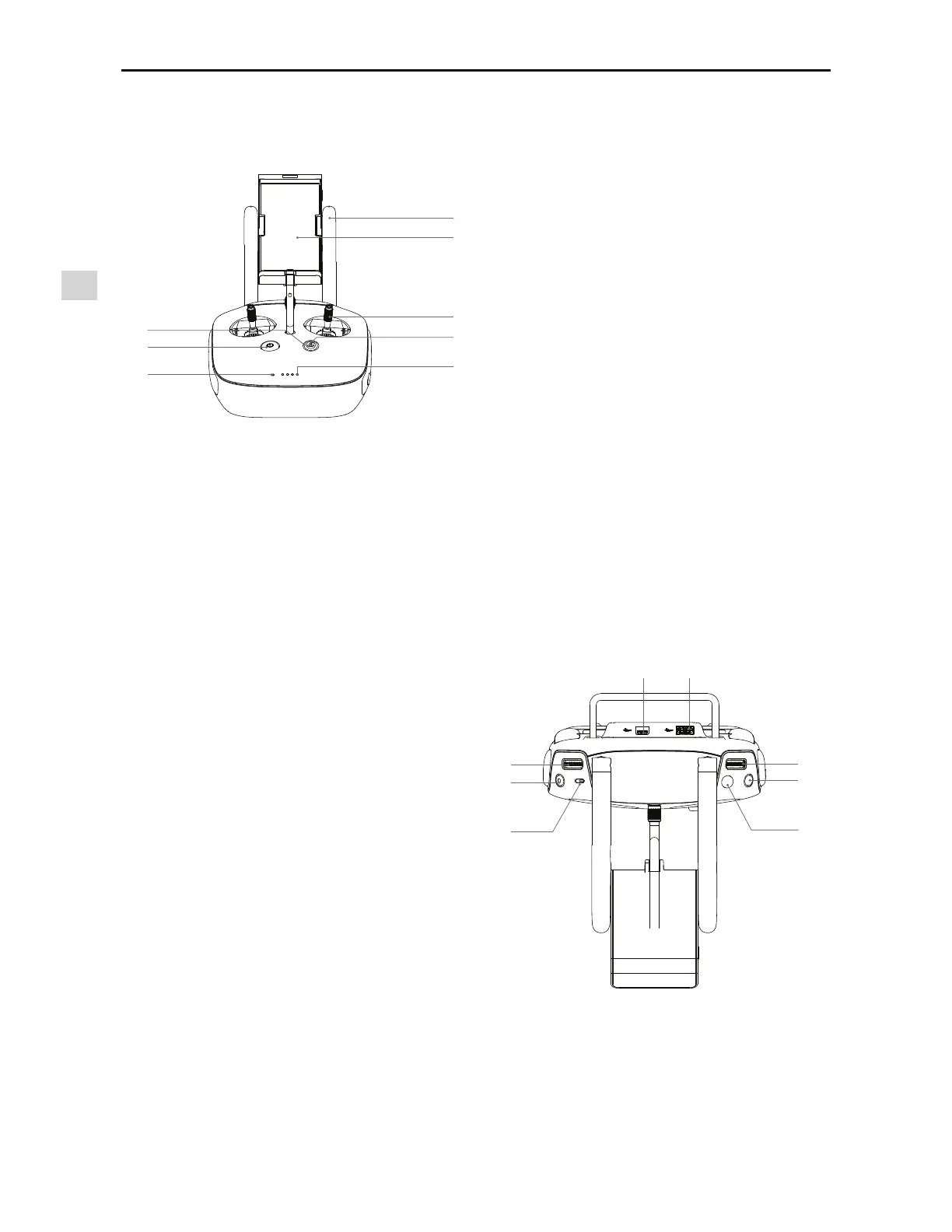

Phantom 4 Pro (Model: GL300F)
[1]
Antennas
Relays aircraft control and video signal.
[2]
Mobile Device Holder
Securely mounts your mobile device to the
remote controller.
[
1
]
[
2
]
[
3
]
[
4
]
[
5
]
[
7
]
[
8
]
[
6
]
[3]
Control Stick
Controls the orientation and movement of the
aircraft.
[4]
Return Home (RTH) Button
Press and hold the button to initiate Return to
Home (RTH).
[5]
Battery Level LEDs
Displays the battery level of the remote
controller.
[6]
Status LED
Displays the remote controller's system status.
[7]
Power Button
Used to turn the remote controller on and off.
[8]
RTH LED
Circular LED around the RTH button displays
RTH status.
[9]
Camera Settings Dial
Turn the dial to adjust camera settings.
(Only functions when the remote controller is
connected to a mobile device running the DJI
GO 4 app.)
[10]
Intelligent Flight Pause Button
Press once to allow the aircraft to exit from
5BQ'MZ"DUJWF5SBDLBOEPUIFSJOUFMMJHFOUnJHIU
modes.
[11]
Shutter Button
Two-stage button, press to take a photo.
[12]
Flight Mode Switch
Switch between P-mode, S-mode, and
A-mode.
[13]
Video Recording Button
Press to start recording video. Press again to
stop recording.
[14]
Gimbal Dial
Use this dial to control the tilt of the gimbal.
[15]
Micro USB Port
Reserved port.
[16]
USB Port
Connection to mobile device for DJI GO 4 app.
[10]
[11]
[15] [16]
[9]
[12]
[13]
[14]
