Make sure the gimbal connector on the aircraft is positioned correctly when mounting.
Otherwise, the camera cannot be mounted.
•
Only remove the L1 after powering off the aircraft.
•
Remove the L1 by pressing the button on the aircraft used for detaching the gimbal
and camera.
•
Make sure the microSD card slot cover is firmly in place to prevent dust or moisture
entering during usage or transportation.
•
To avoid burns, DO NOT directly touch the camera case when powering on.
•
Detach the gimbal from the aircraft during transportation or storage. Otherwise, the
service life of the damper balls may be shortened or they may even be damaged.
Camera Controls
Remote Controller
The MATRICE
TM
300 RTK remote controller is used as an example below. Adjust the tilt of the
gimbal using the left dial and adjust the pan using the right dial. Press the shutter button or
record button to take photos or record video. Toggle the 5D button to adjust the EV value. The
customizable C1 button can be used to recenter the gimbal and the customizable C2 button can
be used to switch between the main and auxiliary screen.

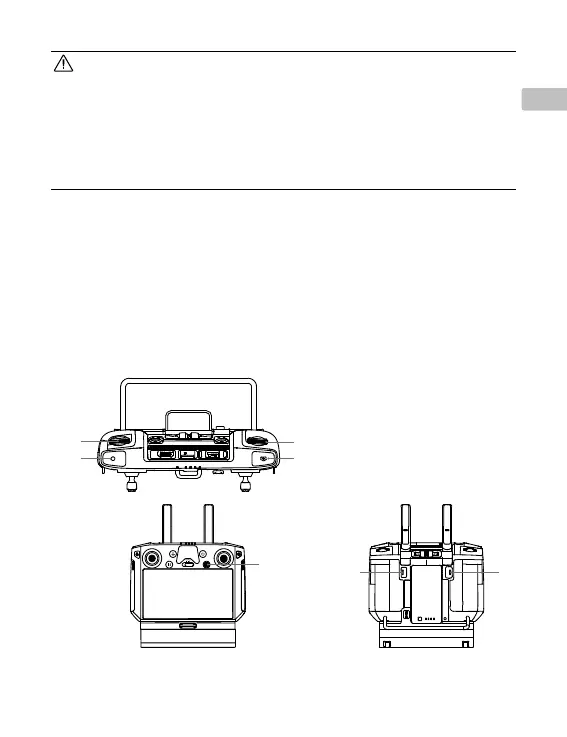

1. Left Dial
2. Record Button
3. Shutter Button
4. Right Dial
5. 5D Button
6. Customizable C2 Button*
7. Customizable C1 Button*
1
2
3
4
5
7
6
* The function of this button can be customized.

dji ZENMUSE L1 Specifications

General

Product type	Camera module
Compatibility	Matrice 300 RTK
Product color	Black
Brand compatibility	DJI
Operating temperature (T-T)	-20 - 50 °C
Megapixel	20 MP
Sensor type	CMOS
Maximum frame rate	30 fps
Camera shutter speed	1/8000 - 8 s
ISO sensitivity (max)	12800
ISO sensitivity (min)	100
Image formats supported	JPEG
Video formats supported	H.264, MOV, MP4
Maximum video resolution	3840 x 2160 pixels
Field of view (FOV) angle	95 °

Weight and Dimensions

Depth	169 mm
Width	110 mm
Height	152 mm
Weight	930 g
