dji ZENMUSE L1 Quick Start Guide

4
EN

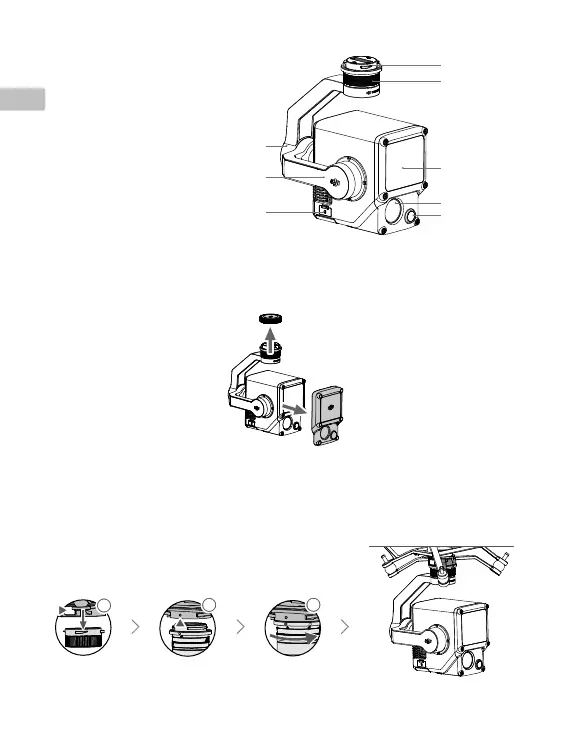

Overview
1. Gimbal Connector
2. Pan Motor
3. LiDAR
4. RGB Mapping Camera
5. Auxiliary Positioning Vision
Sensor
6. microSD Card Slot
7. Tilt Motor
8. Roll Motor
1
3
6
7
8
4
5
2
2. Press the button on the aircraft used for detaching the gimbal and camera. Rotate the gimbal cap on
the aircraft to remove.
3. Align the white dot on the gimbal with the red dot on the aircraft and insert the gimbal.
4. Rotate the gimbal lock to the locked position by aligning the red dots.
Installation
1. Remove the gimbal cap and lens protector.
2
11
3

dji ZENMUSE L1 Specifications

General

Product type	Camera module
Compatibility	Matrice 300 RTK
Product color	Black
Brand compatibility	DJI
Operating temperature (T-T)	-20 - 50 °C
Megapixel	20 MP
Sensor type	CMOS
Maximum frame rate	30 fps
Camera shutter speed	1/8000 - 8 s
ISO sensitivity (max)	12800
ISO sensitivity (min)	100
Image formats supported	JPEG
Video formats supported	H.264, MOV, MP4
Maximum video resolution	3840 x 2160 pixels
Field of view (FOV) angle	95 °

Weight and Dimensions

Depth	169 mm
Width	110 mm
Height	152 mm
Weight	930 g
