dji ZENMUSE L1 Quick Start Guide

6
EN
DJI Pilot App

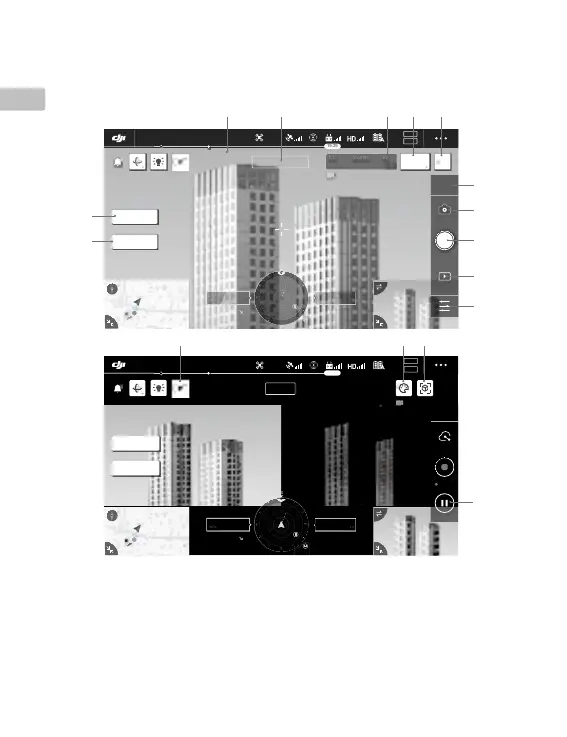

The touch interface can be used for capturing photos, recording videos, and viewing playback.
Professional photography congurations are also available.
1. Live HD Video
2. Camera Type
3. Camera Parameters
4. Focus Mode
5. Auto Exposure Lock
6. Camera Settings
7. Recording Mode (Shutter/Video Record/Point Cloud Record)
8. Shooting Button (Shutter/Video Record/Point Cloud Record)
9. Playback
10. Parameter Settings
* The software interface may need to be updated. Make sure to update to the latest version.
In-Flight (RTK)
19:29
AE
ISO
100
Shutter
1/1000
EV
-0.3
AF-C
N
E
W
S
3
6
12
15
21
24
30
33
20
222m
05.2
SPD
m/s
WS 04.0
130.2
ALT
m
VS2.5
ASL1234.5
CAMERA
LiDAR
SBS
MENU
3.72V
RTK
44
5.8G
R
55%
56%
3.72V
1260
1 2 3 5
6
7
8
9
10
11
12
4
3.72V
19:29
RTK
44
5.8G
N
E
W
S
3
6
12
15
21
24
30
33
20
222m
05.2
SPD
m/s
WS 04.0
130.2
ALT
m
VS2.5
ASL1234.5
1260
SBS
LiDAR
CAMERA
22:02
MENU
In-Flight (RTK)
R
55%
56%
3.72V
3.72V
1413 15
16

dji ZENMUSE L1 Specifications

General

Product type	Camera module
Compatibility	Matrice 300 RTK
Product color	Black
Brand compatibility	DJI
Operating temperature (T-T)	-20 - 50 °C
Megapixel	20 MP
Sensor type	CMOS
Maximum frame rate	30 fps
Camera shutter speed	1/8000 - 8 s
ISO sensitivity (max)	12800
ISO sensitivity (min)	100
Image formats supported	JPEG
Video formats supported	H.264, MOV, MP4
Maximum video resolution	3840 x 2160 pixels
Field of view (FOV) angle	95 °

Weight and Dimensions

Depth	169 mm
Width	110 mm
Height	152 mm
Weight	930 g
