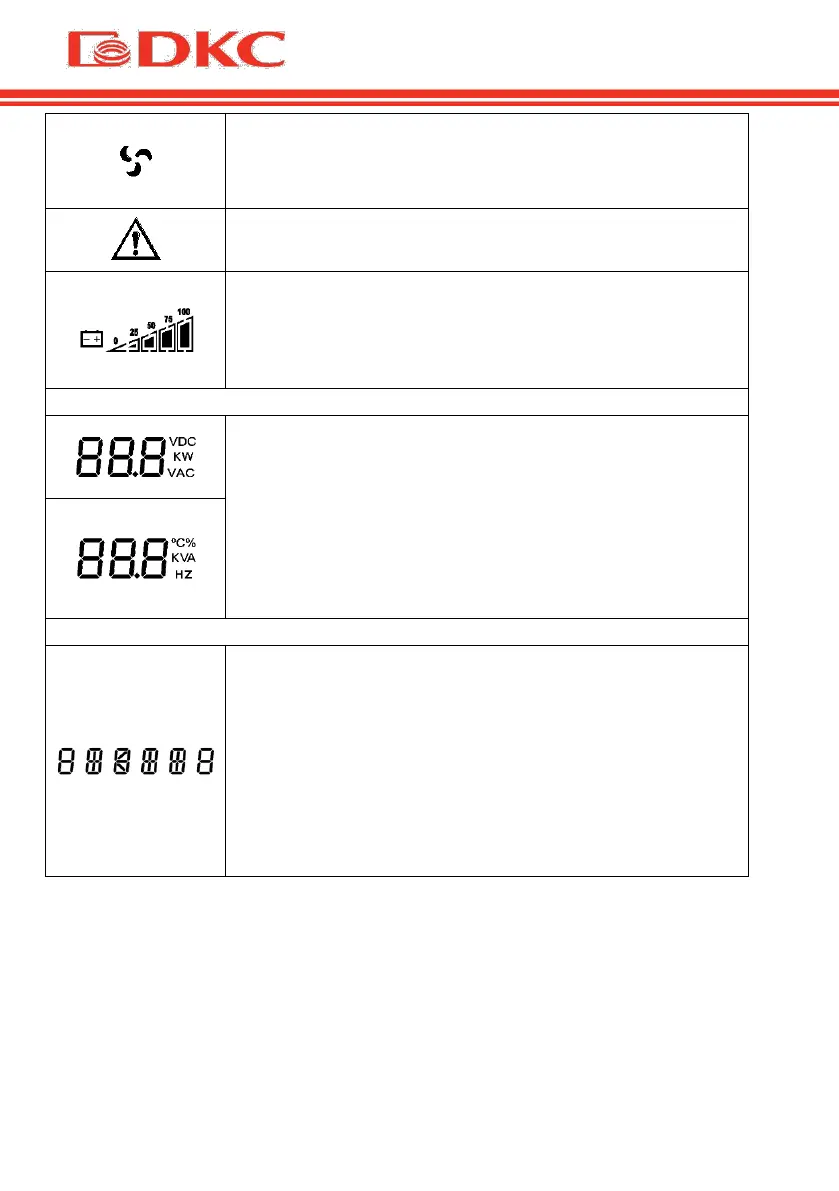

Fan icon: Indicates fan working status. When the fan
normally runs, the icon displays rotation; if the fan is
not connected or faulty, the icon will flash.
Fault icon: Indicates UPS is in fault mode.
Battery status icon: Indicates the battery capacity of 0-
25%, 26-50%, 51-75%, and 76-100%. When the
capacity of battery get low or battery disconnected, the
battery status icon will flash.
In non-setting mode, it displays UPS output
information when UPS normally runs; Fault code will be
told in fault mode.
In setting mode, users could adjust different output
voltage, activate ECO mode, activate CUCF mode,
select an ID number and so on by operating function
setting keys and inquiring key.
Indicates the power capacity of UPS within 20 seconds
after starting up.
Indicates UPS operation mode in 20 seconds, such as
STDBY (standby mode), BYPASS (Bypass mode), LINE
(AC mode), BAT (Battery mode), BATT (Battery Self
Test mode), ECO (Economic mode), SHUTDN
(Shutdown mode), CUCF (Constant Voltage and
Constant Frequency mode).
Table 9. Indicators on the screen of the UPS
5.3 UPS On/Off operation
5.3.1 Turn on procedure
Turn on the UPS with mains power
