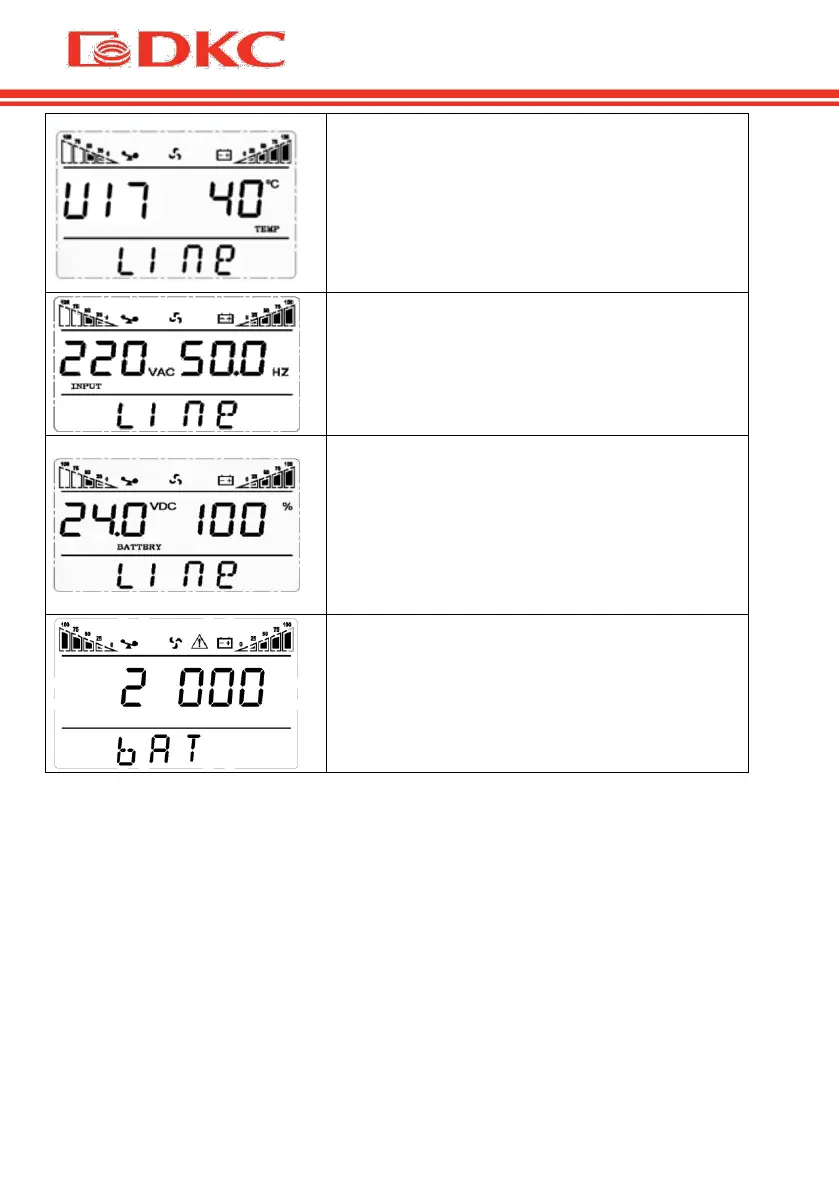

Software version and Temperature:
Indicate firmware version of UPS and display
the highest temperature of UPS
components; As the following graphics
shows, the firmware version is v1.7, the
maximum temperature is 40℃.
Input: Display the voltage and frequency of
the input. As the following graphics shows,
the input voltage is 220V, input frequency is
50Hz.
Battery: Display the voltage and capacity of
the battery. As the following graphics shows,
the battery voltage is 24V, the capacity of
battery is 100% (the capacity of battery is
approximately reckoned according to the
battery voltage).
Warning: Display the warning code.
Table 11. Parameters inquiring on the display of the UPS
