DKS 1838 - Tracker Expansion Boards Using Wireless Communication

1838-065-A-9-15
15
NC
NO
NO NC C
ON
ELEVATOR
1234567891011121314
1
2
3
OFF
KEYPAD
MASTER
CODE
16AC16ACBAT1NO1NC1C2RY2CAZIMC
5VDCIMD
K
R
14
13
12
11
6
5
4
3
2
1
DOORKING
2363-010
PAIRED
ON
OFF
0
F
E
D
C
B
A
9
8
7
6
5
4
3
2
1
0
F
E
D
C
B
A
9
8
7
6
5
4
3
2
1
RF RANGECH
NET
ID
RCVD
ALLOW
DENY
S TATU S
SYNC LOST
SYNC REVD
HEARTBEAT
DISPLAY
OFF/ON
RESET
RF
STAT STRENGTH
DOORKING
2361-010
2361 Wireless
Baseboard Kit
2361 Wireless
2361 Wireless
Baseboard Kit
Baseboard Kit
Auxiliary
Terminal
Connection
Power
Transformer
Required.
Connect to
#1 and #2.
Antenna
Required
Antenna
Required
200 ft max
Relay 2 Connection Required.
Relay 1Relay 2
Relay 0
4-Pin Terminal
Main Terminal
Relay 0
Main
Door/Gate
Wireless Tracker Board Addresses 3-10
Wireless Tracker Board Addresses 11-18
Relay 2 Jumper
Set to NO

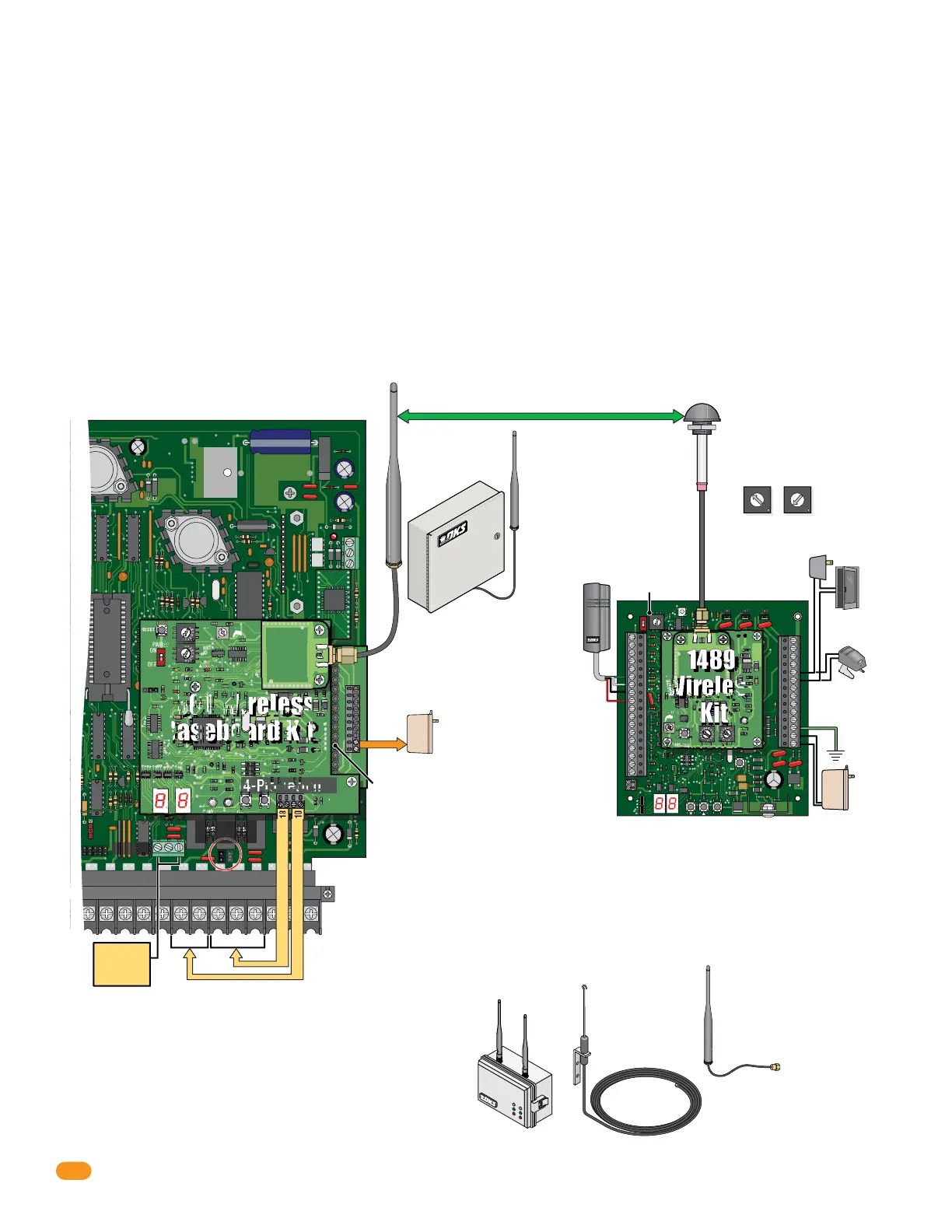

The model 2358 Tracker Expansion Board (sold separately) allows you to expand the number of remote entry points that the
access controller can control. One tracker expansion board is required for EACH remote entry point. Communicate wirelessly
between the tracker expansion boards and the 1838 controller without having to run wiring from each remote access point to
the 1838 controller. The model 1489 wireless tracker expansion board kit and the model 2361 wireless baseboard kit (each sold
separately) plugged onto to circuit boards for wireless communication. Wireless tracker expansion boards can be up to 100 ft
from the access controller (approximate). This distance can be extended by using longer range antennas (sold separately)
and/or a 2372 wireless dual band repeater (sold separately). Each tracker expansion board must have a board address set on it
to identify it to the access controller. Board addresses 3-10 will activate RELAY 2 and 11-18 will activate RELAY 1 on the
access controller. Board addresses can be set the same for multiple boards (zone addresses) when MORE than 8 boards need
to activate a specific RELAY (12 boards MAX for each relay). The tracker expansion boards are pre-programmed with many
features but can be programmed for specific needs when desired (See Tracker Expansion Board Manual 2358-065 for ALL
programming options). See DoorKing’s web site and the instruction sheets with the wireless kits for complete installation
information when using wireless communication.
