DKS 1838 - RS-232 Using VOICE;DATA Cellular System Kit - Voice;Data Transfer; Dial-Up Phone Modem Connection - Voice;Data Transfer

1838-065-A-9-15
22
Wired or
Wireless
TWO Entry Systems Max
per Cellular System
16AC16ACBAT1NO1NC1C2RY2CAZIMC
5VDCIMDSPKRCOMMICPSWCGNDPHONE
Main Terminal
Internet
Unlimited Connection Distance
Fast Data Transfer Rate
The DKS Cellular Server is fee based. Visit
https://dksdb.dksoftware.com/NewUserRegChoice.aspx
to register.
See instruction sheet that comes with
VOICE/DATA cellular system kit for
further information on wiring and
online registration.
RS-232
Terminal
1
2
3
4
5
6
Your PC
Requires VOICE/DATA Cellular System kit (DoorKing P/N 1800-080). Manage 2 (two) 1838s in one programming step through
DoorKing’s cellular network server where available.

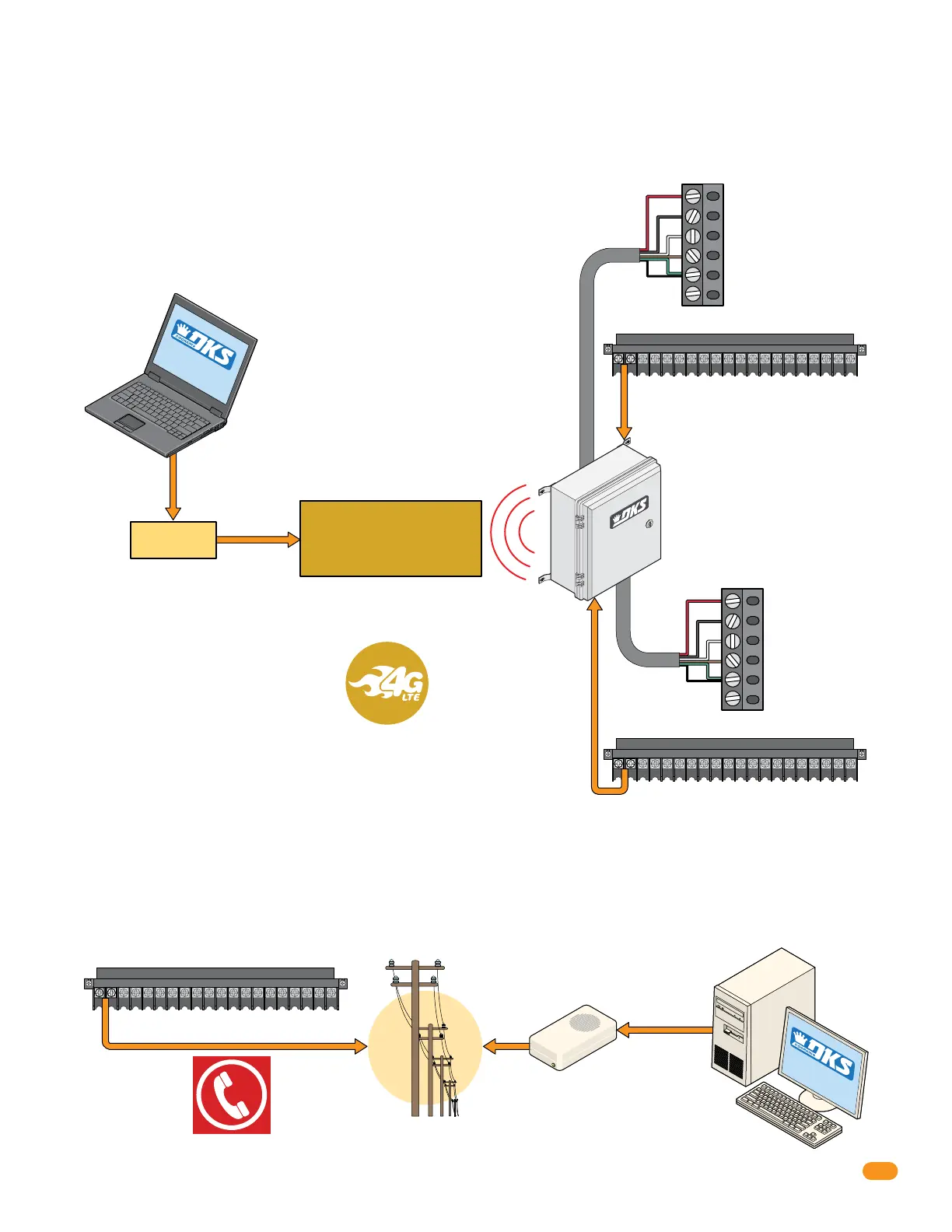

2.4.7 RS-232 using VOICE/DATA Cellular System Kit - Voice/Data Transfer
VOICE/DATA
Cellular System
1838 Access
Controller #2
1838 Access
Controller #1
RS-232
RS-232
Terminal
1
2
3
4
5
6
RS-232
SOFTWARE
INSTALLED
DKS Cellular Server
hosted by AT&T cellular network
with DKS Online
Registration Completed
16AC16ACBAT1NO1NC1C2RY2CAZIMC
5VDCIMDSPKRCOMMICPSWCGNDPHONE
Main Terminal
Use your EXISTING phone modem to connect your PC to the 1838. Phone modem can ONLY connect to one 1838 at a time.
2.4.8 Dial-Up Phone Modem Connection - Voice/Data Transfer
Your External
Phone Modem
or
Internal PC
Phone Modem
Phone Company
1838 Access Controller
Your PC
16AC16ACBAT1NO1NC1C2RY2CAZIMC
5VDCIMDSPKRCOMMICPSWCGNDPHONE
Main Terminal
Unlimited Connection Distance
SLOW Data Transfer Rate
SOFTWARE
INSTALLED
See 2.4.1
See 2.4.1
