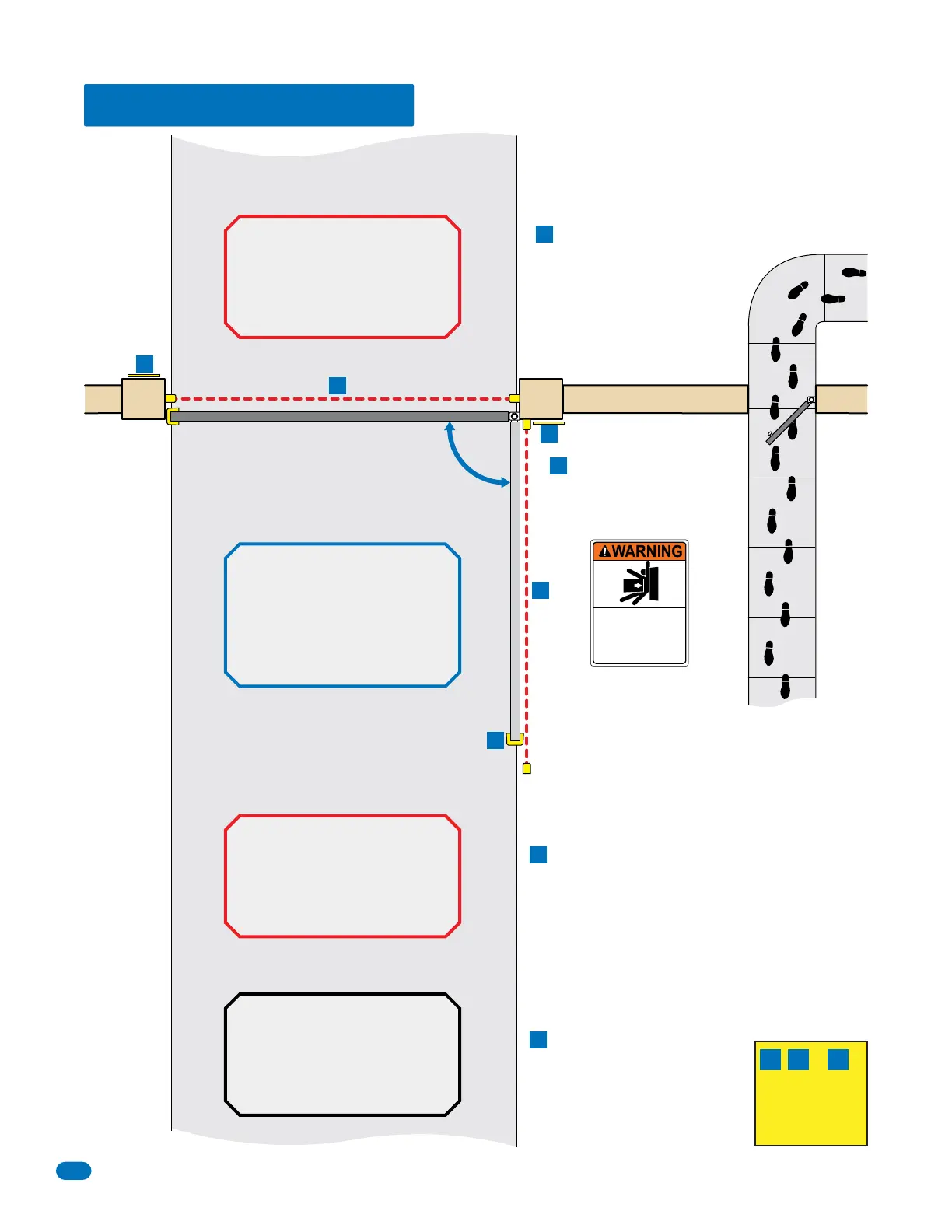

Swing Gate ProtectionSwing Gate Protection
Warning Signs
D
Permanently mounted and
easily visible from either
side of the gate.
Moving Gate Can Cause
Serious Injury or Death
KEEP CLEAR! Gate may move at any time
without prior warning.
Do not let children operate the gate or play
in the gate area.
This entrance is for vehicles only.
Pedestrians must use separate entrance.
C
E
D
D
Separate Pedestrian
Walkway
Located so pedestrians
cannot come in contact with
the vehicular gate.
Non-contact Sensor
C
E
Minimizes the potential of the
gate closing on vehicular or
other traffic that loops cannot
sense. Monitored device helps
protect against entrapment
when needed.
Non-contact Sensor
Minimizes the potential of
the gate striking vehicular or
other traffic that loops
cannot sense. Monitored
device helps protect against
entrapment when needed.
Minimizes the potential of the gate
striking vehicular or other traffic
that loops cannot sense. Monitored
device helps protect against
entrapment when needed.
F
F
Contact Sensor
, or is
REQUIRED
for operator
to function.
EC F
Reverse Loop
Shadow Loop
Automatic Exit Loop
Minimizes the potential of the gate
closing when a vehicle is present.
Number and placement of loops is
dependent on the application.
Reverse Loop
Minimizes the potential of the gate
closing when a vehicle is present.
Number and placement of loops is
dependent on the application.
(Optional) will provide an open
command to the gate operator(s)
when a vehicle is exiting the
property.
Provides a hold open command to
the operator(s) only if the gate(s)
are at the full open position.
Note: Not used for solar control
box installations.
