DKS 6005 - Mounting 115 VAC Control Box; Dual 6005 s Connection (115 VAC or Solar)

6005-065-M-12-17
13

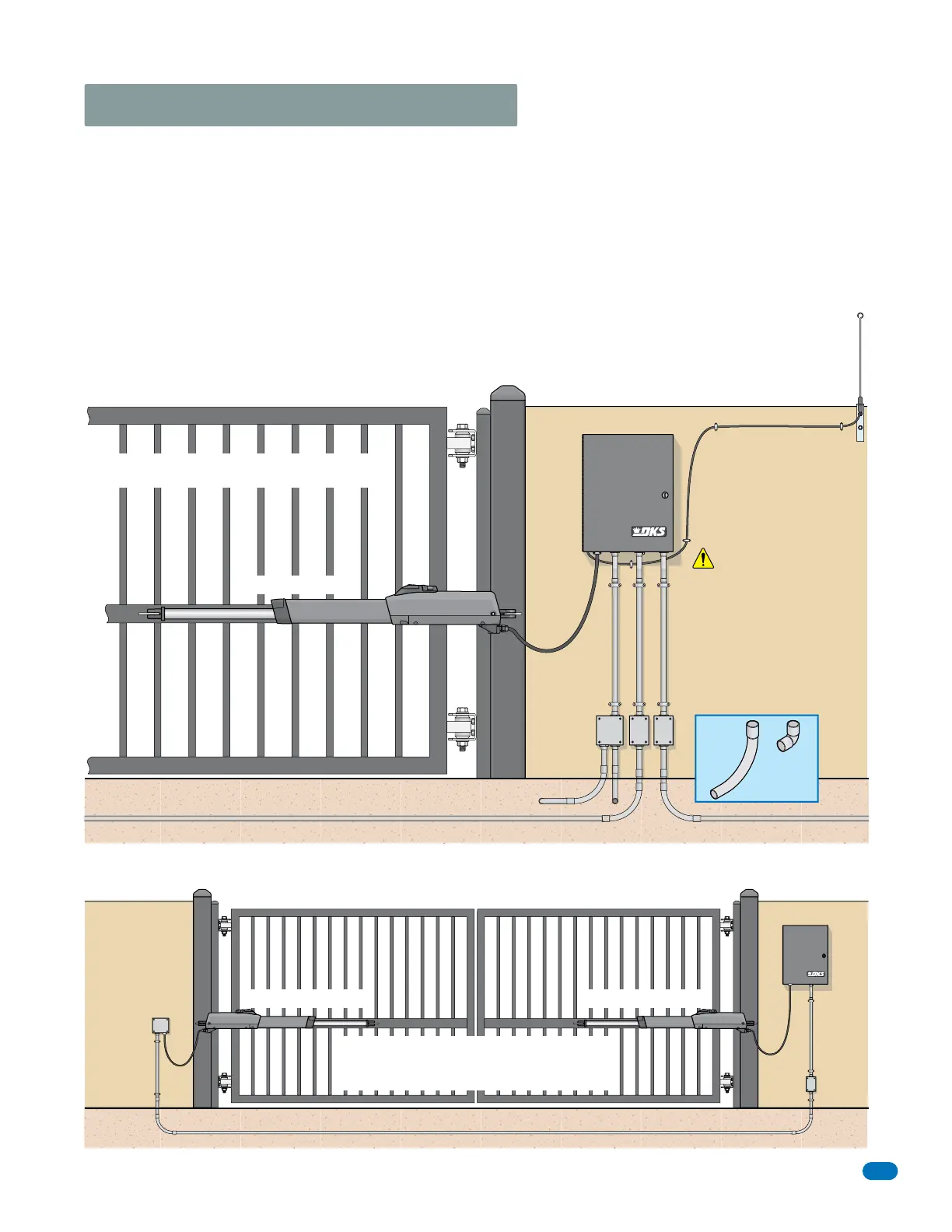

Mounting 115 VAC Control Box
Primary
6005
Cable
Secondary Actuator Conduit
Control Box must be
properly grounded.
Input Power Conduit
115 VAC
Loops Conduit
• 3/4” conduit recommended. Use only sweeps for conduit bends and NOT elbow connectors. Elbows will make
wire pulls very difficult and can cause damage to wire insulation.
• Remove fragile components from control box to protect them during installation if necessary.
• Installation of External Entrapment Protection is REQUIRED (photo sensor and/or reversing edge).
Coaxial Cable Antenna Kit
P/N 1514-073 (Sold separately)
Primary
6005
Cable
Secondary
6005
Cable
DoorKing interconnection cable (Sold separately) inside underground conduit
Junction
Box
Junction
Boxes
Elbow
NO
Sweep
YES
Interconnection Cable 30 feet. P/N 2600-755
Interconnection Cable 40 feet. P/N 2600-756
Interconnection Cable 50 feet. P/N 2600-757
PRIMARY 6005
PRIMARY 6005
SECONDARY 6005
From Secondary 6005 if Installed (See below)
High
Voltage
Low
Voltage
Low
Voltage
Permanent wiring must be installed to the 6005 as required by local electrical codes (See the 115 VAC control box Wiring/Owner’s manual or
Solar control box Wiring/Owner’s manual to wire 6005). It is recommended that a licensed electrical contractor perform this work. Check local
building codes prior to installing any permanent wiring to ensure all wiring and connections comply with local electrical code requirements.
Position the desired control box on the wall, close enough to the 6005 so the primary actuator cable can be easily routed inside the box.
Make sure that the control box is mounted high enough off the ground that it will NOT come in contact with standing or flowing water. This
will damage the internal components. Secure the control box to the wall with appropriate hardware (not included). Control box has pre
drilled mounting holes. All power and control wires should be routed to control box in conduits with sweeps. Never run low voltage rated wire
insulation in the same conduit as high voltage rated wire insulation.
115 VAC Control Box
Dual 6005’s Connection (115 VAC or Solar)
