6005-065-M-12-17
11

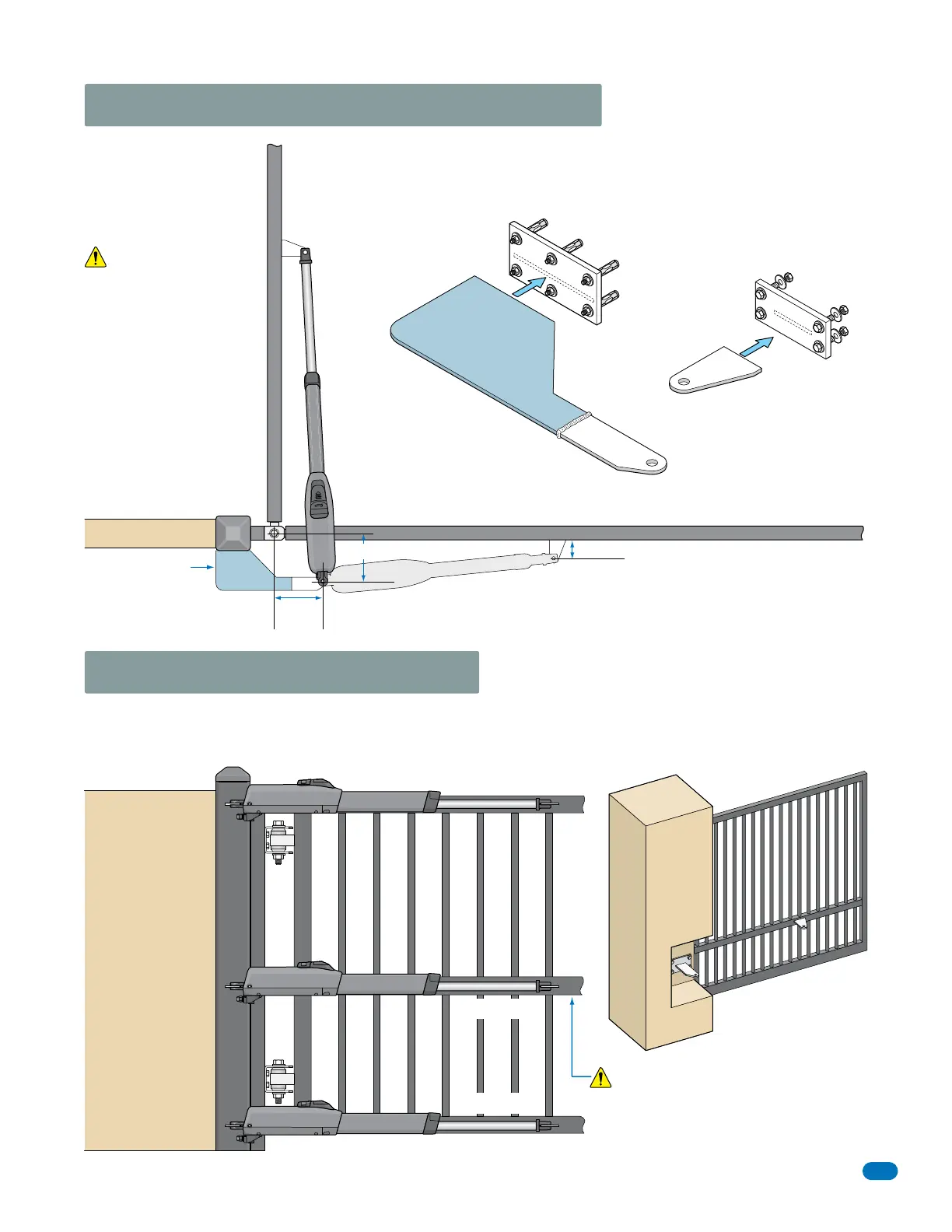

90° Layout “Opening to the OUTSIDE”
1 3/4” Min
Weld front and rear brackets directly to gate and metal support post if desired.
If mounting brackets with bolts to the gate and wall, weld reinforcing steel
plates to the brackets. Fully weld around entire brackets.
Operator Mounting Options
A support bar must span the entire length
of the gate to support the gate pickets.
The pickets will bend if not supported.
Support Bar
Gate in Closed Position
7 1/4”
7 1/4”
Addition to rear
bracket must be
fabricated to
reach post/wall.
Do not install the 6005
in fully extended
(Bottomed out) position.
This will damage the
arm. See next page to
prevent this from
happening.
Bottom Installation
Note: Make sure
that the operator is
mounted high
enough off the
ground that it will
NOT come in
contact with
standing or flowing
water. This will
damage the
operator.
Reinforcing steel plate
for bolts if desired.
(Not Supplied)
Weld directly
to gate OR
to steel plate
Note: The brackets must be perpendicular (Plumb) to the gate and
post/wall and horizontally level. Weld completely around brackets.
Mounting Brackets to Surfaces
Weld directly
to support post
OR to steel plate
Support Post
Reinforcing steel plate
for sleeve anchors
if desired.
(Not Supplied)
Closed Gate
Open Gate
Top
Middle
Bottom
Fabricated
Reinforced
Steel Plate
(Not Supplied)
Rear
Bracke
t
(S
up
plie
d)
Front
Bracke
t
(Supplied)
Recessed Mount
If the mounting post dimensions or the hinge position
do not allow the installation of the 6005, a recess should
be created in the mounting post to maintain the desired
dimensions. The recess should big enough for easy
installation, and use of the 6005’s manual release.
Mounting
Post
Recess
To Next Page
