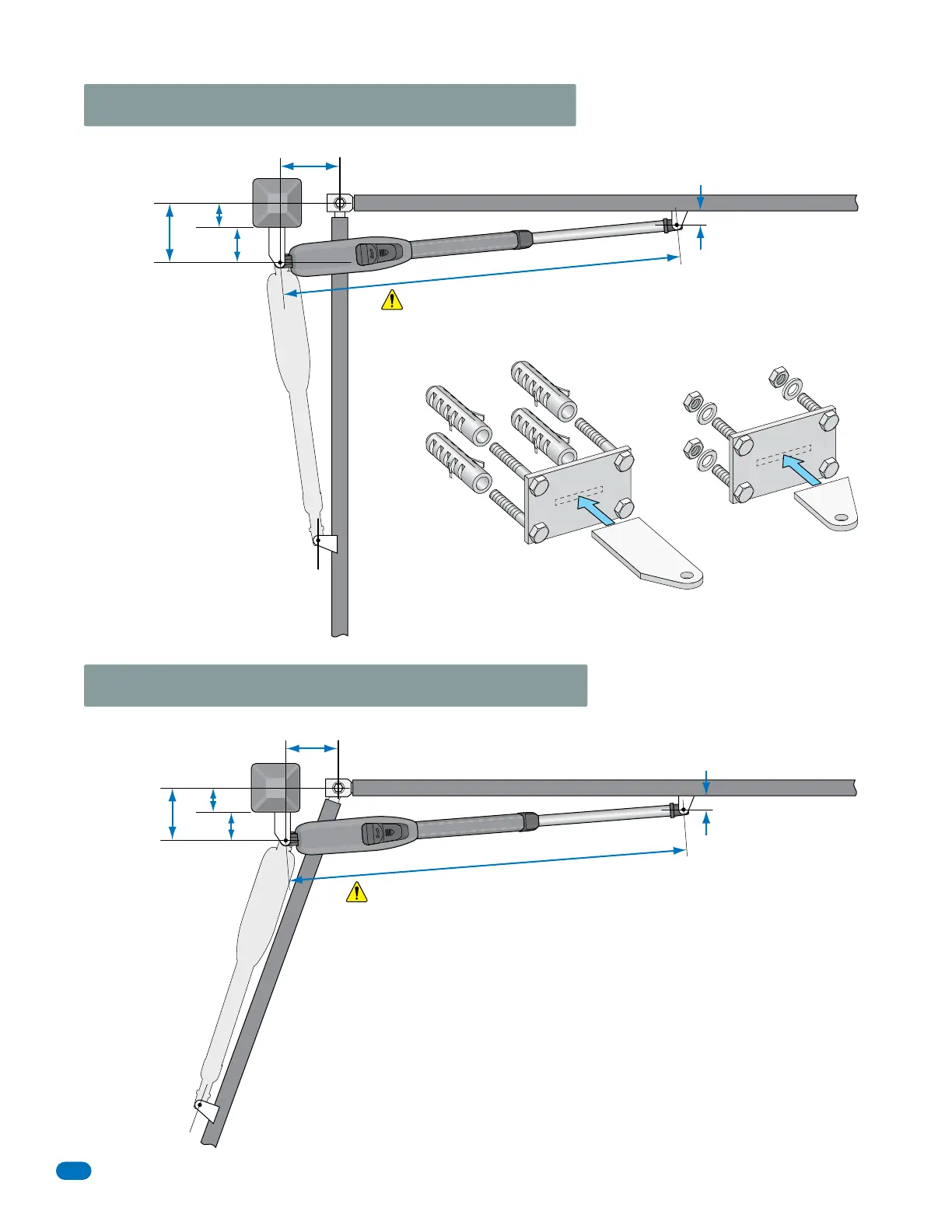

90° Layout “Opening to the INSIDE”
110° Layout “Opening to the INSIDE”
7 1/4”
Ideal
7 1/4”
Ideal
5”
Max
2 3/4”
Min
IMPORTANT:
A + B = 14 1/2”
1 3/4” Min
Open Gate
2 3/8”
Min
4 3/8”
Max
6 5/8”
Ideal
6 5/8”
Ideal
1 3/4” Min
Mounting Brackets to Surfaces
Rear
Bracket
Front
Bracket
Open Gate
1/4” Reinforcing
steel plates for
bolts if desired.
(Not Supplied)
Use appropriate
hardware to mount
steel plates.
(Not Supplied)
Weld front and rear brackets directly to gate and metal support post if desired.
If mounting brackets with bolts to the gate and wall, weld reinforcing steel
plates to the brackets. Fully weld around entire brackets.
A
A
B
B
If ideal dimensions cannot
be used, make sure the
difference between A and B
dimensions are no more
than 1 1/2” of each other
and add up to 14 1/2”.
IMPORTANT:
A + B < 14 1/2”
If ideal dimensions
cannot be used,
make sure the
difference between
A and B dimensions
are no more than
1 1/2” of
each other and
are less than
14 1/2” when
added up.
Closed Gate
Closed Gate
Do not install the 6005 in fully extended
(Bottomed out) position. This will damage the
arm. See page 12 to prevent this from happening.
Do not install the 6005 in fully extended (Bottomed out) position. This will
damage the arm. See page 12 to prevent this from happening.
