DKS 6005 - 6005 Primary;Secondary 4302 Circuit Board Connection

6005-065-M-12-17
18
Secondary Actuator
Primary Actuator
6005 Terminal4302 Circuit Board Terminal
Secondary Connection
ONLY
Primary
Connection
ONLY
1
7
6
5
4
3
2
12345
6
7
89
10 11 12
13
14 15
16 17 18 19
20
1
7
6
5
4
3
2
Brown 1
Blue 2
Red 3
Yellow 5
Green/Yellow 7
4302

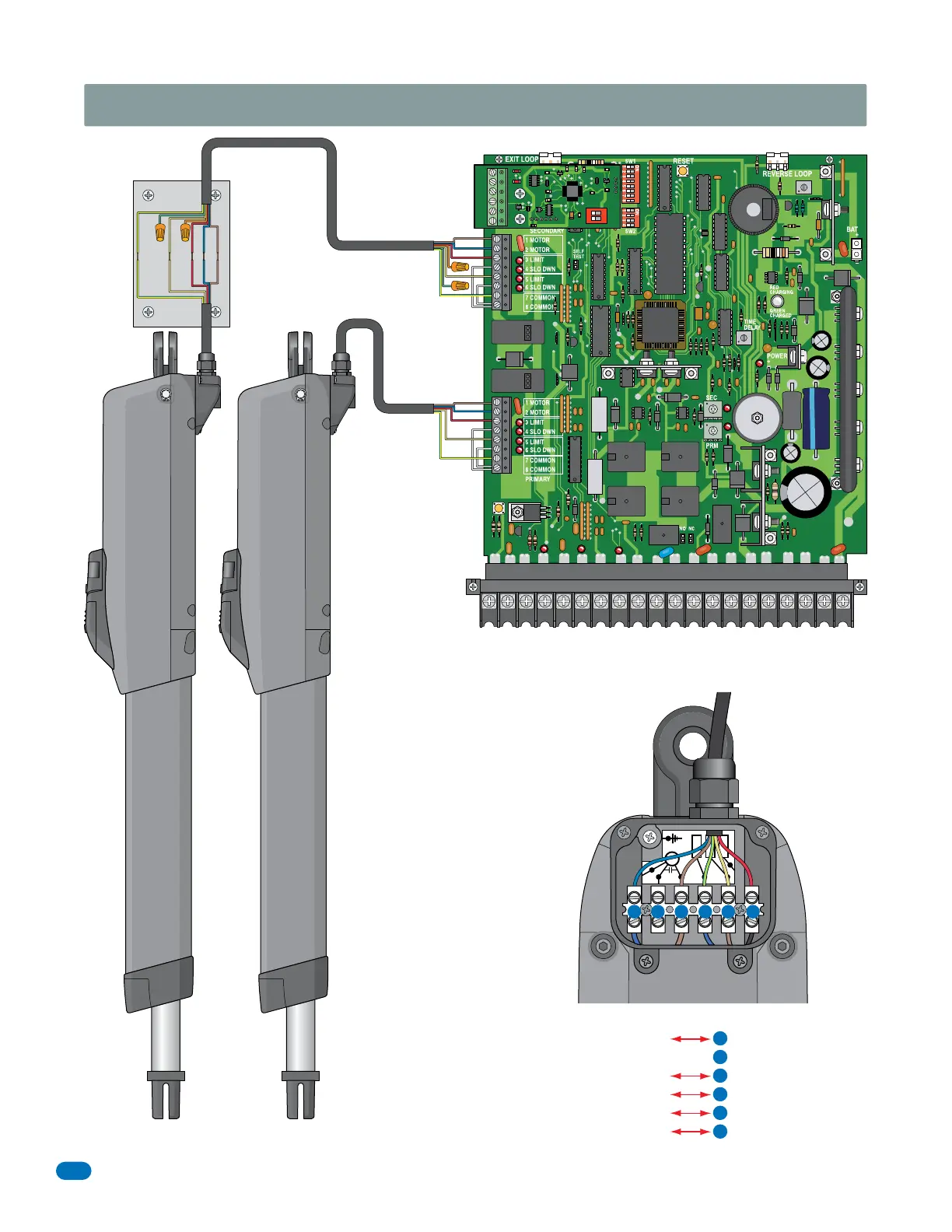

6005 Primary/Secondary 4302 Circuit Board Connection
Close-up of Wiring in 6005
1 (M) Motor Blue
2 (M) Not Used
3 (M) Motor Brown
4 (COM) Common Blue
5 (FCC) Limit Switch Brown
6 (FCA) Limit Switch Black
1 Blue Motor 1
3 Brown Motor 2
4Green/Yellow Common 7
Yellow limit switch 5
Red limit switch 3
FULL
OPEN
OB
CB
Open
Beam
Close
Beam
GND
GND
SW1
1
ON
2
1476-010
F
C
A
F
C
C
C
O
M
M
Junction Box
Brown 1
Blue 2
Red 3
(Terminated) Orange Wire
Yellow 5
(Terminated) Green Wire
Green/Yellow 7
Factory Wired Jumpers 4 to 8, 6 to 8
Factory Wired Jumpers 4 to 8, 6 to 8
6
5
4321
DoorKing 7-Wire
Interconnection Cable
5-Wire Cable
Blue Brown Red YellowYellow Green/ Yellow
Green/
Yellow
Blue
Brown
Red
(Terminated) Orange Wire
(Terminated) Green Wire
