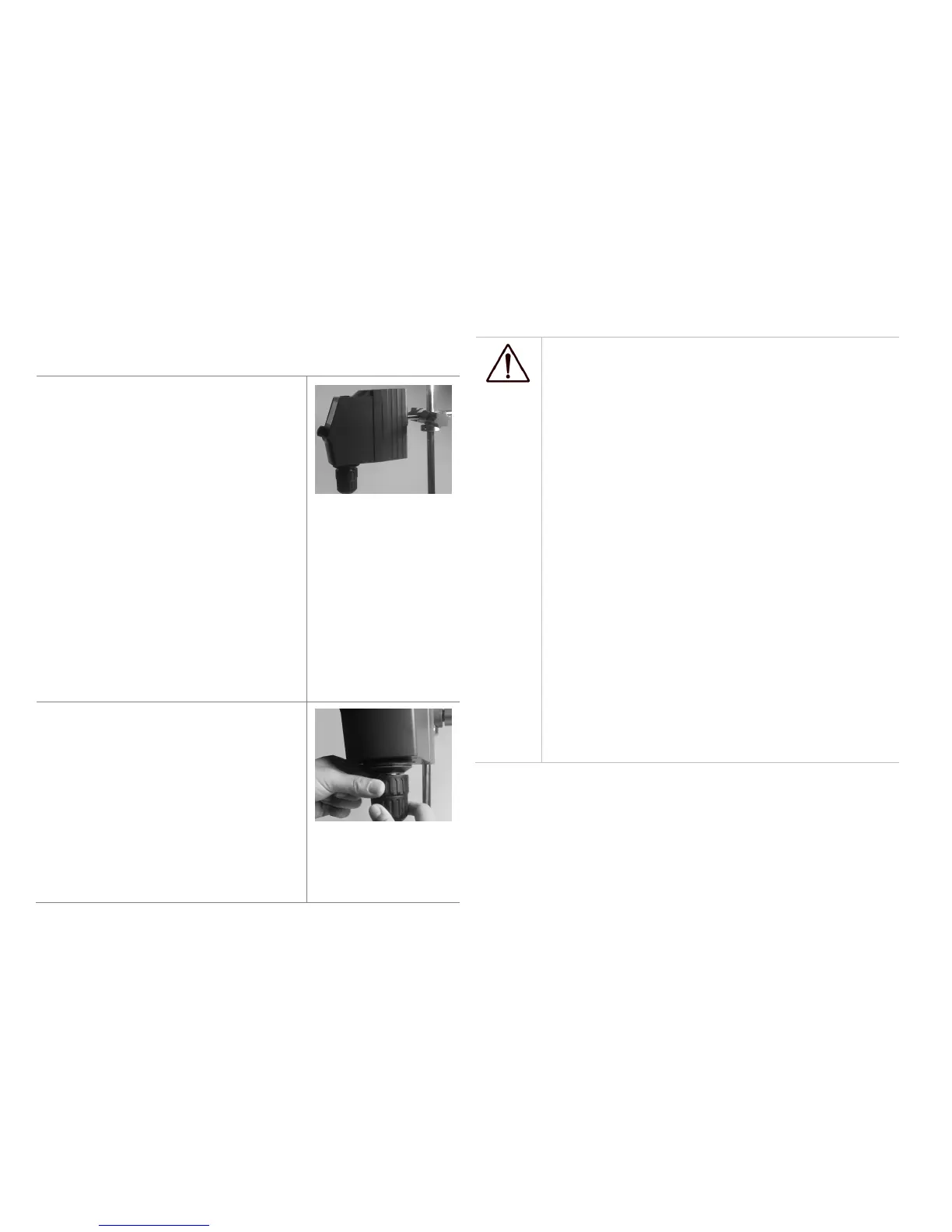

4. System Assembly
a. Install stand
The stand must be assembled
according to the following
instructions. Adjust the height
of the main unit, and the
distance from main unit to the
support holder by rotating the
locking device. Anti-drop
protector can be adjusted up or
down, ensure the locking
position is suitable for fixing
the main unit, and then attach
the main unit to the stand.
Figure 1
b. Install stirring impeller
Plug the stirring impeller into
the drill chuck, and adjust the
depth of stirring impeller into
vessel. Rotate the drill chuck
with your fingers to fix the
stirring impeller.
Figure 2
Note:
1. Overhead stirrer is a high-speed running
device. The system are required to lock
securely the corresponding components in
each step of the assembly to avoid any
movement of the main unit or stirring
impeller which would be caused harm or
damage to peripheral instrument and
personnel.
2. The stand is a support device for overhead
stirrer. The corresponding components are
required to be locked securely to avoid any
movement which would be caused harm or
damage.
3. When install main unit and anti-drop
protector, take care of your fingers to avoid
harm.
