LCD Keypad Installation Guide 15
ABC SECURITY
ARM DISARM
ABC SECURITY
ENTER CODE: –
ABC SECURITY
ALL? NO YES
Select NO to arm or disarm individual areas.
Select YES, or simply wait, to automatically arm or disarm all areas for which you are authorized.

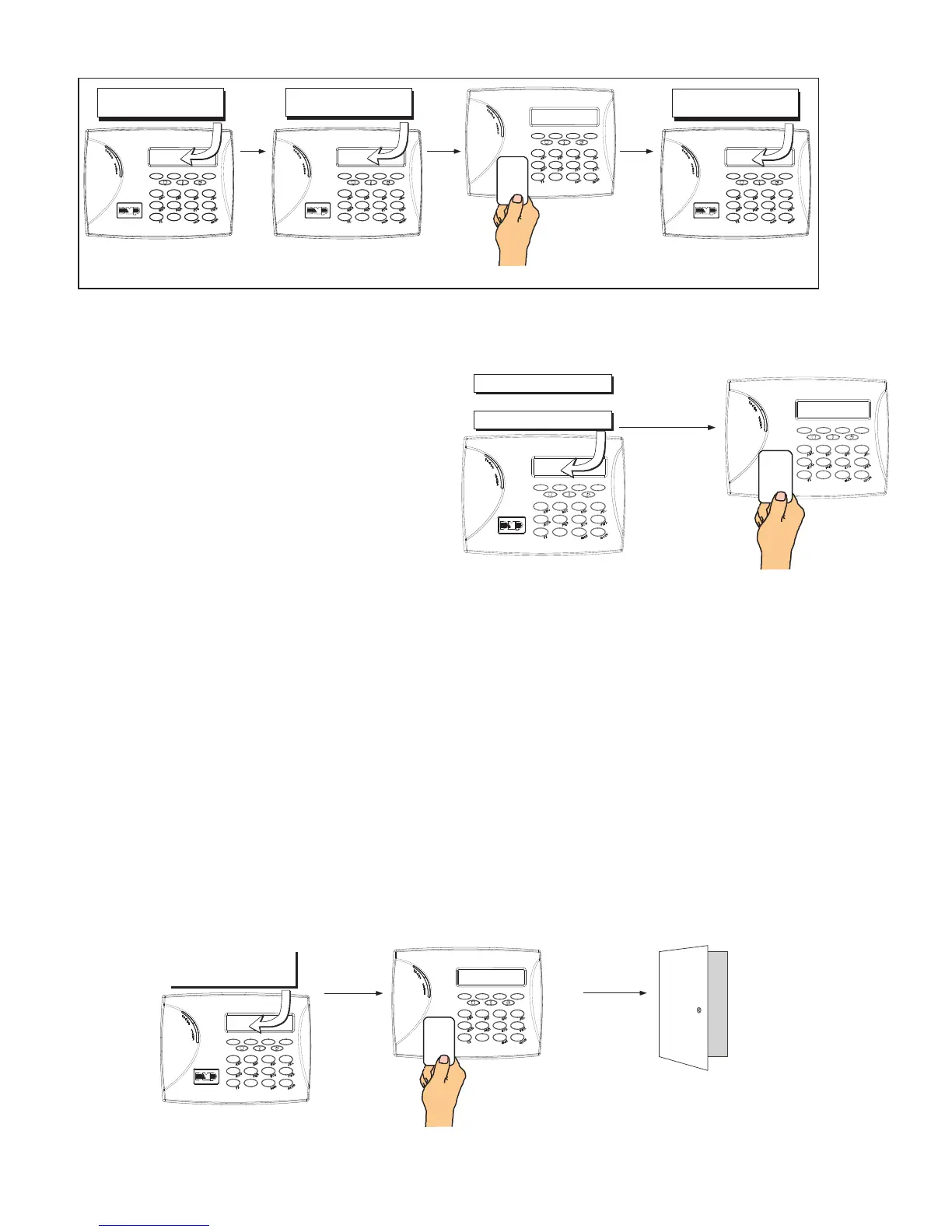

Figure 9: Area Arming and Disarming
All/Perimeter System Arming and Disarming
Present your card to the reader
or press COMMAND, the keypad
displays DISARM? or PERIM ALL
(when arming). Press the Select
key under the desired option.
The keypad displays ENTER
CODE: -. Present your card to
the reader. Once validated by
the system, the selected areas
arm or disarm automatically. On
7073/7073A/7173 keypads, the
Door Strike relay then activates.
Home/Away System Arming and Disarming
Present your card to the reader. If the system is armed, once the card is validated, all
areas are disarmed and the keypad displays ALL SYSTEM OFF. If the system is disarmed
when you present your card, once the card is validated, HOME SLEEP AWAY displays.
Manually select HOME, SLEEP, AWAY or after a short time-out, all areas automatically
arm in the AWAY mode.
Keypad Door Strike
Area and All/Perimeter Door Strike
From the Status List, present your card to the reader. Once the system validates
the card, the Door Strike relay activates. Home/Away systems only activate the
7073/7073A/7173 Door Strike relay when arming and disarming.
ABC SECURITY
MON 10:20 AM
While the keypad displays the
Status List, present your access card.
Typically, the relay activates for 5 seconds during which
time you can open the door. Once you open the door,
you have 40 seconds to exit and close the door before
