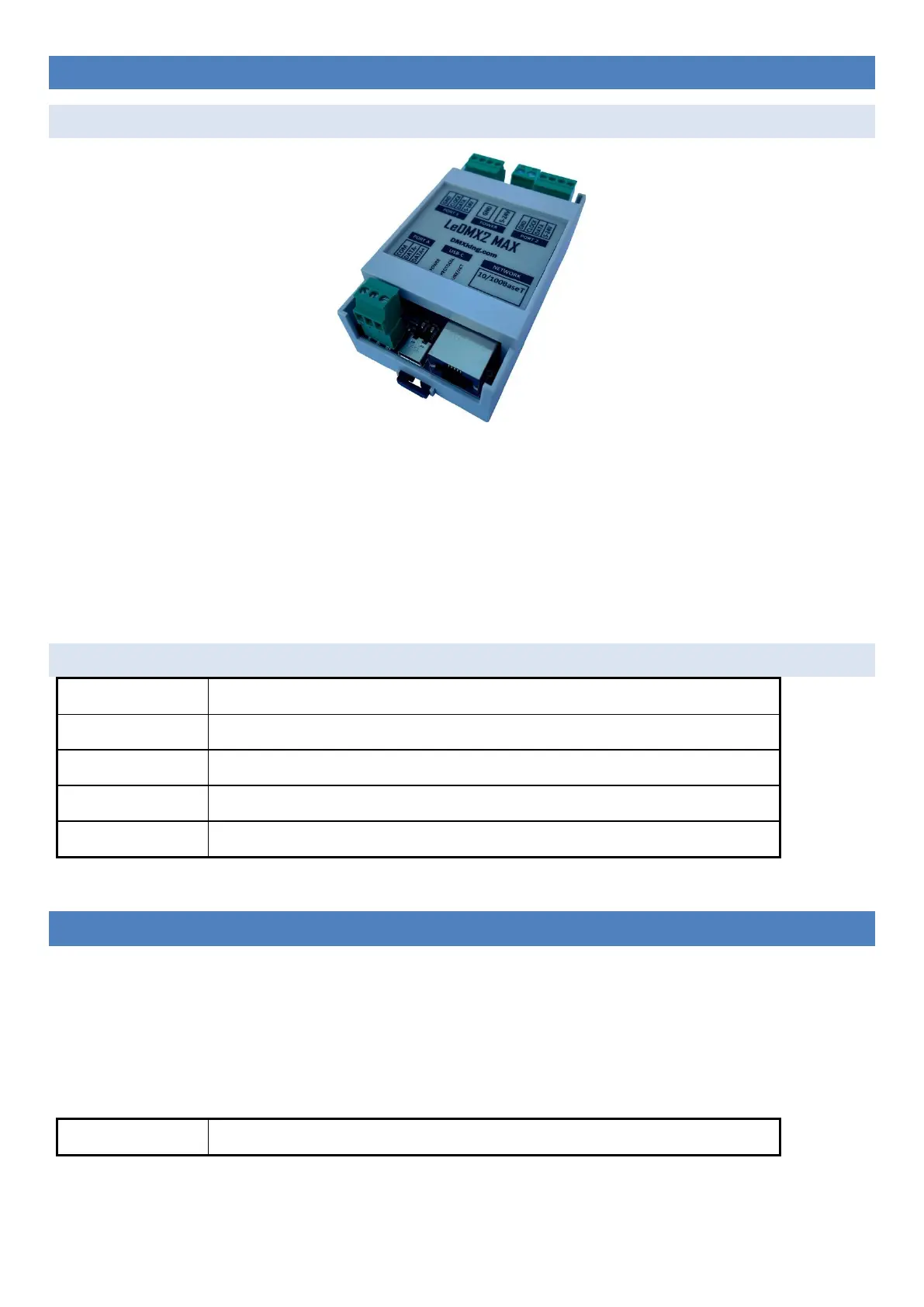

2. CONNECTIONS
LEDMX2 MAX
− DC Power Input – Supply polarity marked on board. Note supply voltage is marked. Pay careful attention!
− Ethernet 10/100Mbps RJ45 socket
− 2x 4way 3.5mm pitch pluggable terminal blocks for pixel strip outputs. GND, Clock [CK], Data [DA], V+
− 1x 3way 3.5mm pitch pluggable terminal block for DMX512 port.
− Warning not all pixel strips/products use the same wire color code. Double check the signal names match wire colors.
STATUS LED TABLE
LED
Indication
Protocol
Protocol activity. Flash Red = Art-Net/sACN. Solid Red = Bootloader mode
Link/Act
Network activity. Green = Link, Flash = Traffic
Port 1
Pixel port 1 activity
Port 2
Pixel port 2 activity
3. DEFAULT CONFIGURATION
LeDMX2 MAX units ship with default static IP address settings. Please reconfigure for your local area network requirements before
use.
Default configuration is for WS2811/2812 pixel output with automatic RGB color order correction and 1 DMX universe mapping
to 170 RGB pixels per output.
Network Tab
Parameter
Default Setting
