PORT TAB – PIXEL OUTPUTS
Port tab – v3.6 firmware and earlier

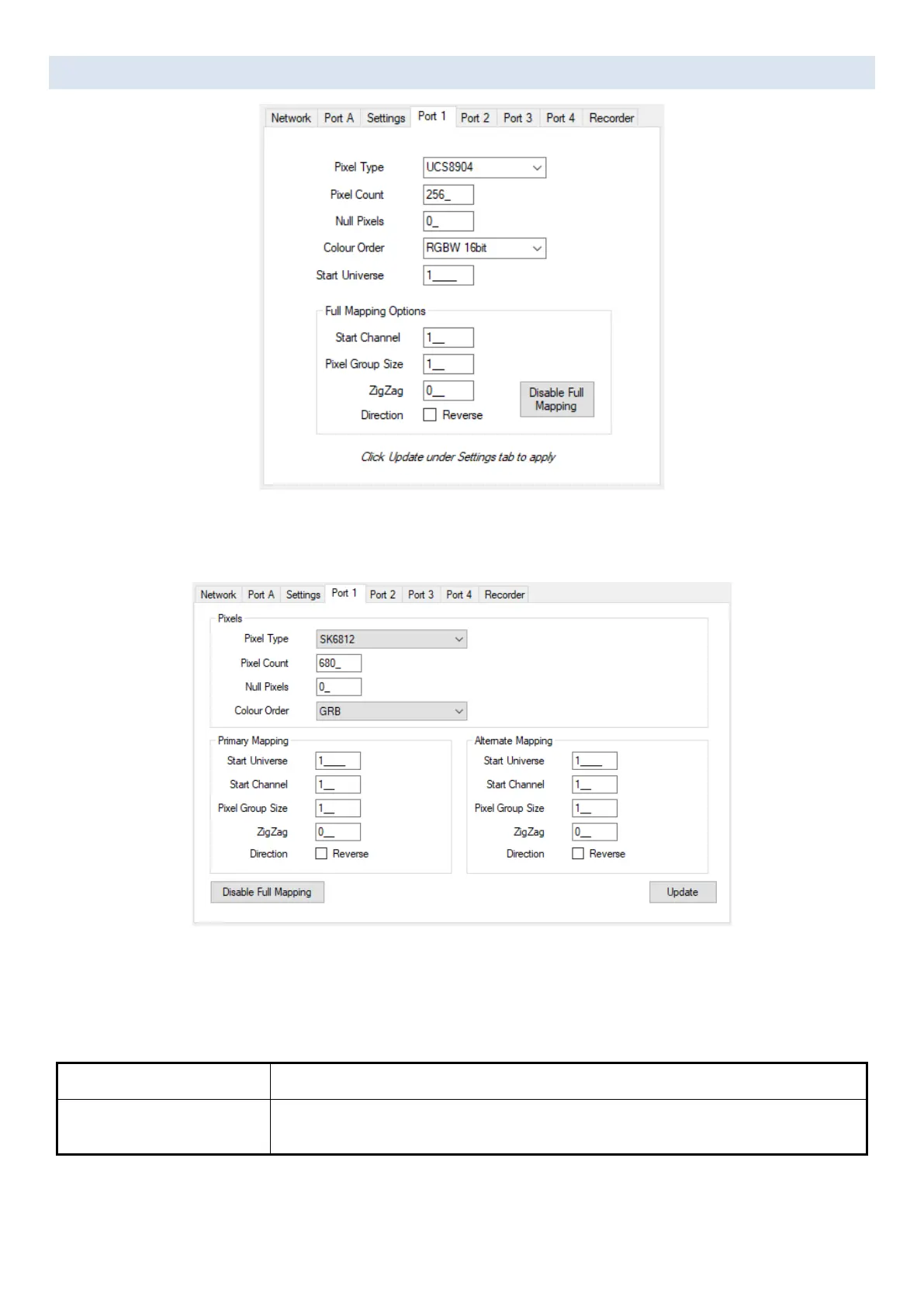

Port tab
Make changes as required then click “Update” in the Settings Tab to save settings in your LeDMX MAX unit. The Disable Full
Mapping button returns Start Channel, Pixel Group Size, ZigZag and Direction to defaults that ensure Full Mapping mode is not
automatically activated.
Parameter
Usage
Pixel Type
Must match your connected Pixel type. There are clock speed options for many pixel types
and we recommended slower rates for longer cable runs.
