PORT TAB – DMX512 PORT

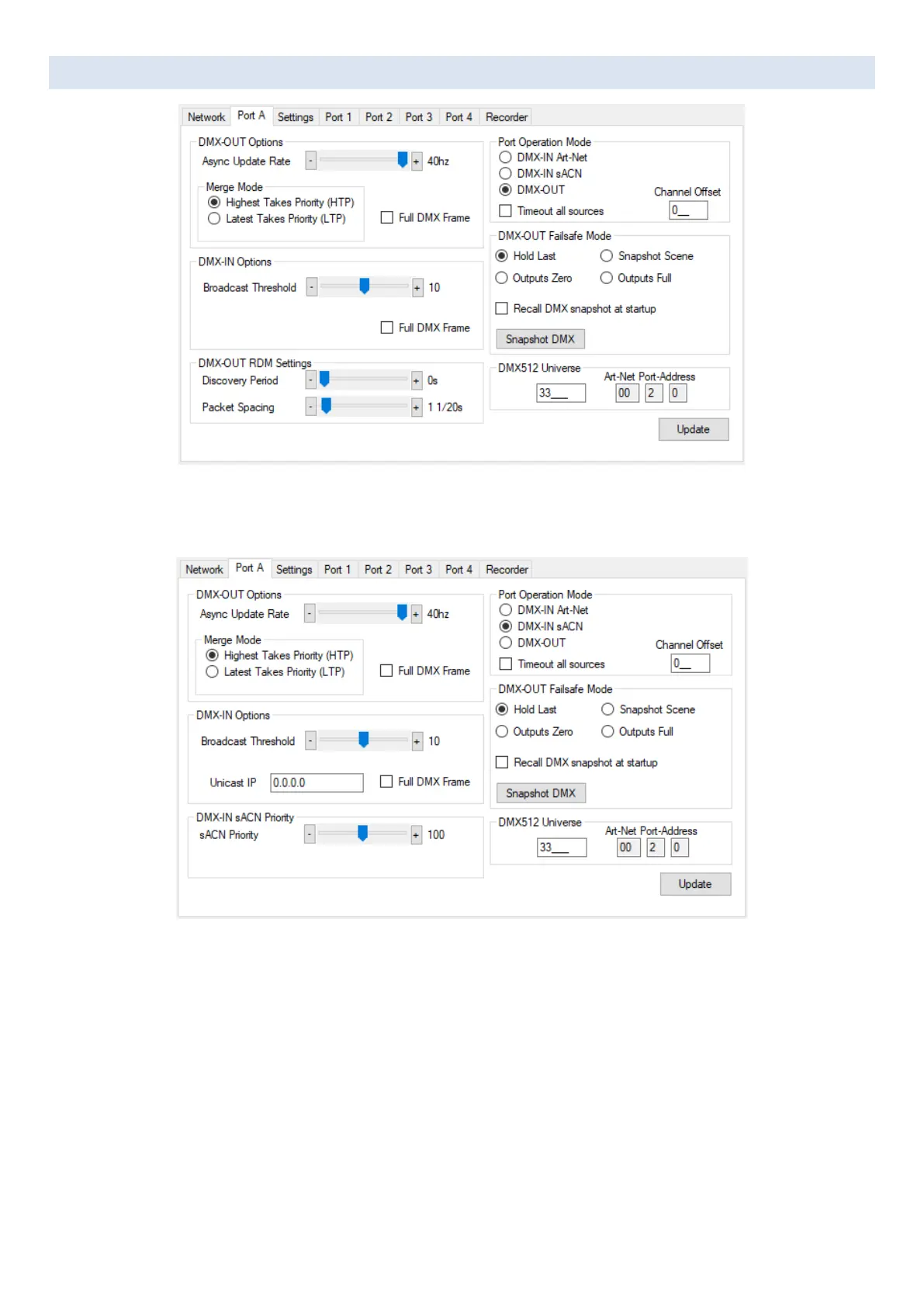

Port Operation Mode: DMX-OUT
Port Operation Mode: DMX-IN sACN with sACN Priority 100
DMX512 ports can be individually configured as either DMX-OUT, with automatic dual sACN/Art-Net protocol support, or DMX-
IN, with manually selected sACN or Art-Net protocol. When configured as DMX-IN a single Unicast IP address destination may be
specified but in the majority of applications leaving this field at 0.0.0.0 is appropriate.
Timeout all sources can be used to override default ArtNet defined behavior of holding the last sent or received frame forever.
• DMX-OUT mode: Whenever 2 sources are present and being merged together a 2
nd
source will always timeout when
the stream stops. In DMX-OUT mode if Timeout all sources is unchecked and Hold Last mode selected the output will
hold last frame forever. Timeout all sources checked and Failsafe Mode other than Hold Last selected will cause the
output to change to Zero, Full or Snapshot Scene.
