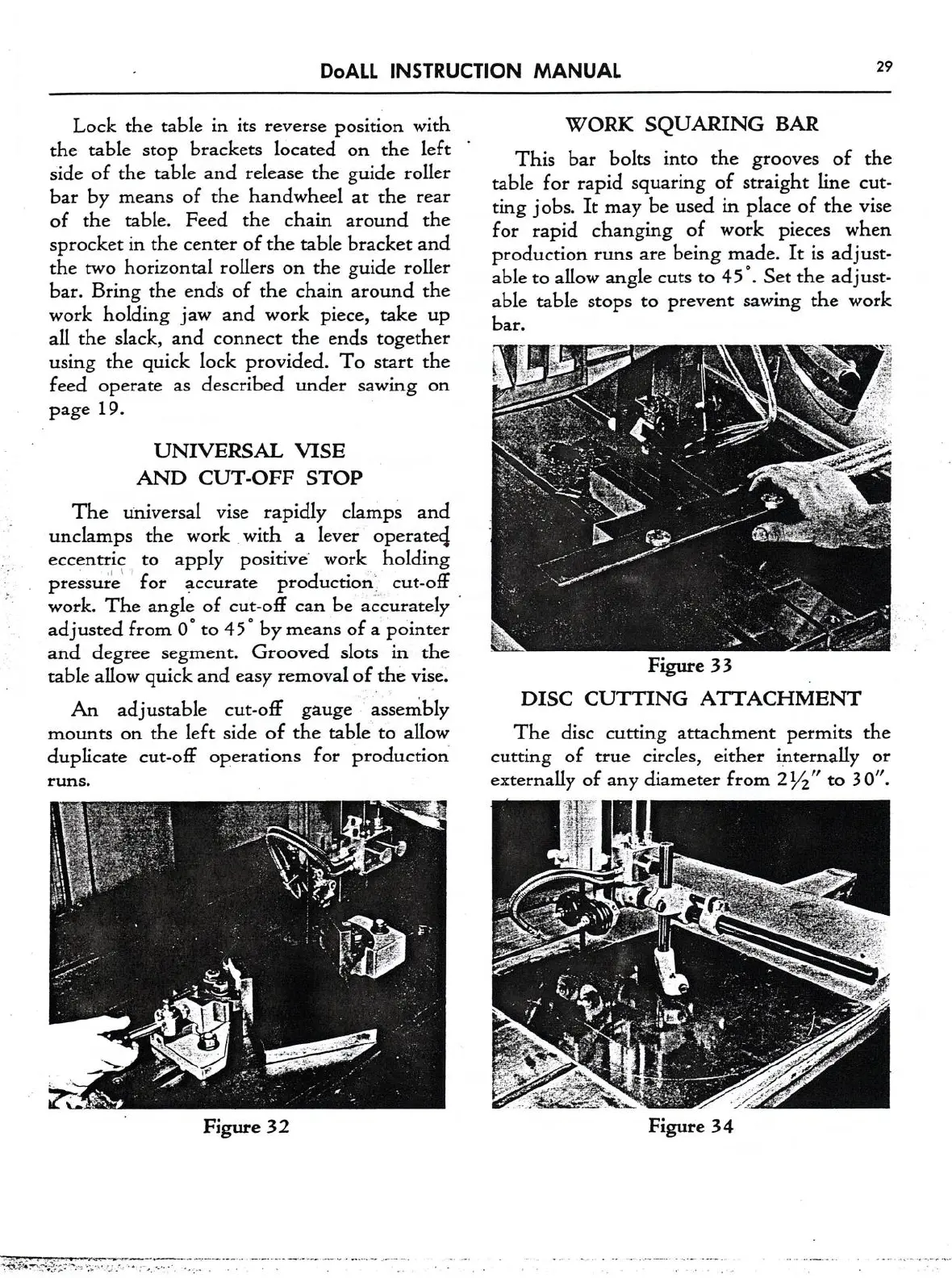

DoAI.L INSTRUCTION MANUAL 29
Lock the table in its
reverse
position with
the table stop brackets located
on
the left
side of the table and release the guide roller
bar by
means
of the handwheel
at
the
rear
of the table. Feed the chain around the
sprocket in the
center
of the table bracket and
the
two
horizontal rollers
on
the guide roller
bar. Bring the ends of the chain around the
work holding jaw and work piece, take up
all the slack, and
connect
the ends together
using the quick lock provided. To
start
the
feed operate
as
described under sawing
on
page 19.
UNIVERSAL VISE
AND
CUT-OFF STOP
The universal vise rapidly clamps and
unclamps the work with
a
lever operated
eccentric
to
apply positive‘ work holding
pressure for accurate production cut-of
work. The angle of cut-off
can
be accurately
adjusted from 0°
to
45° by
means
of
a
pointer
and degree segment. Grooved slots
in
the
table allow quick and easy removal of the vise.
An
adjustable cut-ofli gauge assembly
mounts
on
the left side of the table
to
allow
duplicate cut-ofl: operations for production
runs.
WORK SQUARING BAR
This bar bolts into the grooves of the
table for rapid squaring of straight line
cut-
ting jobs.
It
may be used in place of the vise
for rapid changing of work pieces when
production
runs
are
being made.
It
is adjust-
able
to
allow angle
cuts
to
45°. Set the adjust-
able table stops
to
prevent sawing the work
bar.
DISC
CUTTING
ATTACHMENT
The disc cutting attachment permits the
cutting of
true
circles, either internally
or
