122
UNDERSTANDING YOUR INSTRUMEN
T PANEL

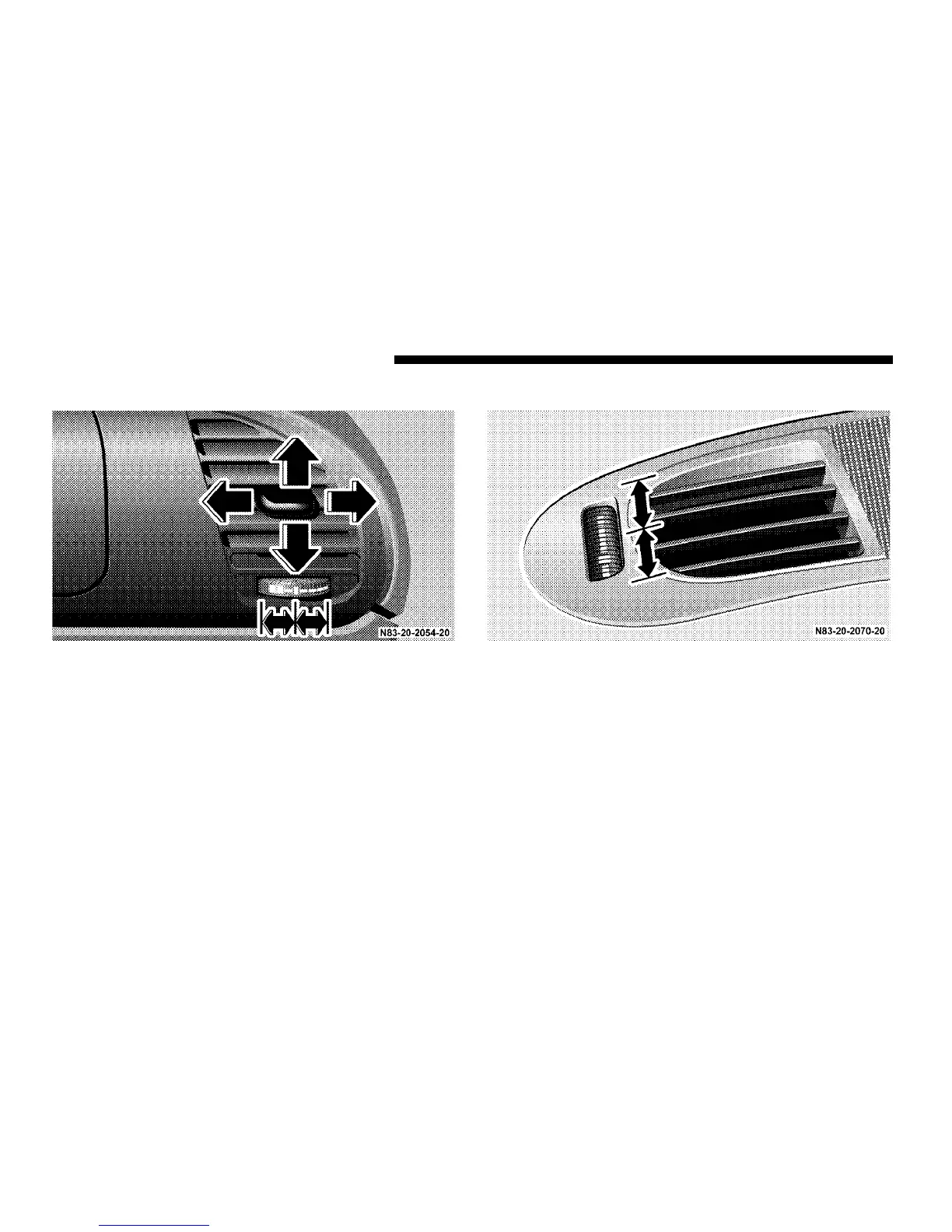

Side Air Vents and Center Air Vents
To open, turn the thumbwheel outwards.
To close, turn the thumbwheel inwards.
Intermediate settings ar
e possible.
Upper Air Vents
The upper air vents supply fresh air (not heated) to the
passenger/load compartment.
To open, turn the thumbwheel for
wards.
To close, turn the thumbwheel rearwards.
