6
INTRODUCTION

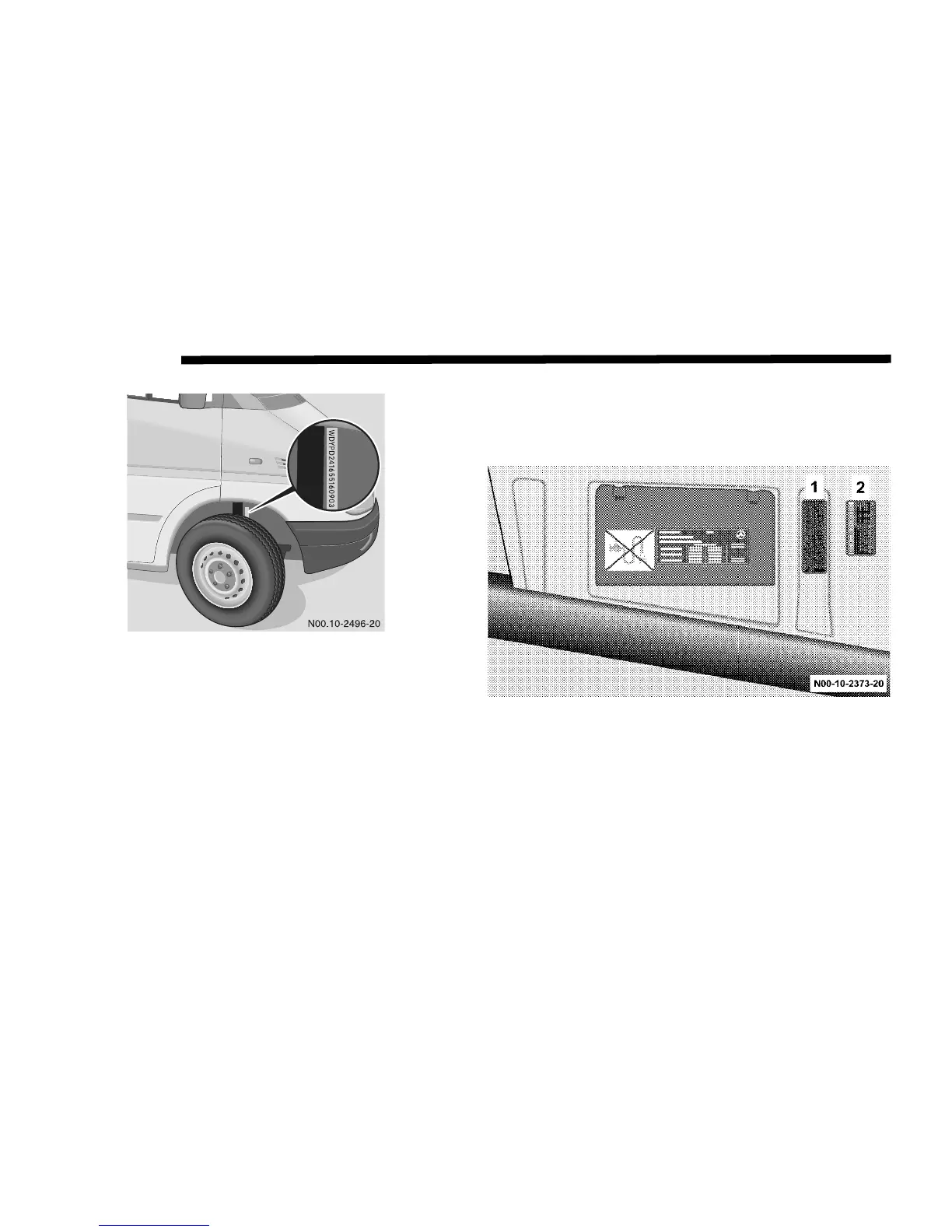

Vehicle identification number
(location: on the chassis,
right hand).
VEHICLE SAFETY CERTIFICATION LABEL,
SAMPLE AND LOCATION
Location: below the driver’s seat on an
outward facing
position of the mounting pillar.
Incomplete vehicle certific
ation label for
chassis/cab.
(1)
Certification Label (vehicle identification number,
permissible weig
hts) (2)
