UNDERSTANDING THE FEATUR
ES OF YOUR VEHICLE
75
3
Place the key in position
2 in the ignition lock.
To open the window:
Keep switch pressed downward until the window has
reached the desired position.
To close the window:
Keep switch pres
sed upward until the window has
re
ached the desir
ed position.

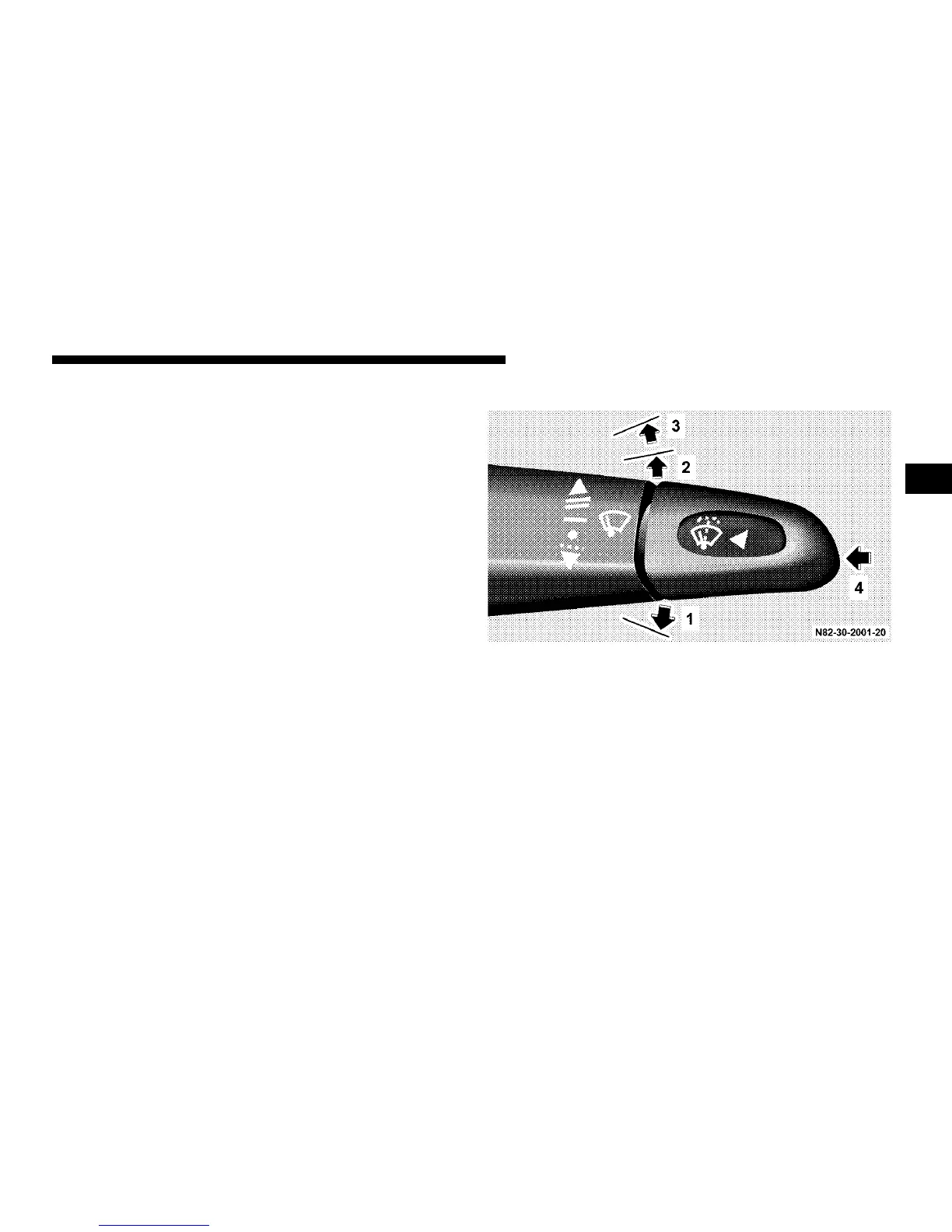

WINDSHIELD WIPER SWITCH
Intermittent wipe and rain
sensor (optional) (1)
Normal wipe (2)
Rapid wipe (3)
Windshield wipe
r system
and headlamp cleaning
system (optional) (
4)
74
