MAINTAINING YOUR VEHICLE
281
7

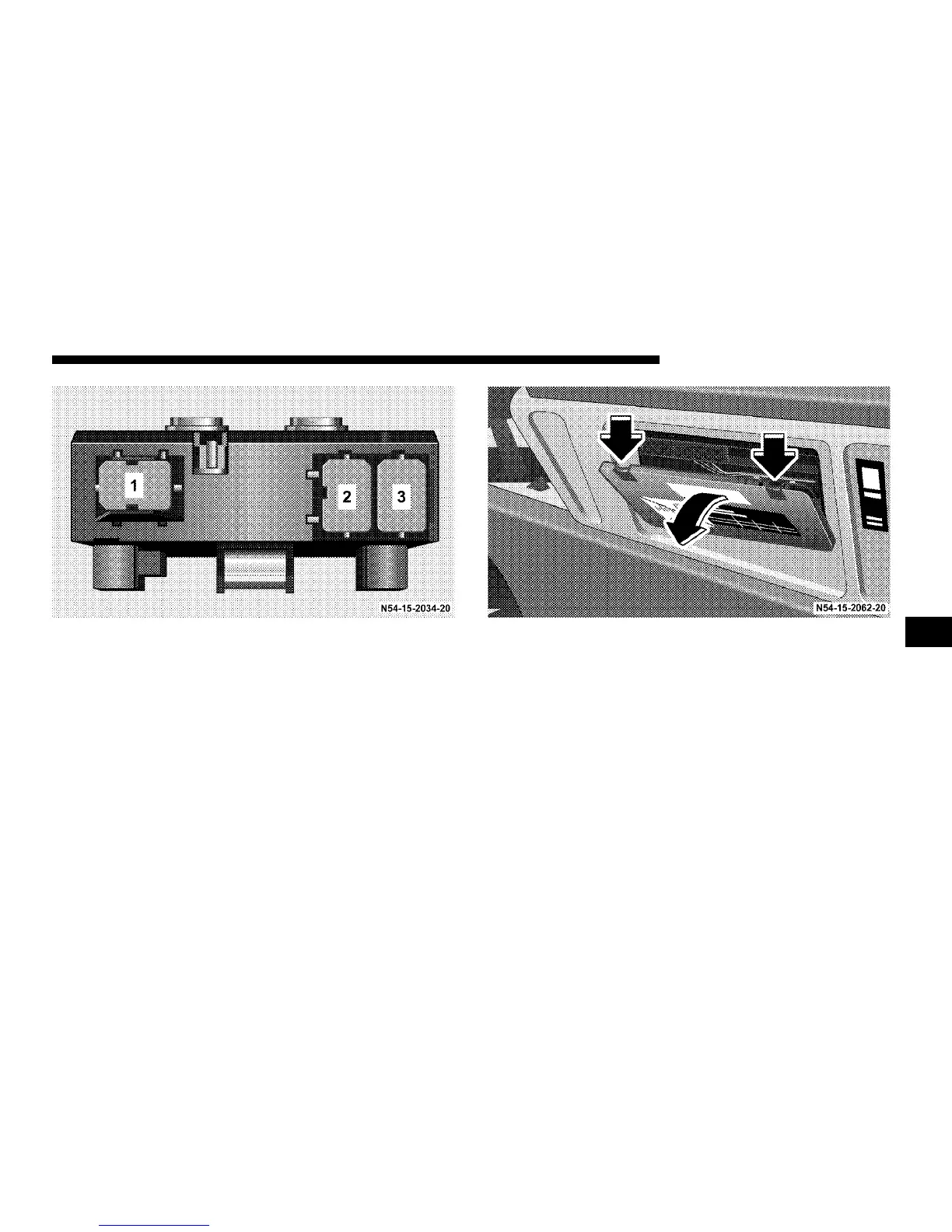

Relay Assignment, St
andard Equipment
Windshield wiper motor (W) (1
)
Diesel engine control unit (M) (2)
Turn signals (B) (3)
Fuse and Relay Opti
onal Equipment
The cover is located below the driver’s seat.
Remove cover:
1.
Press both detent springs down and remove cover.
Install cover:
2.
Position cover at bottom and engage both detent
springs.
