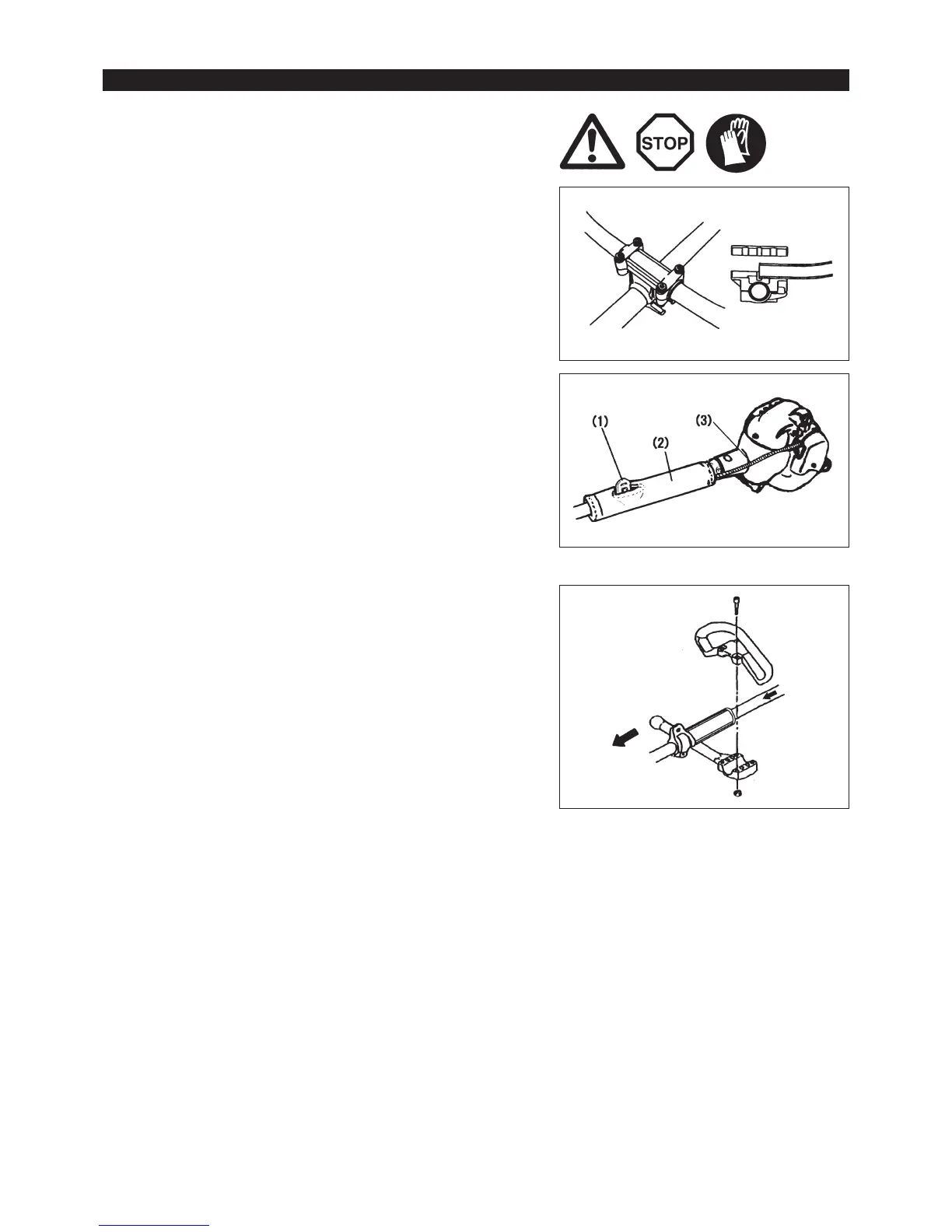

MOUNTING OF HANDLE
CAUTION:Beforedoinganyworkonthebrushcutter,alwaysstoptheengineand
pull the spark plug connector off the spark plug.
Always wear protective gloves!
CAUTION:Startthebrushcutteronlyafterhavingassembleditcompletely.
MS-252
MS-252
MS-253
to Engine
Arrow mark
For machines with Loop Handle models
Fix a barrier to the left side of the machine together with the handle for operator –
protection.
Make sure that the grip/barrier assembly is fitted between the spacer and the –
arrow mark.
WARNING:Donotremoveorshrinkthespacer.Thespacerkeepsacertain
distance between both hands. Setting the grip/barrier assembly close to
the other grip beyond the length of the spacer may cause loss of control
andseriouspersonalinjury.
For machines with U Handle models
Place the handle-fixing metal so that the handle with the control lever will be –
positionedontheright(therighthandgripside)asviewedfromtheengineside,
and the other handle on the left side.
Fit the groove of the handle-fixing material to the handle end. Fix provisionally the –
attached metal by hexagon socket bolt supplied.
Adjustthehandletoaneasytooperateposition,andtightensecurelythefour –
hexagon socket bolts uniformly on the right and left by Allen wrench.
Wrap the waist pad around the shaft so that the hanger (1) will protrude through –
the slit in the waist pad and the control cable and the cords (3) will also be
wrapped under the waist pad (2).
