Dolmar MS-252 - Assembly of Engine and Shaft

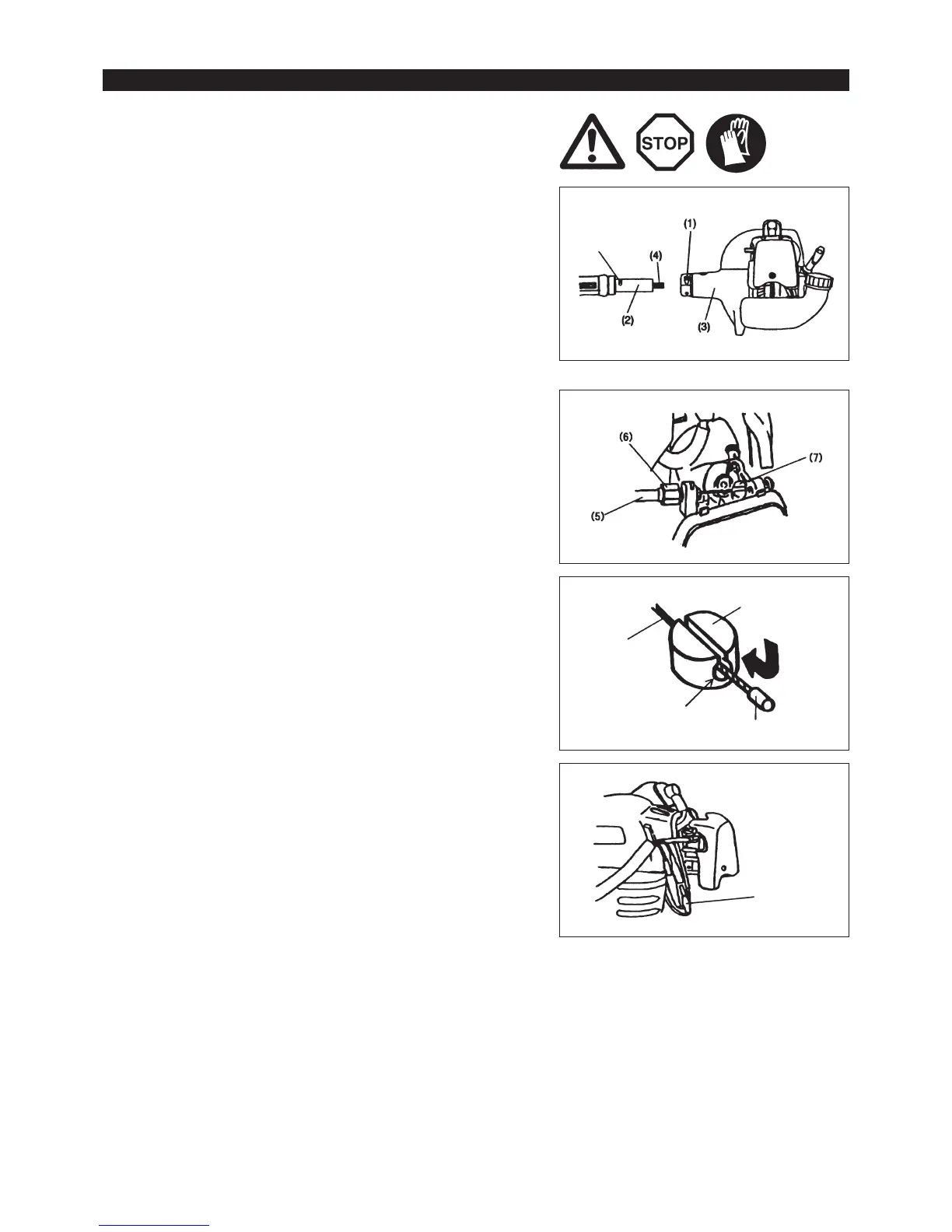

ASSEMBLY OF ENGINE AND SHAFT
CAUTION:Beforedoinganyworkonthebrushcutter,alwaysswitchoffthemotor
and pull the spark plug connector off the spark plug.
Always wear protective gloves.
CAUTION: Startthebrushcutteronlyafterhavingassembleditcompletely.
Loosen the two bolts (1) and insert the main pipe (2) into the case clutch (3). –
Insert it up to the arrow-mark position. (Refer to the sketch on the right.) –
Ifitisdifficulttoinsert,turnthespline(4)alittleandreinsert.
Tighten the two bolts (1) uniformly on the right and left by Allen wrench supplied. –
Arrow-mark
Swivel
Control cable
Round hole
End fitting
Connectors
How to mount the control cable
Remove the air cleaner cover. –
Putthecontrolcable(5)intotheadjustingcable(6).Shifttheswivel(7)andput –
thecableintotheswivel.Atthistime,becarefulthattheroundholeintheswivel
is oriented toward the fitting at the inner wire end.
Release the swivel and make sure that the inner wire fitting is placed in the hole. –
Mount the air cleaner cover. –
Connection of the switch cord
Connect the switch cords to the two cords from the engine by inserting one into –
the other.
Fix the cord connector by clamp. –
Insert
9
