Dolmar MS-252 - Mounting of Cutter Blade or Nylon Cutting Head

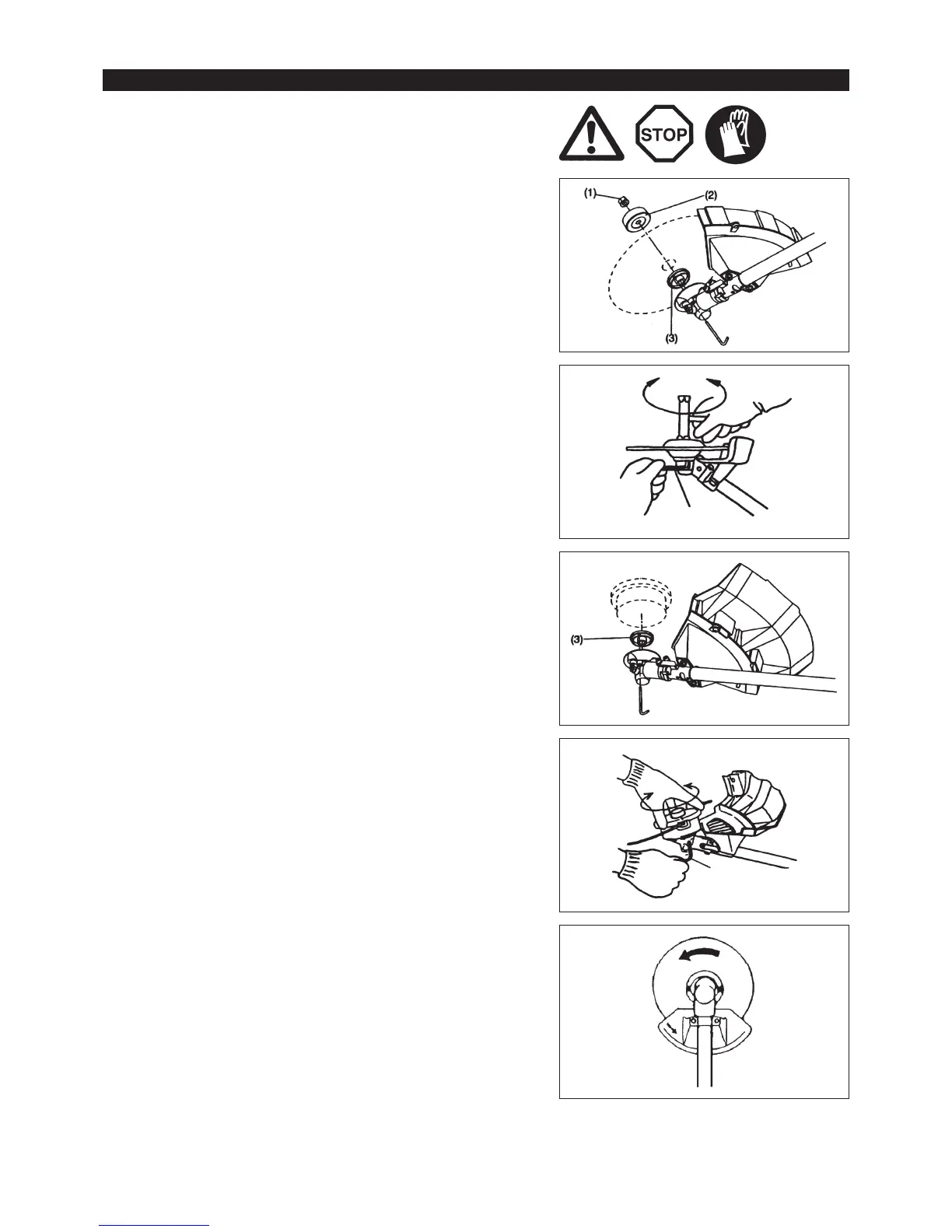

MOUNTING OF CUTTER BLADE OR NYLON CUTTING HEAD
Turnthemachineupsidedown,andyoucanreplacethecutterbladeorthenylon
cutting head easily.
Loosen Tighten
Hex wrench
Hex wrench
Tighten
Loosen
Rotation
Insert the hex wrench through the hole in the gear case and rotate the receiver –
washer (3) until it is locked with the hex wrench.
Loosen the nut (1) (left-hand thread) with the socket wrench and remove the nut –
(1),andclampwasher(2).
With the hex wrench still in place.
Mount the cutter blade onto the shaft so that the guide of the receiver washer (3) –
fits in the arbor hole in the cutter blade. Install the clamp washer (2) and secure
the cutter blade with the nut (1).
[Tighteningtorque:1323Nm]
NOTE: Alwaysweargloveswhenhandlingthecutterblade.
NOTE: Thecutterbladefasteningnut(withspringwasher)isaconsumablepart.If
thereappearsanywearordeformationonthespringwasher,replacethe
nut.
NOTE: Theclampwasher(2),andnut(1)arenotnecessaryformountingthenylon
cutting head. The nylon head should go on top of the receiver washer (3).
Screw the nylon cutting head onto the shaft. –
Make sure that the blade is the left way up. –
12
