27

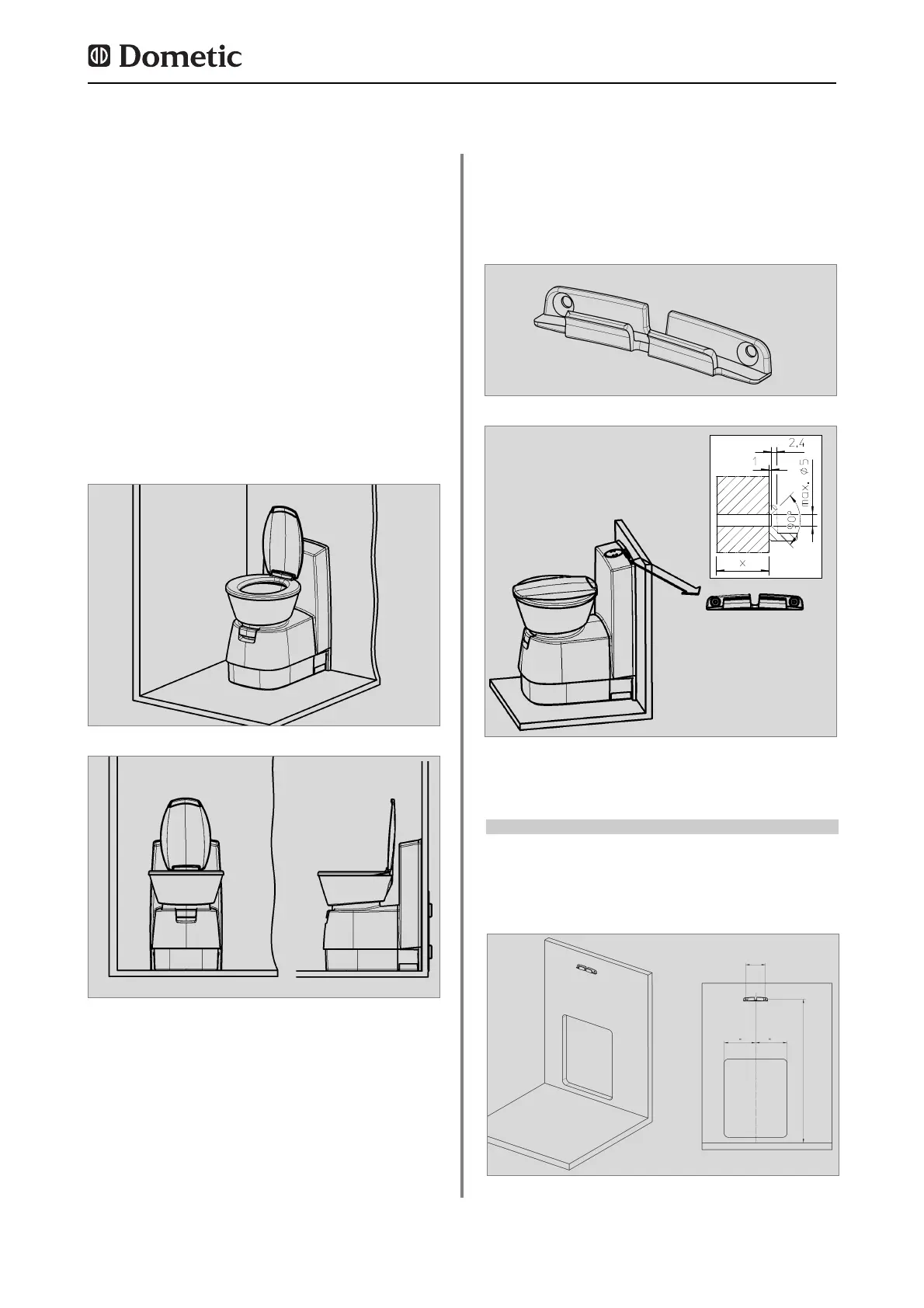

Installing the toilet
The CTW 4xxx model has an integrated water
tank, while the CTS 4xxx model does not.
The control and operator panel is integrated in
the housing with these models.
Both models can be installed directly against
the room wall (see Fig. below). To fit the toilet
and the console, a previously installed wall
holder is used (see Section 4.3.2.1).
4.3.2 Installing the CTS 4xxx,
CTW 4xxx and CTLP 4xxx toilets
Fig. 16
Fig. 17
4.3.2.1 Fitting the wall holder
Fit the wall holder (Fig. 18) in the designated
position (see table, Fig 20).
Fig. 18
Fig. 20
a
b
Fitting height of the wall holder:
Model a b
CTW / CTS 4xxx 90 mm 651.5 mm
CTLP 4xxx 90 mm 479.5 mm
Fig. 19
Detail screw
