31
Installing the toilet
Fig. 31
Fig. 30

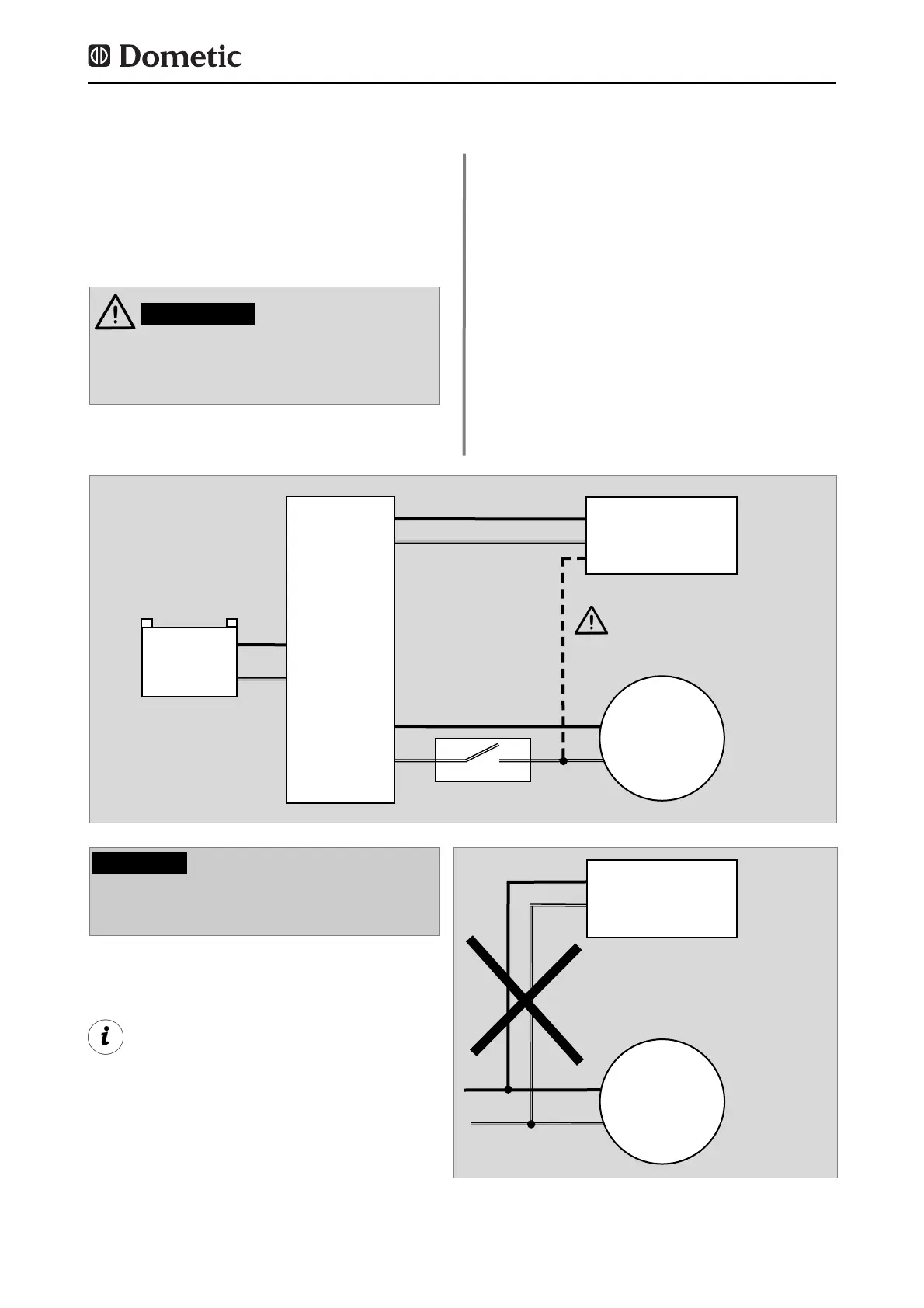

4.7 Electric connection
4.7.1 System diagrams
4.7.1.1 General system diagram
Electric connection must be carried out
by trained staff.
CAUTION!
Note the following instructions before installa-
tion of the cassette toilet:
! Connect the toilet to a suitable power
supply via the main connection block of
the vehicle (Fig. 30).
! The toilet must not be directly connected
in parallel to other consumers, otherwise
malfunctions or damage to the toilet
controller can occur (Fig. 31).
! A line fuse is not necessary as the toilet
is fused internally.
12 V DC
Battery
Fuse / main connection box
Toilette
CT 4000
Water pump
Do NOT connect for use of a
pressurised water pump!
Toilette
CT 4000
Water pump
+
-
+
-
+
-
+
-
12 V DC
Please find circuit diagrams in Chapt. 5,
annex !
Do not connect toilet to the power supply
directly in parallel with other consumers.
CAUTION!
